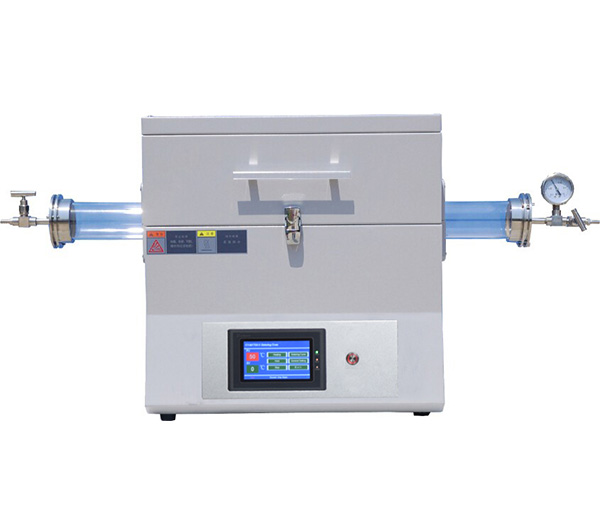

CY-O1200X Tube Furnace

    CY-O1200X tube furnace adopt with double layer steel structure with a max. working temperature of 1200℃ and built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy, It is special design for university,R & D institution ‘s metallic,nonmetallic and other compounds sintering, annealing, analysis and etc.

    It is widely used in

    1.CVD experiment

    2.Preparation of carbon nanotubes

    3.Growth of graphene

    4.Crystalline silicon substrate coating

    5.Diffusion welding for metal materials

    6.Heat treatment under the vacuum of atmosphere surroundings

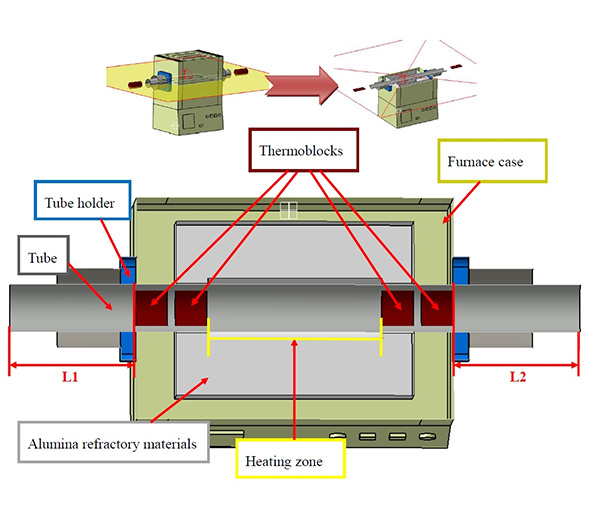

Furnace Structure1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving3.Equipped with double cooling fan, to make sure furnace body temperature low than 60℃
Model No.CY-O1200X

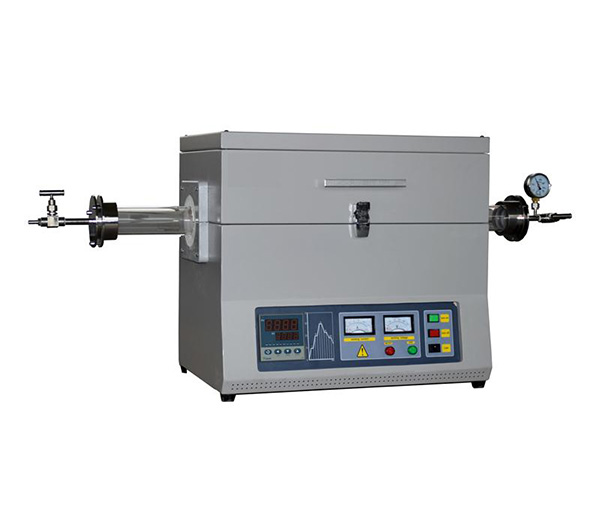

DisplayLED button controller or LCD touch panel( 5” &7” for your choice)
Limiting temperature1200℃
Working temperature≤1150℃
Heating rate0-20℃/min, adjustable
Heating zone length400mm
Heating zoneSingle zone
Max outer tube diameter50mm,60mm,80mm,100mm for choice
Tube length for use1000mm
Temperature accuracy± 1℃
Heating elementFe-Cr-Al alloy adopt by Mo
Thermal coupleK TYPE
Max Power2.5kw
Temperature control30 steps programmable PID control
Chamber materialAlumina fiber
Over-temperature alarmYes
Over-current alarmYes
Working voltage: 220V 50Hz, or as customized
