Laboratory Compact High Pressure Gas Tube Furnace (HIP) with Super alloy tube-CY-O1200S-HP Laboratory Compact High Pressure Gas Tube Furnace (HIP) with Super alloy tube-CY-O1200S-HP Laboratory Compact High Pressure Gas Tube Furnace (HIP) with Super alloy tube-CY-O1200S-HP

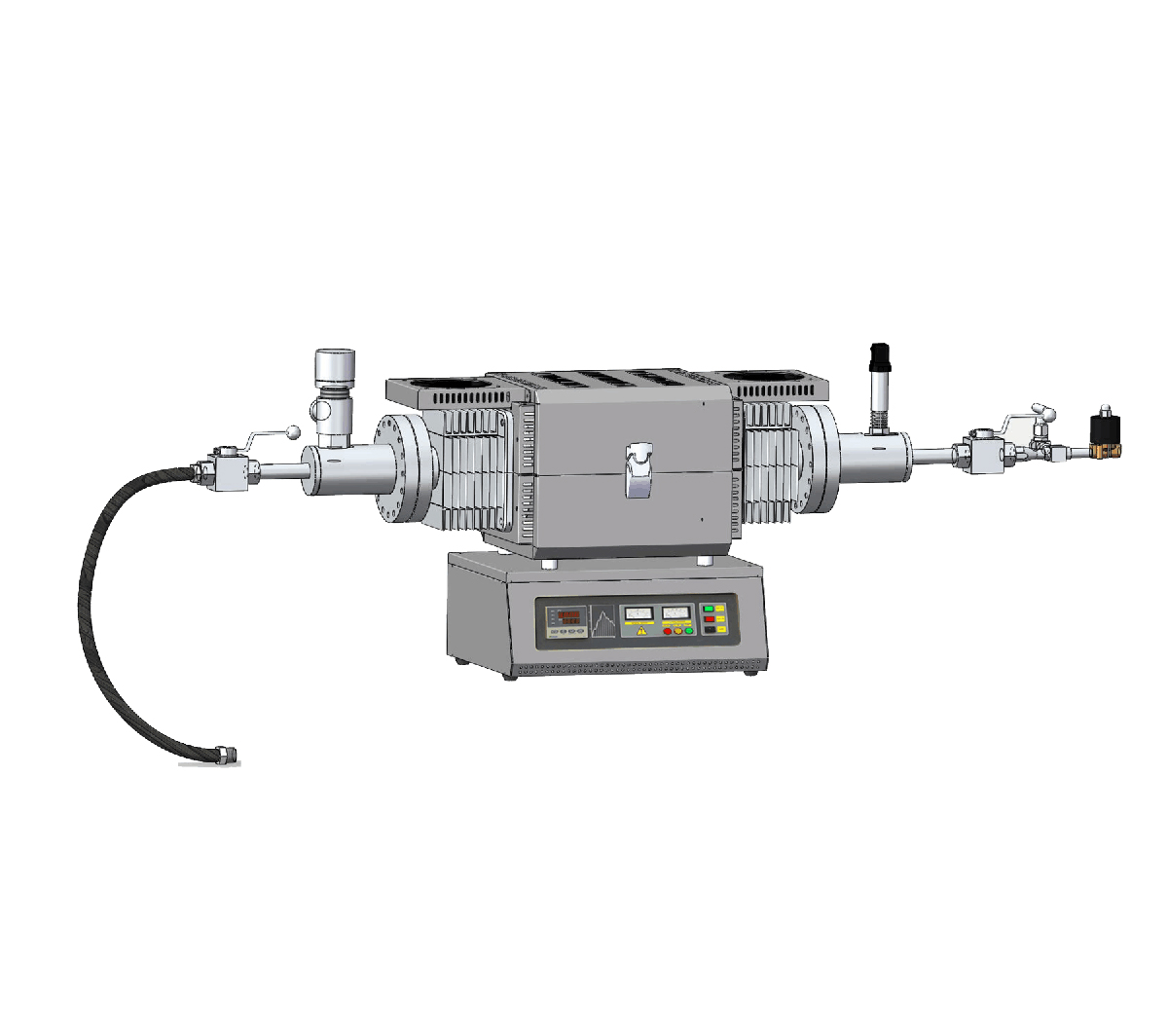

Laboratory Compact High Pressure Gas Tube Furnace (HIP) with Super alloy tube-CY-O1200S-HP

    Features

    1.PC and PID Programmable control, easy operation

    2.Over pressure &over temperature protective, make sure user’s safety

    3.Compact structure with mobile carrier, easy move and using.

    4.Super alloy tube,can bear 20MPa atmosphere pressure


Application:

  High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density sample’s heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.


Technical Parameters

Model No.

CY-O1200S-HP

Tube material

Ultra high temperature alloy

Tube diameter

Ф50mm

Tube length

650mm

Heating length

200mm

Constant heating zone

100mm

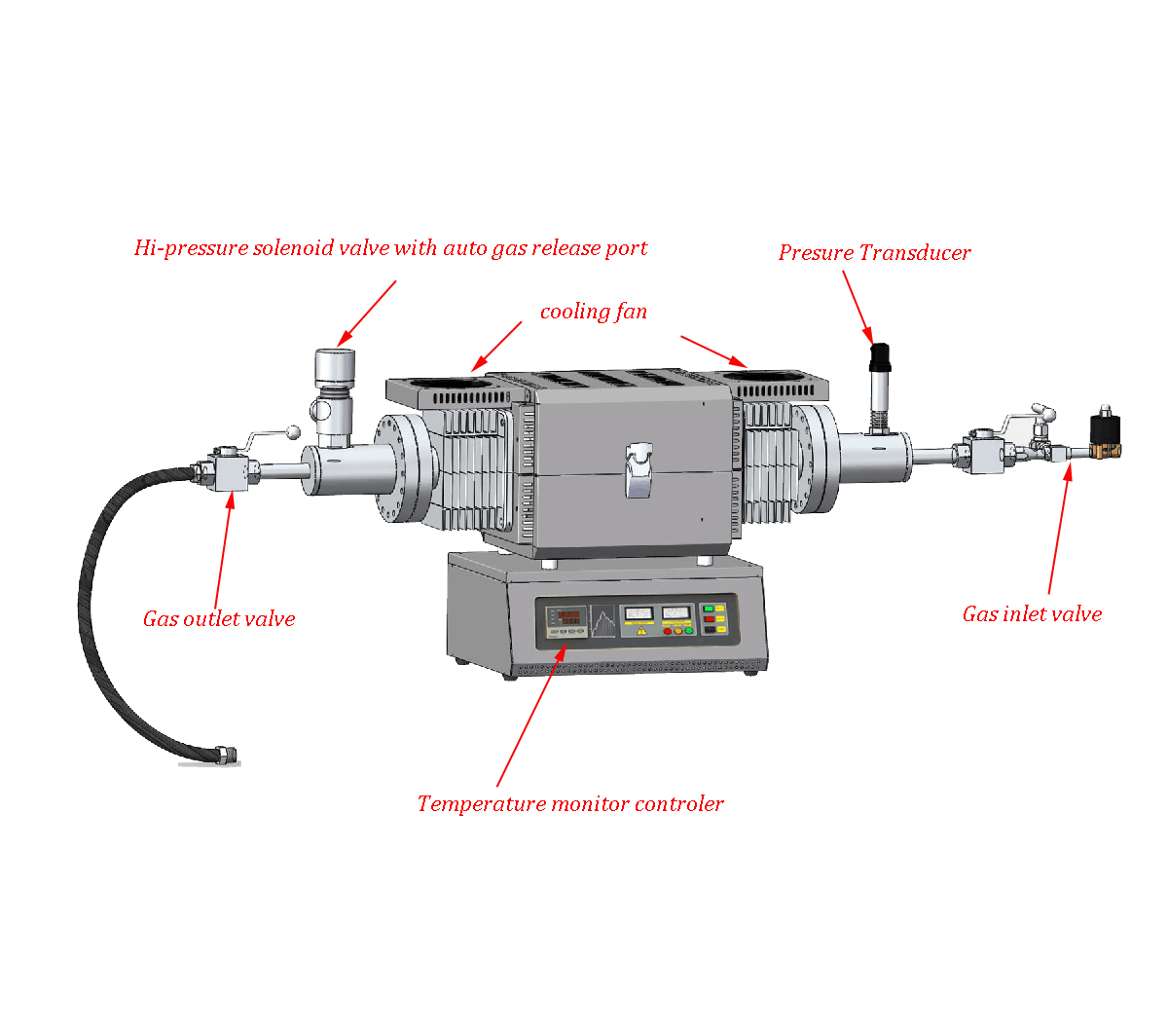

Sealing method

Pressure flange

Pressure measured

Semiconductor pressure gauge

Over-pressure protective

Safety relief valve

Pressure adjust

Manual and Auto adjustable

Over temperature alarm

Over-temperature power off

Working temperature

≦1100℃

Working pressure

≦20MPa @800℃
≦12MPa @900℃
≦6MPa @1000℃
≦4MPa @1100℃

Temper accuracy

±1℃

Temper control mode

AI-PID 30Programmable control

Display

High light LED Button Panel

Working gas

N2,Ar2,O2 and other non-corrosive gas

Power supply

AC220V 50Hz/60Hz

Warranty

12 month warranty with whole life technical supporting
