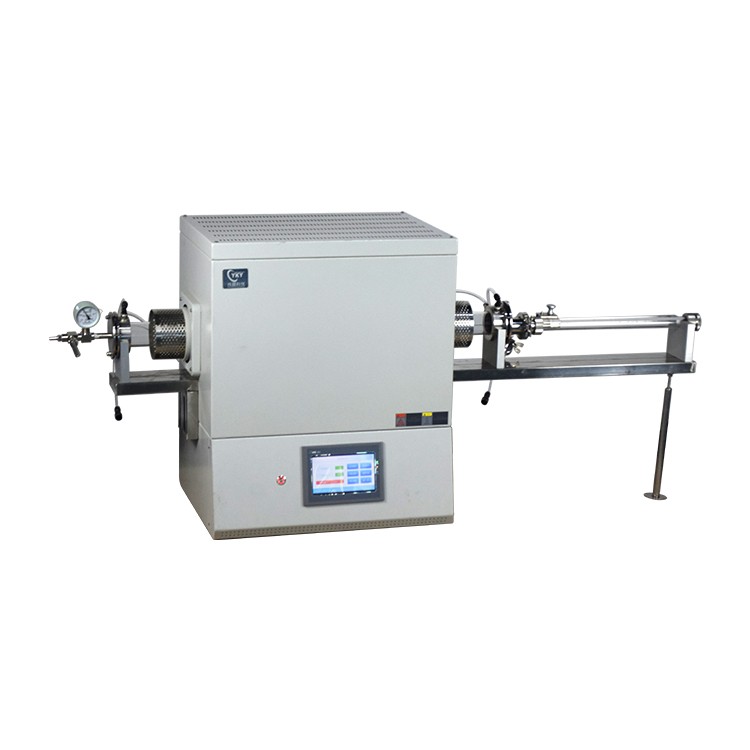

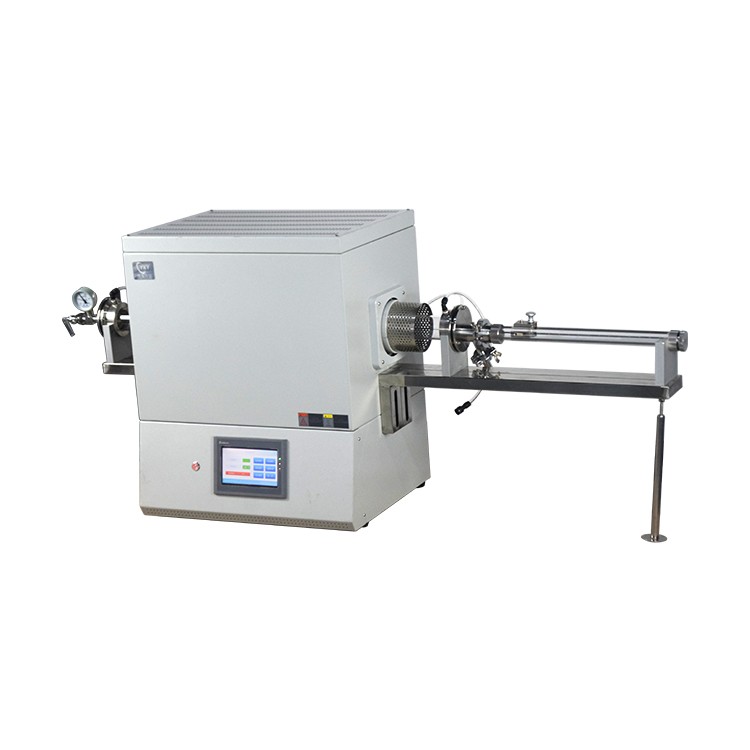

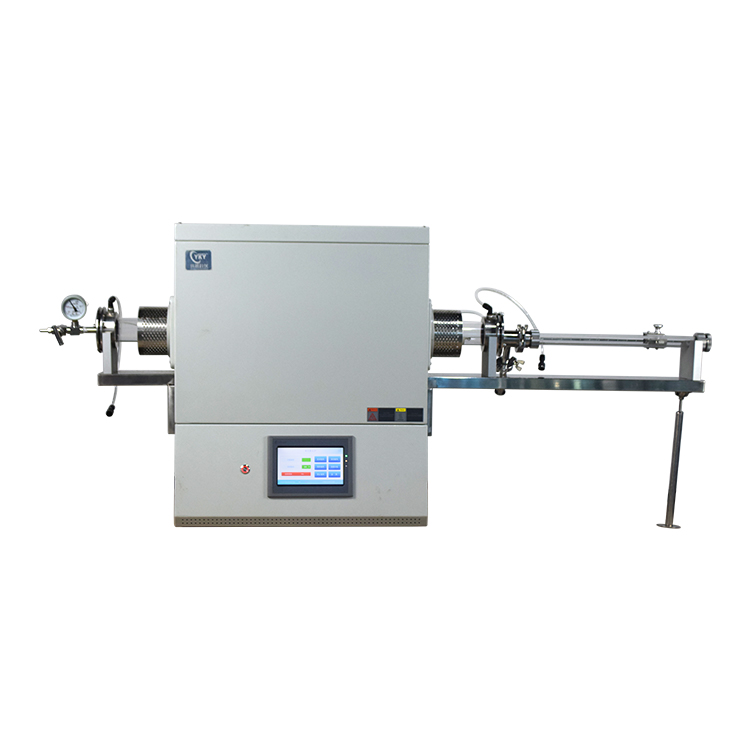

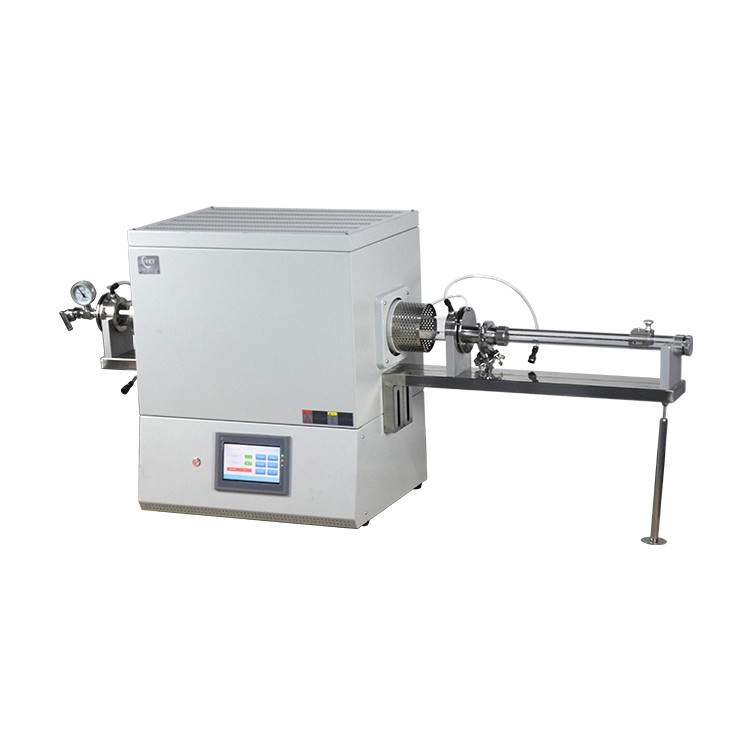

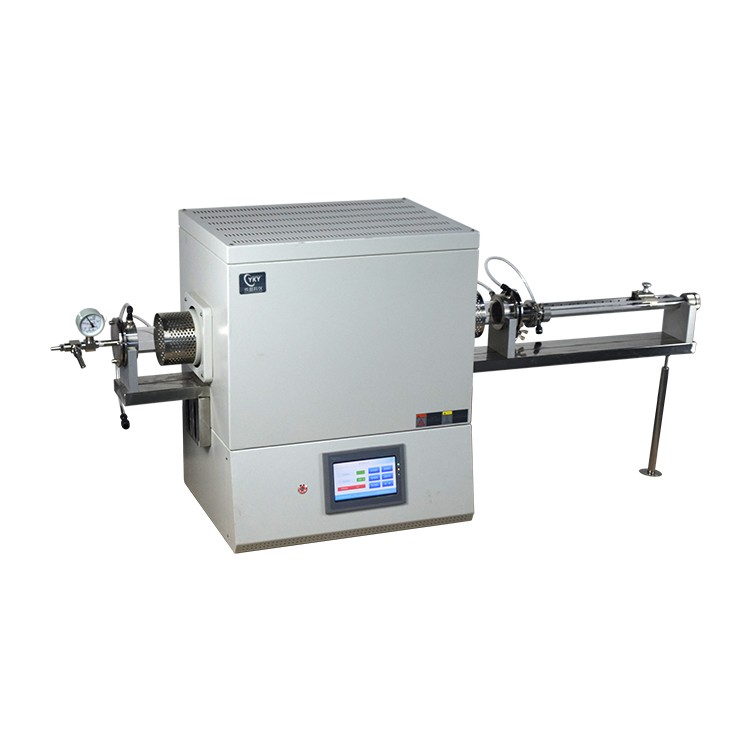

Double temperature tube furnace with magnetic push rod

Double temperature tube furnace with magnetic push rod

he dual temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight. Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

Inquire Now Next Product

The dual temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight. Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

Double temperature tube furnace technical parameter:

Item	Details
Supply voltage	AC220V, 50Hz
Maximum power	4KW
Heating rate	Maximum 20℃/min, recommended ≤10℃/min
Operating temperature	Maximum temperature≤1200℃; continuous working temperature≤1150℃
Heating temperature zone	Dual temperature zone 200mm+200mm
Furnace tube parameters	Length 1000mm O.D 60mm I.D 57mm
Temperature control accuracy	PID temperature control accuracy ±1℃
Thermocouple	K type thermocouple
Temperature control method	Separate temperature control in dual temperature zones AI-PID 30-segment process curve, can store multiple With overheating and broken couple protection
Furnace material	High purity alumina furnace
Vacuum interface	KF16
Air inlet	6.35 Card sleeve connector
Magnetic putter	Moveable length 500mm Can shift samples in two temperature zones To meet customer's heat treatment process Using magnetic coupling connection, Can ensure the vacuum of the furnace tube while pushing the sample
Dimensions	1300mm X 420mm X 550mm
