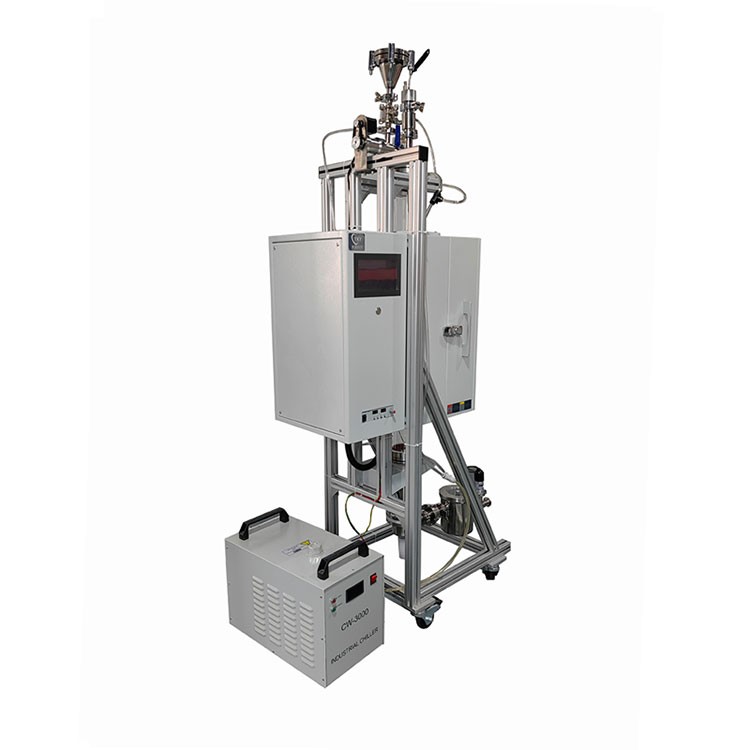

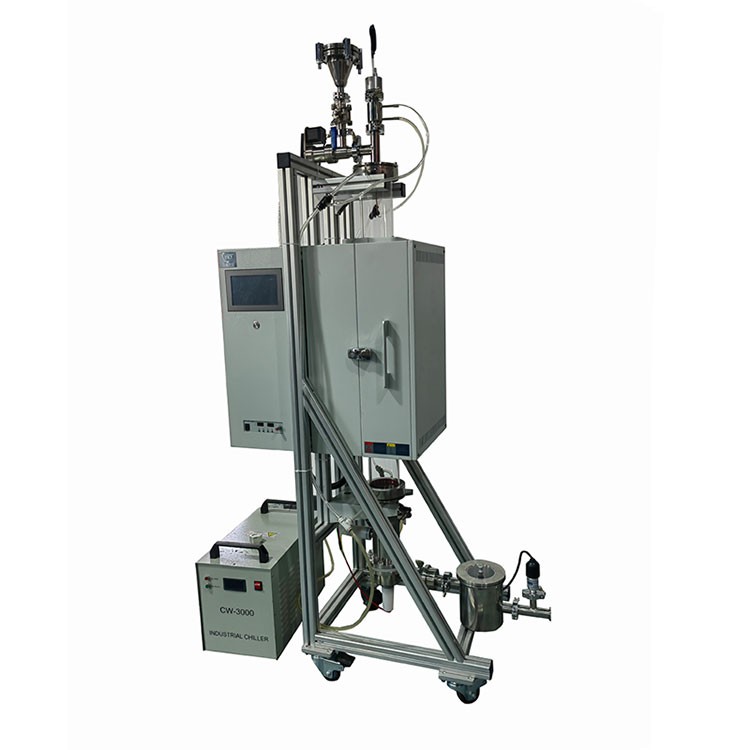

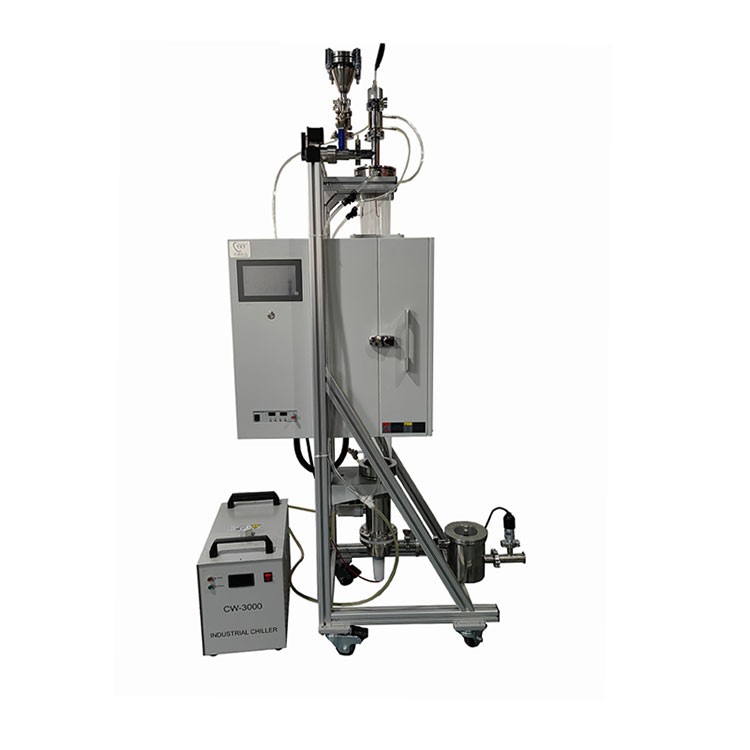

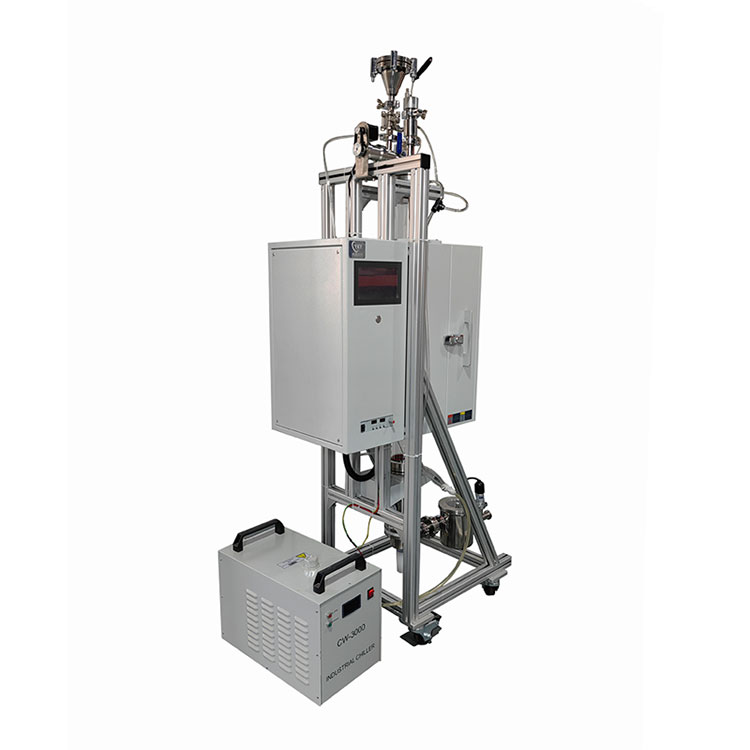

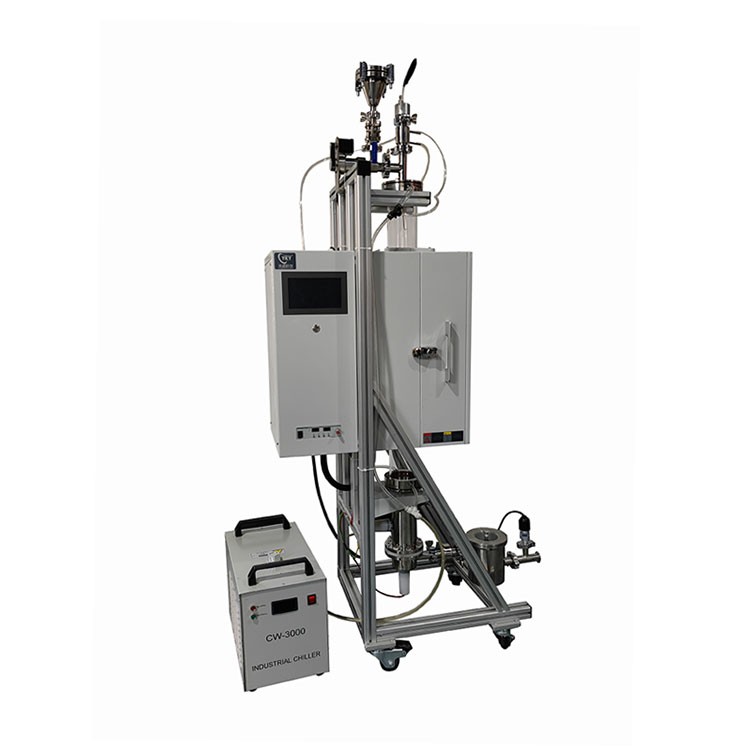

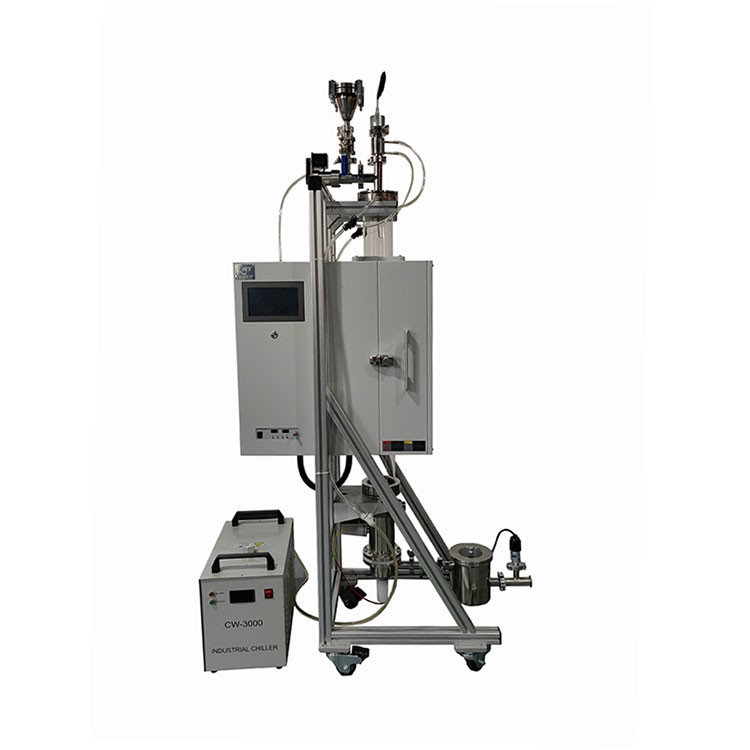

Ultrasonic atomization vertical single-zone tube furnace system

Ultrasonic atomization vertical single-zone tube furnace system

Ultrasonic atomization vertical single temperature zone tube furnace is a multifunctional synthesis system, which is aimed at the synthesis of various nanostructured oxides and the composite coating process of nanomaterials. This instrument consists of three main modules: ultrasonic atomization device, 1200 ℃ single temperature zone vertical tube furnace and electrostatic collection device. It can be widely used in nanomaterial preparation, electrode material coating and composite, etc.

Inquire Now Next Product

tube furnace technical parameter:

Power supply	Single Phase AC 220V, 50/60 Hz
Ultrasonic Generator and Nozzle	Max. power: 30W Ultrasonic frequency: 50KHz Suitable for liquid viscosity: ≦30cps Particle size: 20-25um Spray flow rate: 0.01-20ml/min Acceptable suspension particle size: ≦10um Acceptable suspension solid content: ≦30% Spraying width: 2-20mm Diversion air pressure: 0.05Mpa
Continuous Temperature	Max. 1100℃
Max. Heating Rate	≤ 20℃/min.
Temperature Accuracy	+/- 1℃
Tube Size and Materials	One 1000mm length quartz tube is included OD: 100 mm, ID. 95 mm Foam ceramic blocks with alumina coating are included, which is hanged on top of flange to protect O-ring damaged by heat radiation
Heating Element	Alloy resistance wire
Heating Zone Length	400mm
Constant Temperature Zone	200 mm
Temperature Controller	30 programmable segments for precise control of heating rate, cooling rate and dwell time. Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. Over temperature protection and alarm allows for operation without attendant(s). Temperature control accuracy: +/-1℃
Vacuum Sealing Flange	Two stainless steel flanges with vacuum gauge and valves included Gas outlet (vacuum port ) on top Gas inlet on bottom
Powder collection device	At the bottom
Vacuum Level	10E-2 Torr by mechanical vacuum pump Pumping speed: 1.1L/s
Net Weight	About 80 kg

Nanopowder collector	High voltage power supply	Output voltage: 0-30000V, adjustable
	High voltage power supply	Output current: ≤1mA
	Tubular electrostatic collector	The positive and negative plates are installed in the collector
Continuous liquid feeder	High precision peristaltic pump	Speed range: 0.01-600rpm Flow range: 0.0008ml-2400ml/Min
