Laboratory High Temperature High Pressure Tube Furnace-CY-HS-85IT Laboratory High Temperature High Pressure Tube Furnace-CY-HS-85IT

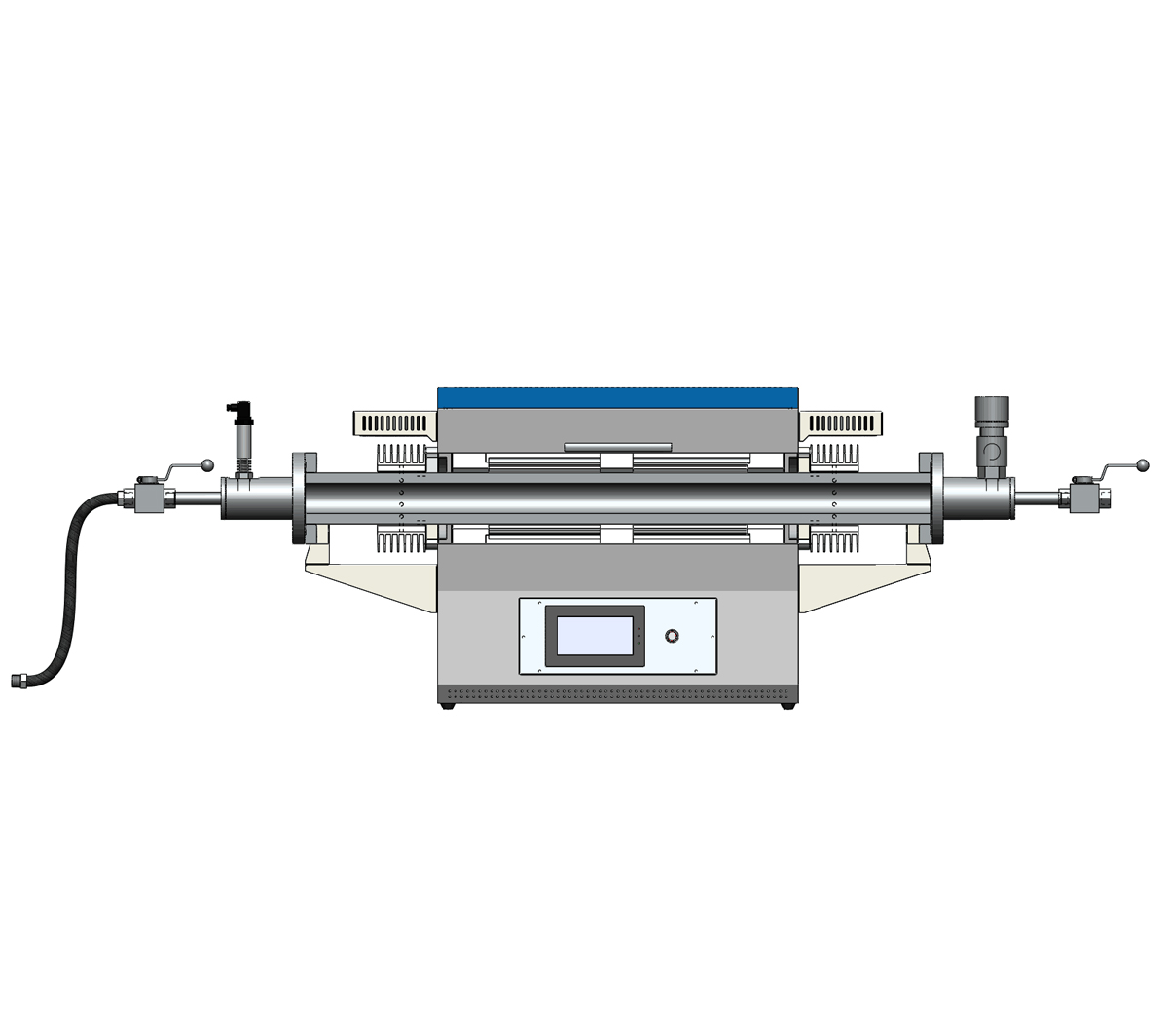

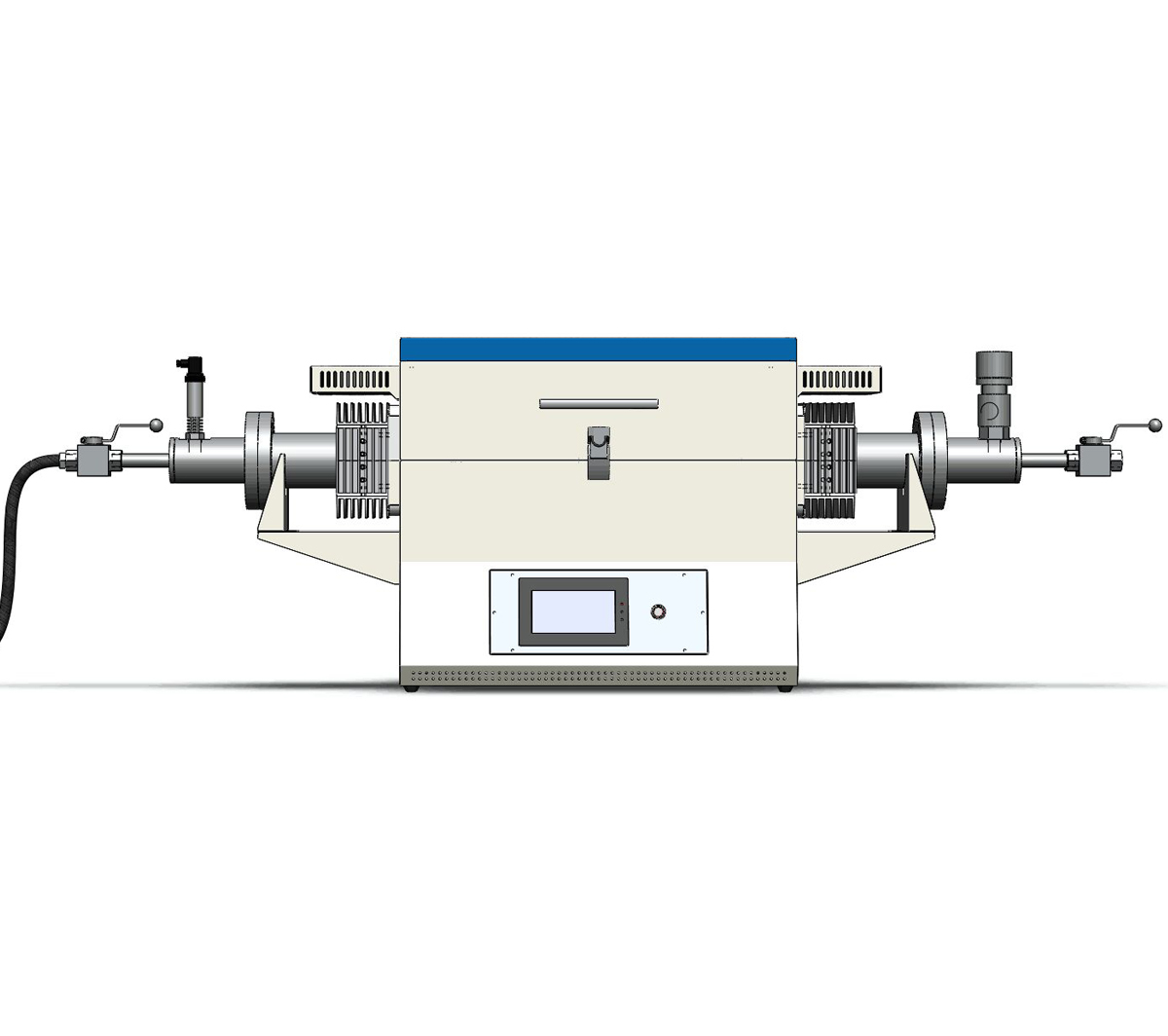

Laboratory High Temperature High Pressure Tube Furnace-CY-HS-85IT

    Features

    1.PC and PID Programmable control, easy operation

    2.Over pressure &over temperature protective, make sure user’s safety

    3.Compact structure with mobile carrier, easy move and using.

    4.Super alloy tube,can bear 20MPa atmosphere pressure


Application:

High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density sample’s heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.


Model No.

CY-HS-85IT

Tube material

Ultrahigh temperature alloy

Tube diameter

Ф50mm

Tube length

1000mm

Heating length

440mm

Constant heating zone

200mm

Sealing method

Pressure flange

Pressure measured

Semiconductor pressure gauge

Over-pressure protective

Safety relief valve

Pressure adjust

Manual and Auto adjustable

Over temperature alarm

Over-temperature power off

Working temperature

≦1100℃

Working pressure

≦20MPa @800℃
≦12MPa @900℃
≦6MPa @1000℃
≦4MPa @1100℃

Temper accuracy

±1℃

Temper control mode

AI-PID 30Programmable control

Display

7” LCD Touch Panel

Working gas

N2,Ar2,O2 and other non-corrosive gas

Power supply

AC110V/AC220V 50Hz/60Hz

Warranty

12 month warranty with whole life technical supporting
