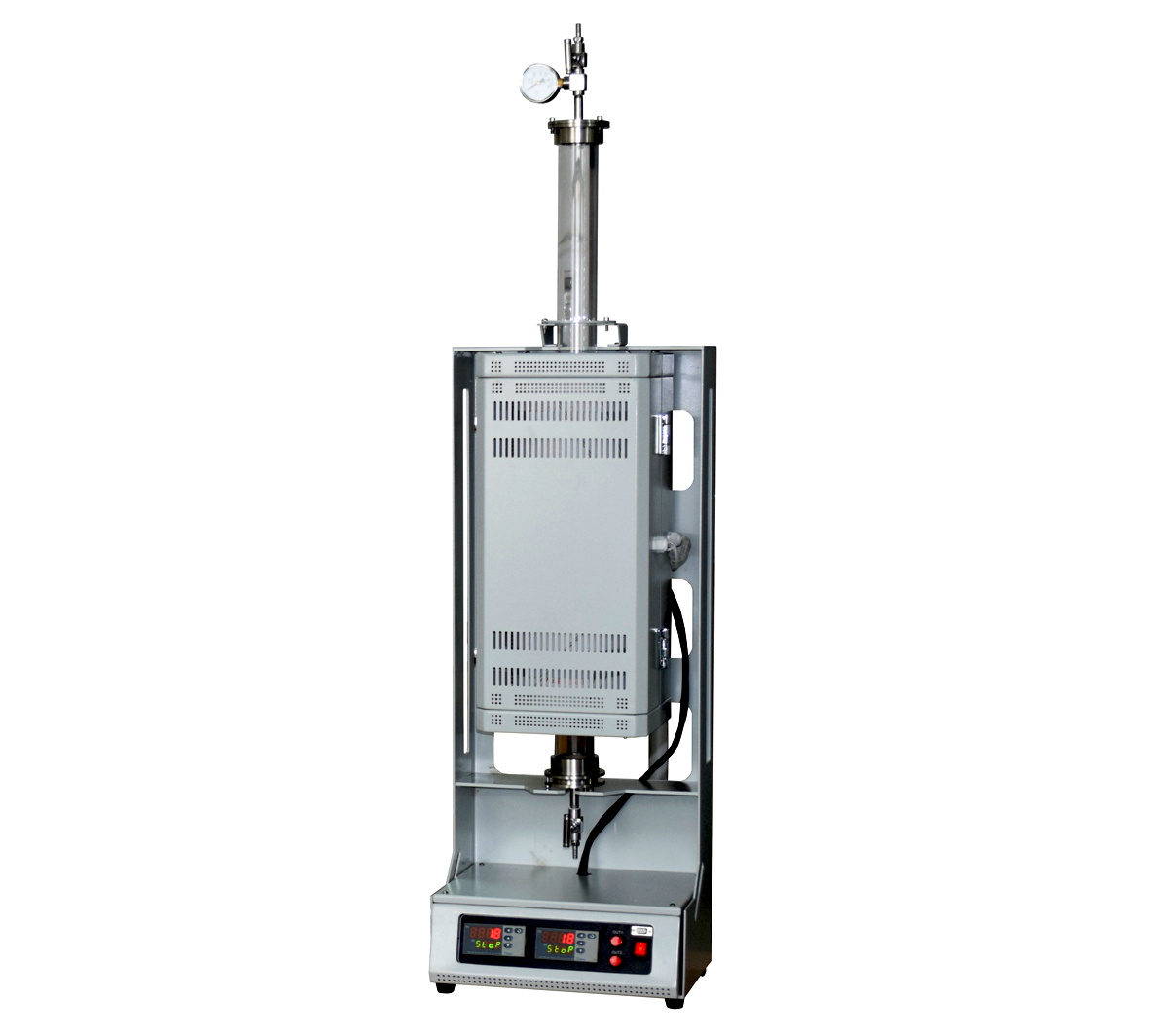

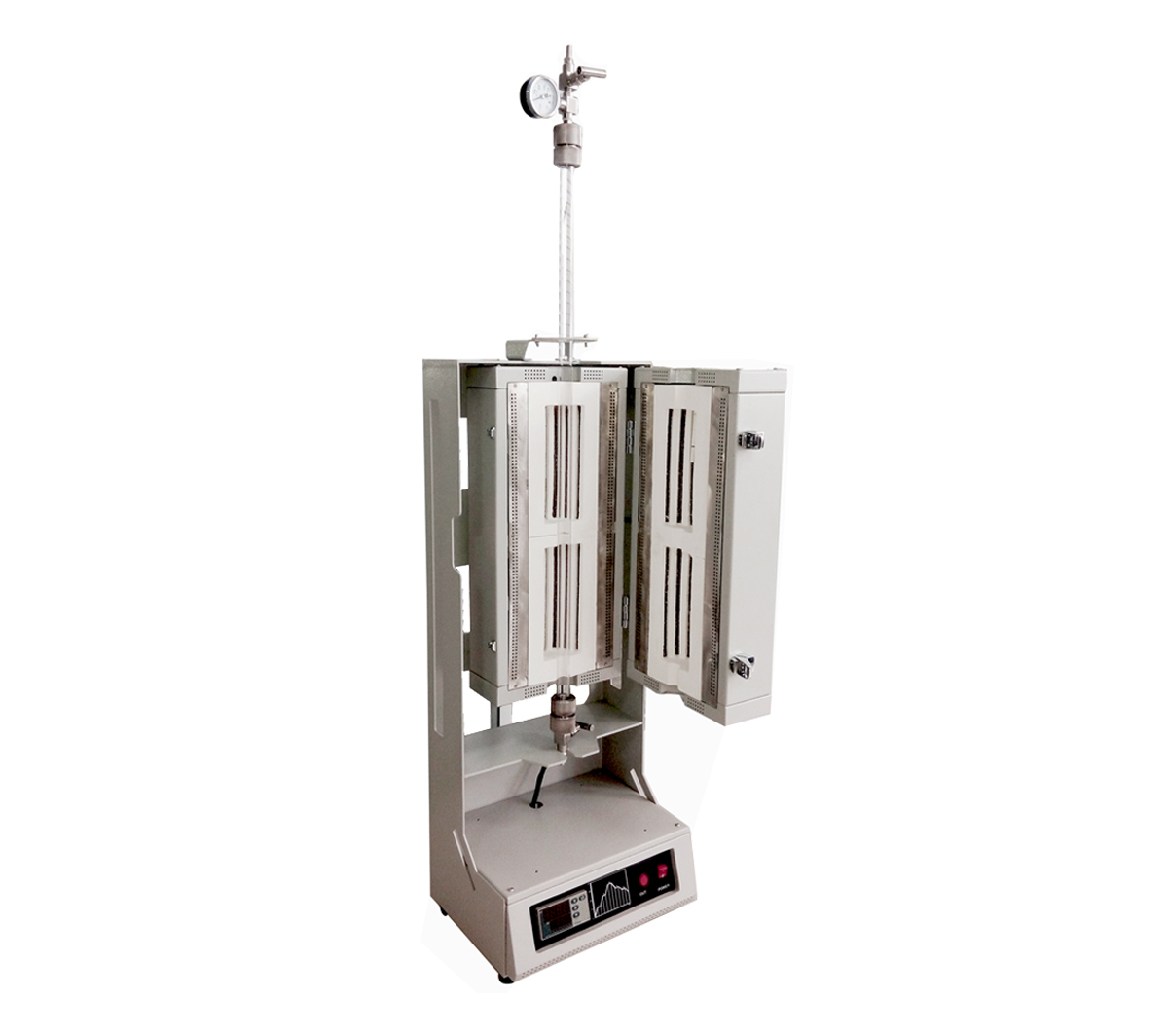

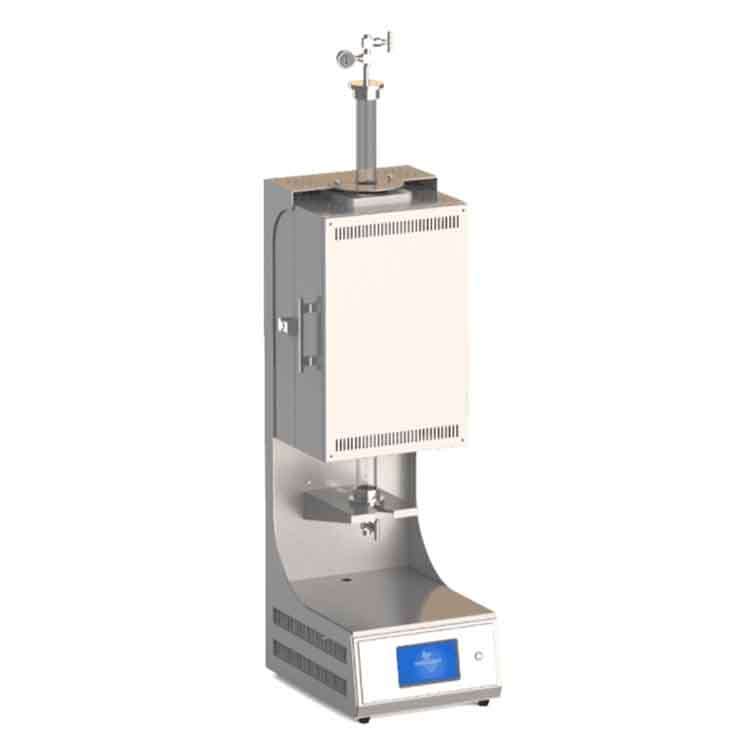

The default heating zone of vertical tube furnace is one zone. Multi-heating zone can also be customized according to customer needs. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The lower flange of the furnace tube has a vacuum interface, and the upper flange has a 1/4 inch gas inlet port and a pressure gauge, which can be used to control the atmosphere in the furnace tube. The furnace chamber adopts open design for easy installation of the furnace tube. At the same time, the tube furnace is operated by HD true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.
Vertical tube furnace application range:
This tube furnace is mainly used for: various CVD experiments, atmosphere sintering, high temperature treatment; especially suitable for the preparation of oxides, sulfides.
Vertical tube furnace technical parameters:
Model | CY-O1200-50I-T-V |
Furnace tube material | High purity quartz |
Furnace tube diameter | 50mm |
Furnace tube length | 1000mm |
Furnace chamber length | 440mm |
Heating zone length | 400mm |
Constant temperature zone | 200mm |
Operating temperature | 0～1100℃ |
Temperature control accuracy | ±1℃ |
Temperature control mode | 30 or 50 segment program temperature control |
Display mode | LCD touch screen |
Sealing method | 304 stainless steel vacuum flange |
Flange interface | 1/4" ferrule connector (Ø8 pagoda-shape connector) |
Vacuum | 4.4E-3Pa |
Power supply | AC:220V 50/60Hz |
