Rocking Tube Furnace with Quartz Tube & Vacuum Flange-CY-GSL-1100X-SK

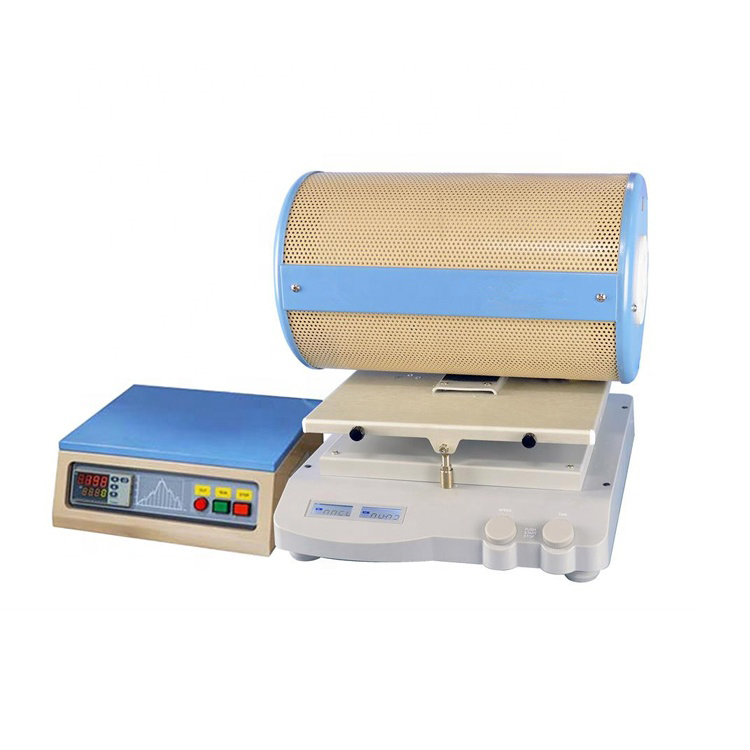

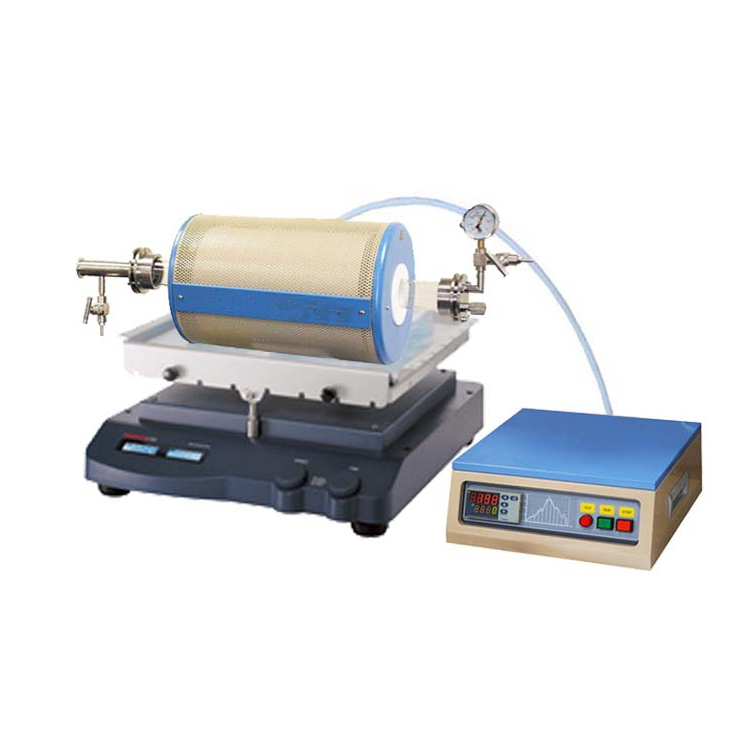

    CY- GSL-1100X-SK is a compact rocking quartz tube furnace (1~2" optional), which is designed to stir sample during heating or melting to get a more uniform reaction. The rocking stage can set rocking frequency and time for automatically running. It is useful tool for preparation thermoelectric material and growing 2D crystals.

CY- GSL-1100X-SK is a compact rocking quartz tube furnace (1~2" optional), which is designed to stir sample during heating or melting to get a more uniform reaction. The rocking stage can set rocking frequency and time for automatically running. It is useful tool for preparation thermoelectric material and growing 2D crystals.

Rocking Tube Furnace technical parameters:

Furnace Structure

  • Energy saving high purity  Al2O3 fibrous insulation liner

  • Stainless steel shells with adjustable height

Power

  • AC 110V single phase or AC 220V single phase

  • Please  select the tube size and the rated voltage

  • 1.2KW

Working Temperature

  • Max. Temperature: 1100 (< 1 hr)

  • Continuous working temperature: 1000

  • Max. Heating Rate: 10 /min

Temperature Distribution

Rocking Tube Furnace

Heating Zone

  • Heating Zone Length: 12" (300mm)

  • Constant Temperature Zone:  3.1" (80mm)

Temperature Controller

  • PID automatic control and auto-tune function.

  • 30 programmable segments for precise thermal processing.

  • Built-in protection for the over-heated and broken thermocouple.

  • Temperature Accuracy: +/- 1.

  • K type thermocouple.

Processing Tube

  • 1" .D x 0.87" I.D x 24" L Quartz tube or 2.0" O.D x 1.85" I.D  x 24" L-quartz tube

  • Please select the tube size and the rated voltage

  • Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center.

Vacuum Flange

Two choices of stainless steel flange with vacuum gauge and valves

  • 2" default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port

  • 1" flange has no thermocouple insert

Fitting Ports

  • Both flanges will come standard with 3/8" barbed hose fittings

  • In order to increase the throughput and achieve a high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter. (You can order it at CYKY)

  • For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male Connector (You can order it at CYKY).

Vacuum Pressure (optional)

  • 50 mtorr can be achieved by mechanical pump

  • 10^-5 torr can be reached by molecular pump

  • You can order a vacuum pump at CYKY.

Pressure Measurement

  • Mechanical Vacuum Gauge (included as standard accessory), which measures within a pressure range of -0.1 to  0.15Mpa.

Rocking  Station

  • DC motor, 40W

  • LCD digital display with adjustable speed from 10 - 70 RPM

  • Rocking angle:  9º max.

  • Timer: 1-1199min or continuous running

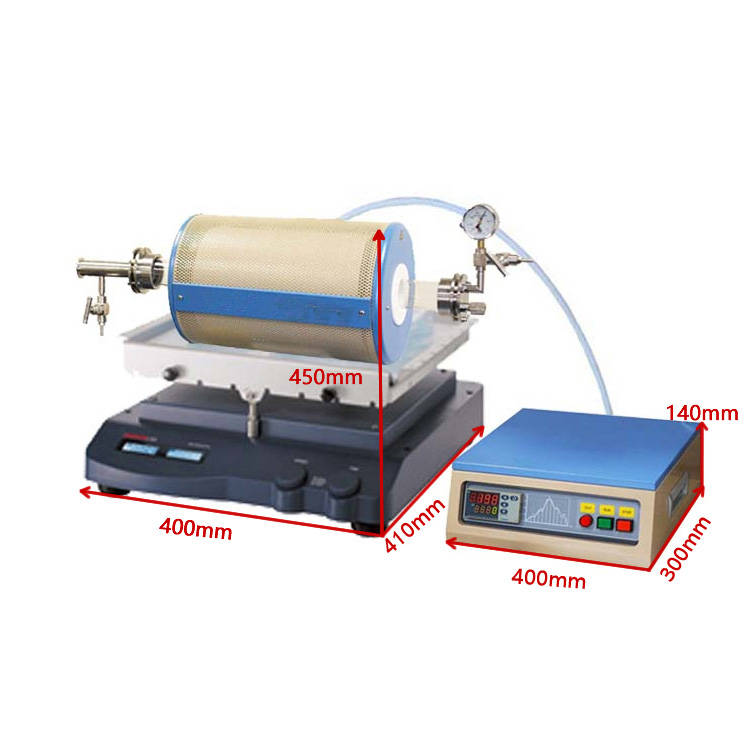

Dimension


Shipping Weight

100 lbs

Warranty

One-year limited warranty with lifetime support (Consumable parts such   as processing tubes, and O-rings are not covered by the warranty)

Compliance

CE Certified
