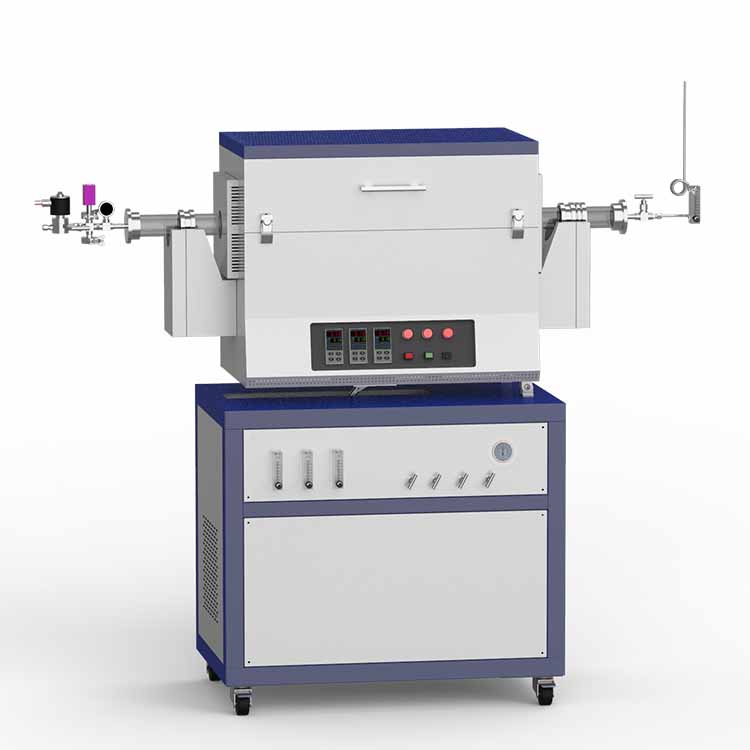

1200℃ three-heating zone rotary tube furnace CY-O1200-60III-C-RO

1200℃ three-heating zone rotary tube furnace CY-O1200-60III-C-RO

    1200℃ open type three-heating zone rotaty tube furnace uses high-purity quartz to make variable-diameter quartz tube, which is specially designed for powder processing. The rotating device adopts friction transmission, and the inclination angle (0-15°) can be adjusted arbitrarily.

1200℃ open type three-heating zone rotaty tube furnace uses high-purity quartz to make variable-diameter quartz tube, which is specially designed for powder processing. The rotating device adopts friction transmission, and the inclination angle (0-15°) can be adjusted arbitrarily. At the same time, the tube furnace has three heating zones with independent temperature control. Each heating zone can edit 30 sections of temperature rise and fall program, and the equipment also has overheating and break protection functions. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. If the experiment requires the use of flammable gas, the tube furnace can be equipped with a manual ignition device to complete the exhaust gas treatment to ensure the safety and environmental protection of the experiment.

1200℃ three-heating zone rotary tube furnace application range:

Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.

1200℃ three-heating zone rotary tube furnace technical parameters:

Model

CY-O1200-60III-C-RO

Max power

4.5kw

Furnace tube material

High purity quartz

Furnace tube diameter

60mm at both ends, 100mm in the middle

Furnace tube length

1400mm

Furnace chamber length

600mm

Heating zone length

200mm+200mm+200mm

Operating temperature

01100

Temperature control accuracy

±1

Temperature control mode

30 or 50 segment program temperature control

Display mode

highlight digital tube display

Sealing method

304 stainless steel vacuum flange

Flange interface

1/4" ferrule connector (Ø8 pagoda-shape connector)

Vacuum

4.4E-3Pa

Power supply

AC:220V   50/60Hz

Angle of inclination

0~15°

Rotate speed

0~20 rpm
