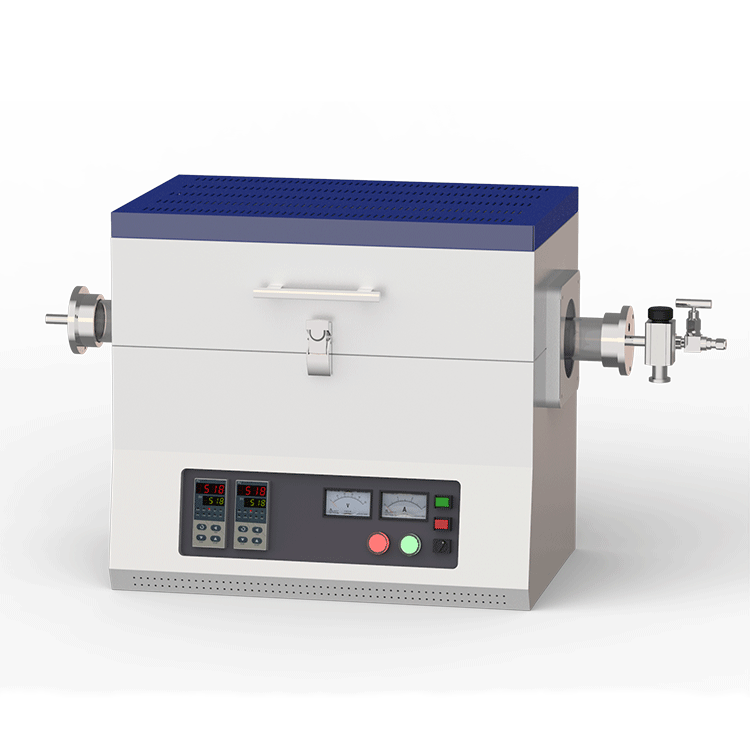

Dual-heating zone tube furnace CY-O1200-50II-C

Dual-heating zone tube furnace CY-O1200-50II-C

    Dual-heating zone tube furnace uses high-quality electric furnace wire as heating element, the maximum heating temperature is 1200℃, and the diameter of the quartz furnace tube is 50 mm. If the customer needs, can contact the technician to customize the larger diameter furnace tube.

This tube furnace has two heating zones, and the heating zone length each section can also be customized by contacting a technician. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. The instrument adopts LED highlight digital tube display and push-button operation. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

Dual-heating zone tube furnace application range:

Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.

Dual-heating zone tube furnace technical parameters:

Model

CY-O1200-50II-C

Furnace tube material

High purity quartz

Furnace tube diameter

50mm

Furnace tube length

1000mm

Furnace chamber length

440mm

Heating zone length

200+200mm

Operating temperature

01100

Temperature control accuracy

±1

Temperature control mode

30 or 50 segment program temperature control

Display mode

LED (highlight digital tube display)

Sealing method

304 stainless steel vacuum flange

Flange interface

1/4" ferrule connector (Ø8 pagoda-shape connector)

Vacuum

4.4E-3Pa

Power supply

AC:220V 50/60Hz

Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will improve and modify any information on the website from time to time without prior notice.
