321high vacuum evaporation coater

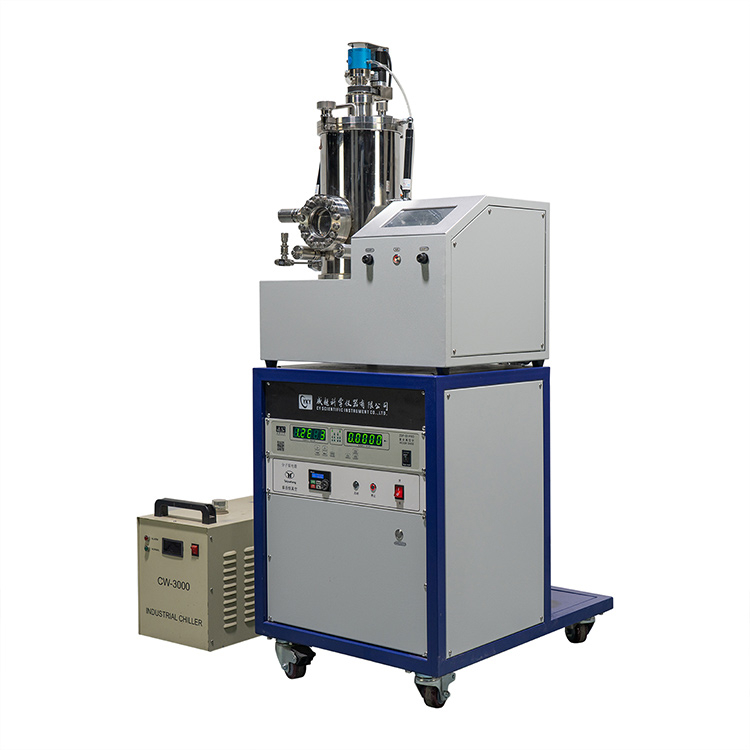

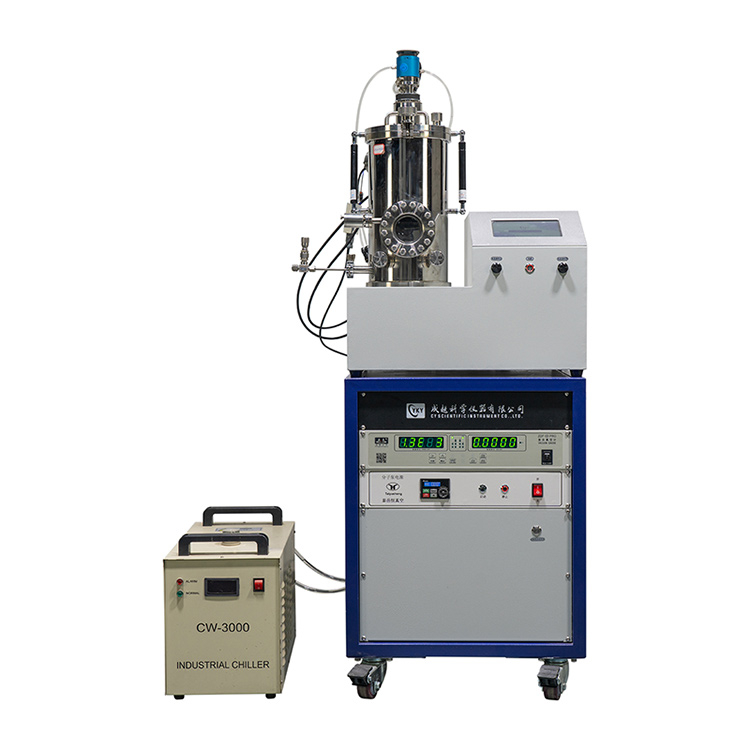

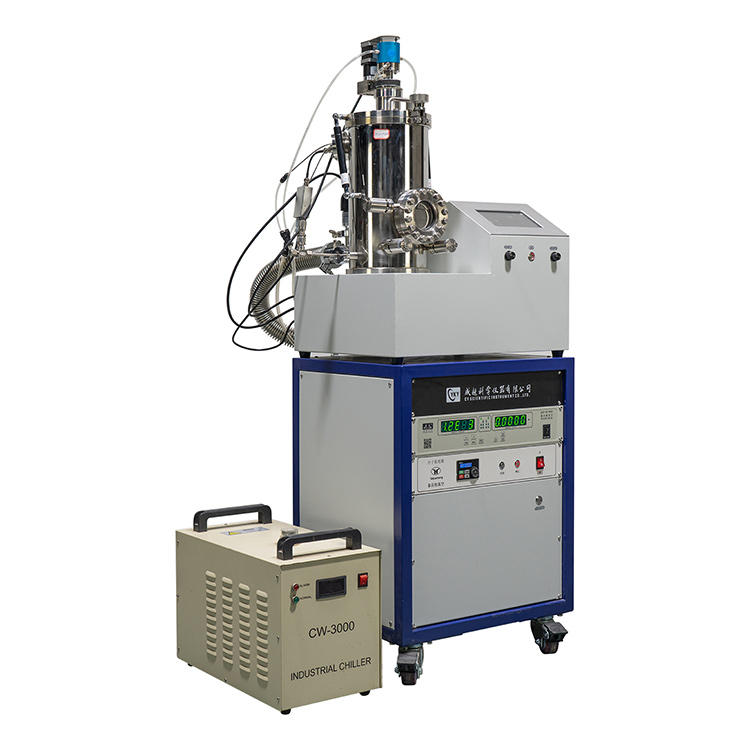

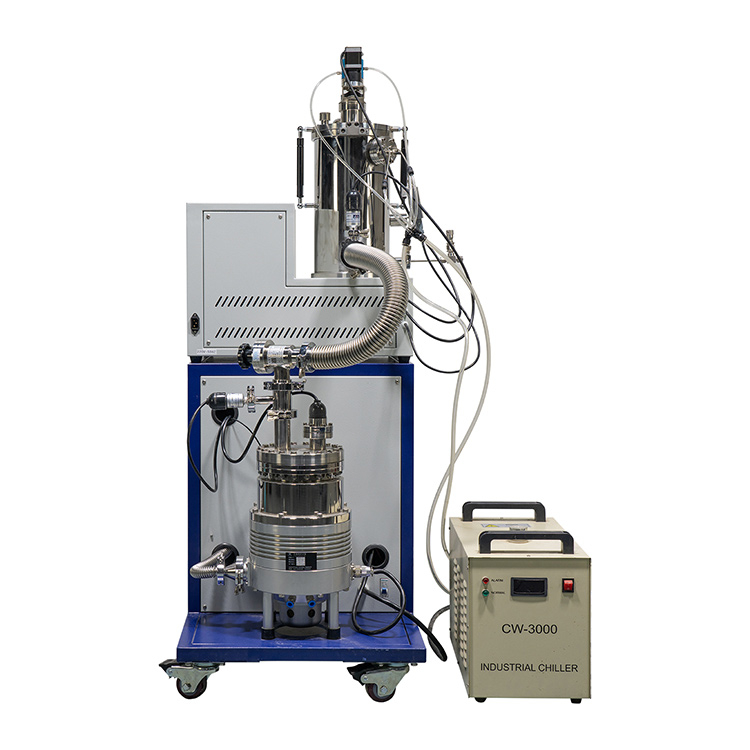

high vacuum evaporation coater

    high-vacuum evaporation coater with two sources, tungsten filament basket (or tungsten boat) is used as the evaporation source, and distance between sample table and evaporation source is adjustable.

high-vacuum evaporation coater with two sources, tungsten filament basket (or tungsten boat) is used as the evaporation source, and distance between sample table and evaporation source is adjustable. The instrument can stably evaporate metals and some organics. High-vacuum stainless steel chamber is adopted, which has good sealing performance and excellent vacuum performance. The chamber is equipped with an observation window, so the coating process is visible. Ultimate vacuum 10E-5Pa with molecular pump system, effectively improve the coating quality, and can meet the vacuum environment required for most evaporation coating experiments.

high vacuum evaporation coater

high vacuum evaporation coater Technical parameters:

Input   power

AC   220V, single phase, 50Hz

Evaporation   current

100A

Electrode   voltage

10V

Evaporation   source

Quantity: 2

Tungsten   filament basket ×2 pcs, tungsten boat   ×2 pcs

Evaporator   baffle

Yes

Sample   holder

Top setting

Diameter: φ65 mm

Rotating   speed: 0-20 rpm

The   distance between sample holder and evaporation source is adjustable

Vacuum   chamber

Inner   wall processing: electrolytic polishing

Chamber   dimension: ~φ180mm×H210mm

Chamber material: 304 stainless steel

Opening mode: top open

Temperature   measurement

B type thermocouple

Display screen

7-inch touch screen

Current   regulation

Touch screen setting, range 0~100A

Vacuum required

Rotary vane pump or molecular pump   group can be selected as required. (additional charge)

Extraction interface

KF25

Inlet interface

Diameter 6mm round hole fine tuning   valve

Film thickness monitor

Accuracy: 0.1Ã

Measurement speed: 100mS-1S adjustable

Measurement range: 500 000Ã (Aluminum)

Standard sensor crystal: 6MHz

high vacuum evaporation coater video:
