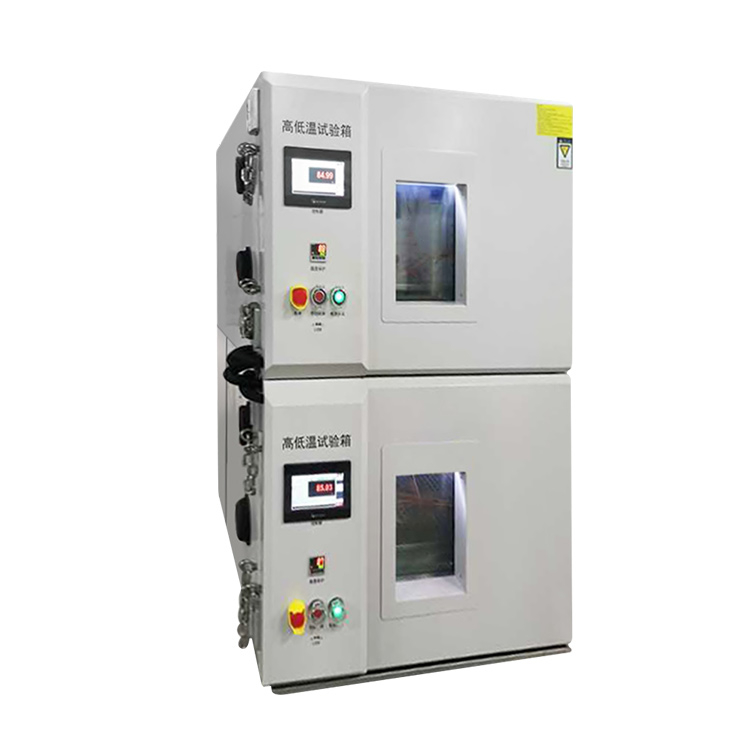

High and low temperature explosion-proof test box (double layer)

Internal   box size

500x500x500mm   (width x deep x high)

contour   size of the unit

680x750x1375mm   (W x depth x H)

Internal   box material

SUS201   Stainless steel plate, 1.2mm thick and affixed with iron fluorine dragon

External   box material

1.5mm   thick cold-rolled steel sheet baking paint treatment

Observation   window

250x250mm   two layers of tempered glass with stainless steel mesh

Exhaust   port

Is   100mm in diameter, located at the back side of the box

Pressure   discharge mouth

The   opening size is 200x200mm, located at the back of the box. When the sample   explodes, the pressure relief port opens to remove the pressure

Box   door

Single   door left open, the side of the door is equipped with an explosion-proof   chain

Instrument connection

There is a test hole with a diameter of   50mm on the left side of the equipment, which is easy to put into the   acquisition line of temperature, voltage and current

Equipment   moving

There   are four universal direction casters at the bottom of the device, which can   move freely

Illuminator

Easy   to observe the state of the tested sample

Test   box

Two

Weight   of equipment

65Kg

Source

AC220V

Power

200W
