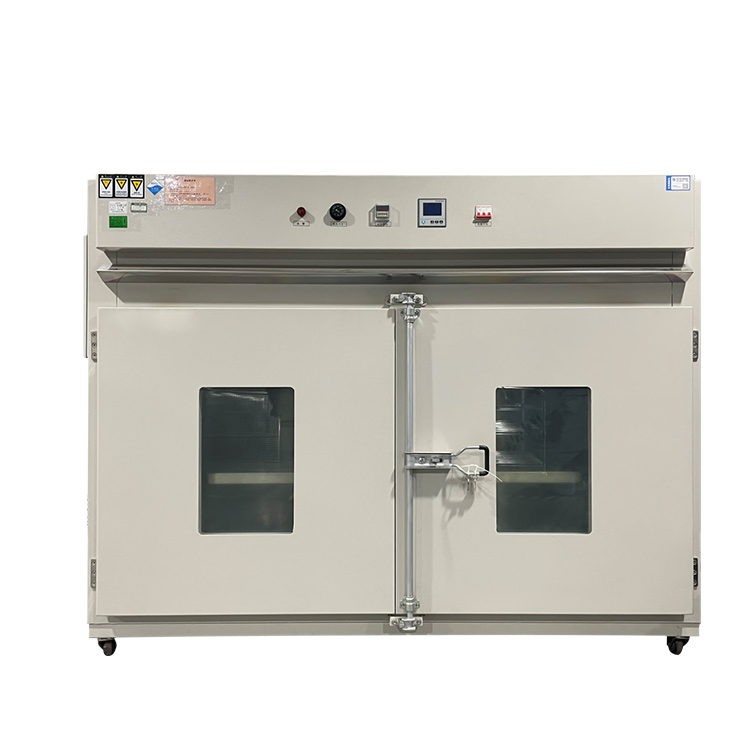

High temperature aging chamber
Suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant humid heat, high and low temperature alternating humid heat test. Can change the studio size and function according to user requirements; Block type box body, beautiful appearance and generous; Scientific duct design, can meet the needs of different customers; Using touch screen,PLC program controller
Suitable for the whole machine or large parts of low temperature, high temperature, high and low temperature change, constant humid heat, high and low temperature alternating humid heat test. Can change the studio size and function according to user requirements; Block type box body, beautiful appearance and generous; Scientific duct design, can meet the needs of different customers; Using touch screen,PLC program controller
High temperature aging room product features:
New modeling design, high appearance texture level, system extraction technology essence design and manufacture balanced temperature and humidity control system (BTHC), control SSR by PID, so that the heating and humidification amount of the system is equal to the thermal apparent loss, so it can be used stably for a long time; The use of full capillary, automatic load capacity adjustment system technology, more stable and reliable than the expansion valve system, temperature and humidity control is accurate, rising and cooling speed is rapid, stable, uniform, for users to save valuable time.
Technical parameters:
Temperature range | -70℃~+100℃ (no load -70℃, with load -55℃ center point) |
Temperature deviation | ±2℃ |
Temperature uniformity | ≤2℃ |
Temperature fluctuation | ±5℃ |
Volume | 1m³ |
Chamber size | 1000mm*1000mm*1000mm |
Heating rate | ≥1℃/min (Load 10KG aluminum ingot, 200W caloric value, -55℃~+85℃ nonlinear temperature change rate ≥1℃/min) |
Cooling rate | ≥0.5℃/min (Load 10KG aluminum ingot, 200W caloric value, +85℃~-55℃ nonlinear temperature change rate ≥1℃/min) |
