    Two Zones CSS Furnace for Rapid Thermal Processing upto 5" Dia Wafer at Max.800°C - OTF-1200X-RTP-II-5

Basic Info


  • Model NO.: CY-OTF-1200X-RTP-II-5

  • Structure: Desktop

  • Certification: CE, TUV

  • Type: Heating Type

  • Temperature Controller: Digital

  • Thermocouple: K Type

  • Trademark: CY

  • Specification: OD. 200mm

  • HS Code: 85141090

  • Customized: Customized

  • Material: Alloy

  • Application: School

  • Vacuum Flange: Stainless Steel

  • Working Temperature: 800c

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China


Product Description


Two Zones CSS Furnace for Rapid Thermal Processing upto 5" Dia Wafer at Max.800°C - OTF-1200X-RTP-II-5
 Introduction

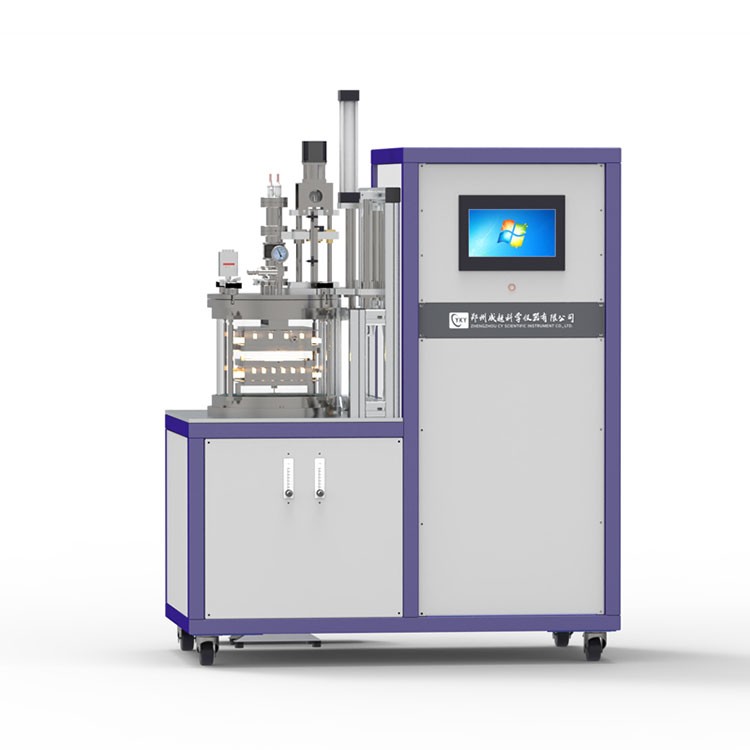

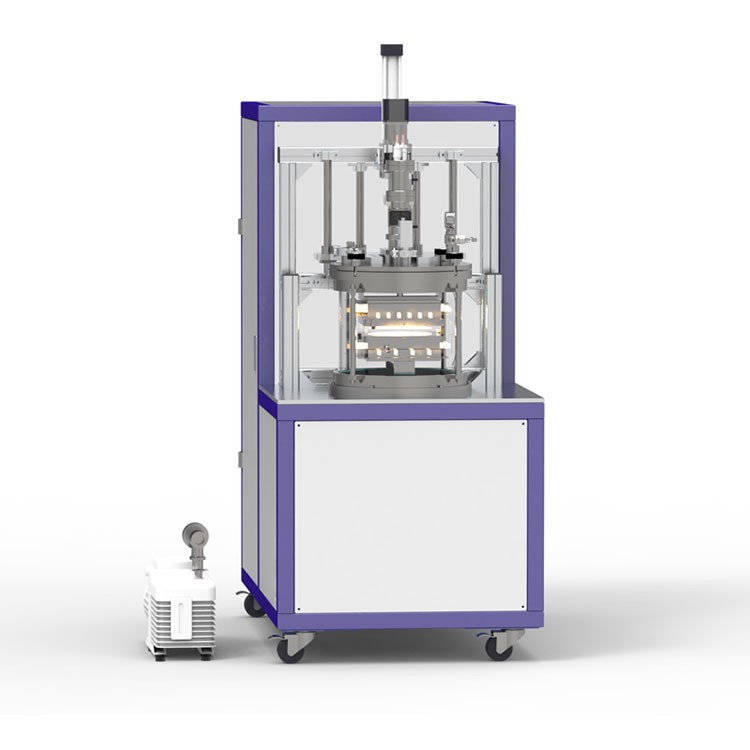

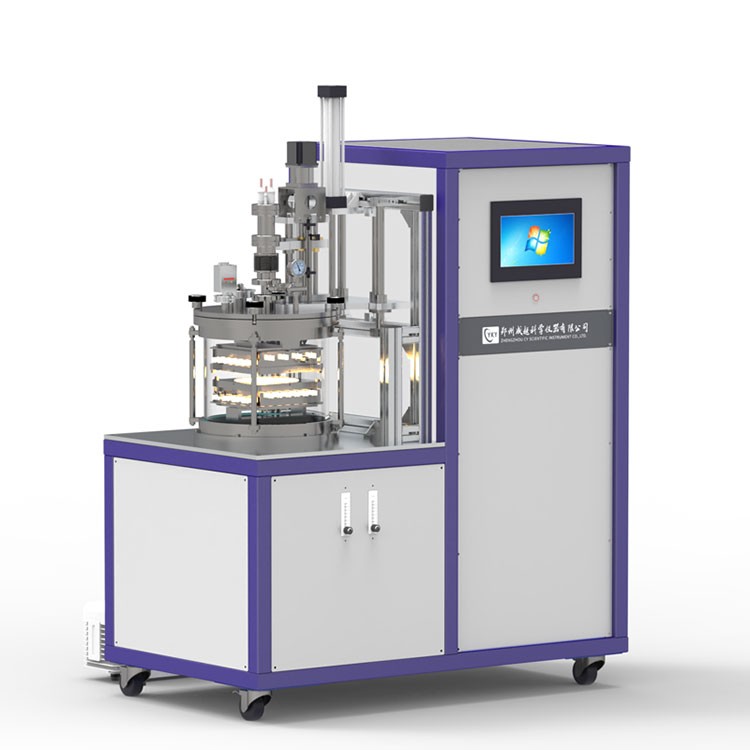

OTF-1200X-RTP-II is a two heating zone rapid thermal processing  furnace with 11" I.D.quartz tube.
It is designed for PVD or CSS (Close Spaced Sublimation) film coating up to 3" diameter or 2"x2" square. The furnace is heated by two group of halogen heaters (Top and Bottom) separately with max. 20ºC/s heating rate. Two 30 segment precision temperature controllers are built in with +/-1ºC accuracy. RS485 port and control software are included to allow for the operation of furnace and temperature profile logging via PC.  It is excellent tool to research new generation thin film for solar cell, such as CdTe, Sufide and Perovskite solar cell

Specification:

Furnace structure
 Vacuum Chamber


Furnace, two temperature controllers, two channel gas flow meters are integrated into a mobile aluminum alloy frame
The chamber is made of high purity fused quartz tube
Quartz tube size: 11" OD/10.8" ID x 9" H
The vacuum flanges are made of Stainless Steel 316
Vacuum FlangesTop Flange with one KFD-25 vacuum port and one gas outlet (1/4" pipe required) can slide up or down manually to load and unload substrate and evaporated material easily
Bottom flange has one KFD-25 vacuum port with one gas inlet (1/4" pipe required) with needle valves
Flange is sealed by double silicone o-rings and can achieve max. vacuum pressure of 10E-2 Torr by a quality mechanical pump and 10E-5 Torr by molecular pump
One digital vacuum gauge is installed on the top flange.
Precision annti-corrosion digital vacuum gauge is optional at extra cost ( Pic. 2)
Gas Flow Meters


Gas mixer integrated with two float-meters with adjustable measurement ranges of:
16 -160 mL/m
500 - 5000 mL/m (for purging purpose)
Heater and
Sample Holder


Two independently controlled heaters with manually adjustable gap from 2 - 30 mm
20 pcs Halogen lamps are used as heating element for rapid thermal processing.
Heaters are is made of stainless steel with water cold jacket to reduce heat radiation and allow for fast cooling.
5" dia. circular wafer holder is built into top heater for holding substrate.
One set of high thermal-conductive AlN plates (5" Dia. x 0.5mm Thick) are included (place on the back of substrate to make it heat uniformly).
A 16L/min recirculating water chiller is included for saving water source
Temperature ControllerTwo precision digital temperature controllers with 30 segments programmable offer independent controlling of top and bottom heaters
Each controller has PID auto tune function to protect heaters from overshooting and alarm function to avoid overheating and thermal couple broken
PC communication interface & software is installed for (click picture below for details) recording temperature profile shown as below
Working TemperatureMax. temperature for each heaters: <= 800ºC
Max. temperature difference between two heaters: <= 300ºC depends on spacing between two heaters:
Spacing 30mm
Max. temp difference:  315ºC @ heating bottom only
Heating &Cooling RateHeating: > 8ºC/s ( heating single heater only )
Cooling: > 10ºC/s (600 - 100ºC) Max.
Thermal CoupleTwo K-type thermal couples are installed on top and bottom heaters separately
Working Voltage208 - 240VAC, single phase, 20A air breaker
Power Requirement2200W total ( 1100W for each heater )
WarrantyOne year limited with life time support
Dimensions1085mm L x 680mm W x 1710mm H
