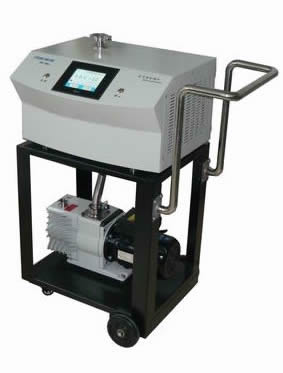

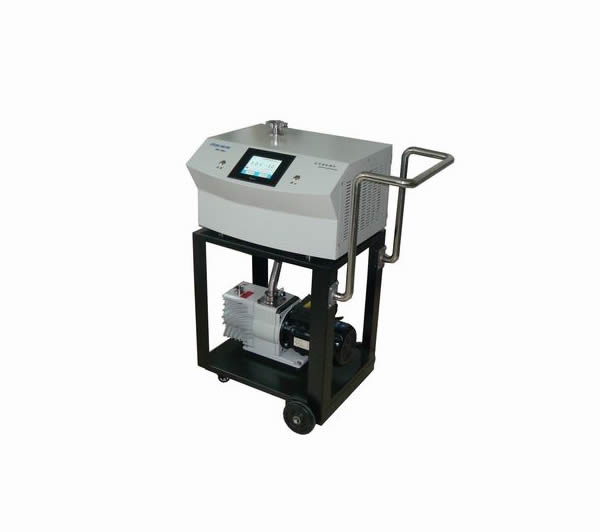

Helium Mass Spectrometer Leak Detector

Helium Mass Spectrometer Leak Detector

    German Pfeiffer molecular pump;German Leybold mechanical pump;built-in standard leak;customized solenoid valve;United States AD amplifier;Mass spectrometry module


Technical Parameters:

Least detectable leak rate

 Vacuum mode: 5×10-13Pa·m3/s

 Suck gun mode: 5×10-9Pa·m3/s

Leakage rate display range

 1×10-3—1×10-13Pa·m3/s

Start up time

 ≤3min

Response time

 ≤1.0s

The maximum pressure of the leak detection port

 1500Pa

Mechanical pumping speed

 16m3/h

Ultimate vacuum

 5×10-4Pa

Power Requirements

 220V, 50Hz, Single Phase, 10A

Working environment

 5-35°C

Relative humidity

 ≤80%

Dimensions

 550 (W) × 420 (D) × 850 (H)

Weight

 65kg



Main configuration:

1.

 German Pfeiffer molecular pump

2.

German Leybold mechanical pump

3

built-in standard leak

4

customized solenoid valve

5.

United States AD amplifier

6.

Mass spectrometry module

7.

Filament wire (coated with yttrium oxide) filament

8.

Color Touching screen (AELTA)



Packing List:

Item

product name

Model

Quantity

1

Helium Mass Spectrometer Leak Detector

CY-XL840

1 set

2

Airbag

40L

1

3

spray gun

PNP-989

1

4

Clip

KF25

2 only

5

fuse

8A

2 only

6

Certification

CY-XL840

1 copy

7

power cable

1.8 m

1

8

Molecular pump instructions

SplitFlow 80

1 copy

9

Mechanical pump instructions

D16C

1 copy

10

Leak detector specification

XL Series

1 copy

11

Stainless steel bellows

1.5 m

1
