Micron range constant temperature automatic programmable dip coater Micron range constant temperature automatic programmable dip coater

Micron range constant temperature automatic programmable dip coater

    This device is a micrometer grade desktop programmable dip coater (1-500 um/sec) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be set up by touch screen controller and run dip coating automatically in the temperature controllable oven.

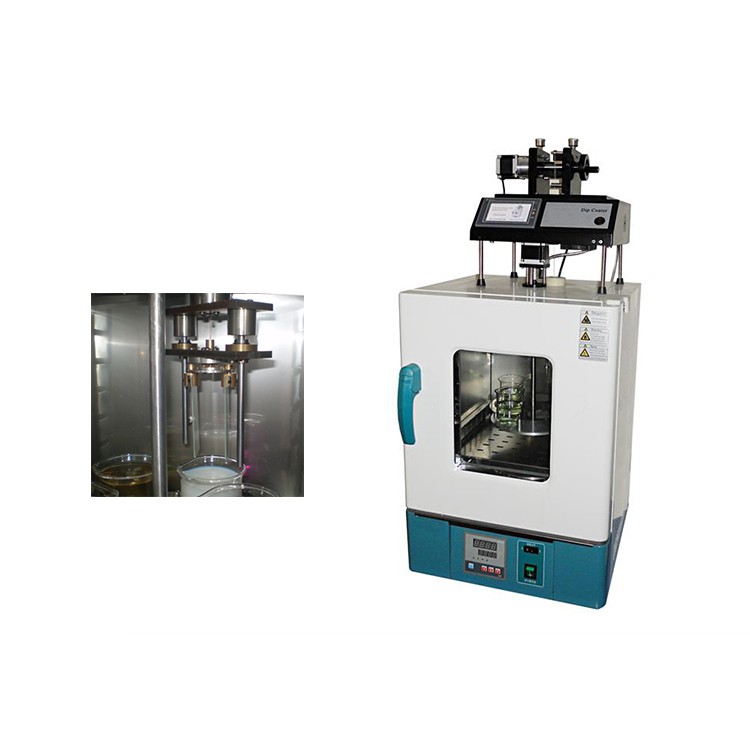

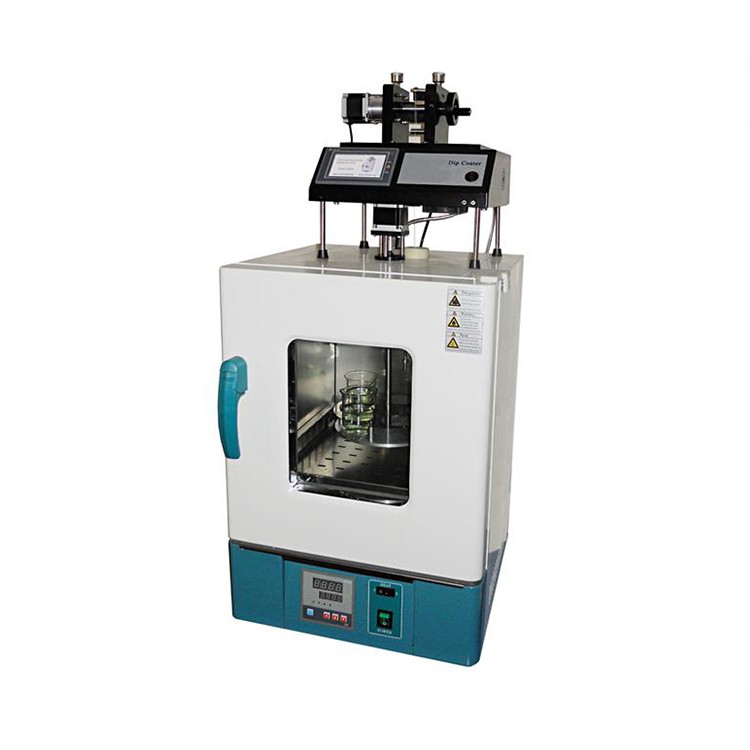

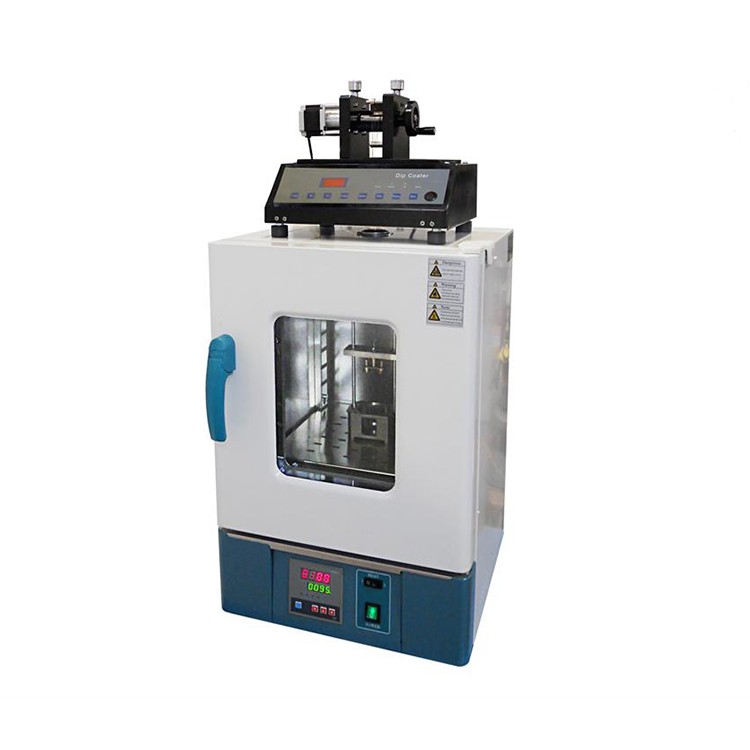

Micron range constant temperature automatic programmable dip coater  is designed to pull the coating film in the liquid phase and grow the film by vertically pulling the sample in the liquid phase. This machine adopts PLC program control system, with color touch screen as data input and output end, showing parameters such as pulling speed, lifting height, lifting round trip times and interval time. This machine is equipped with a constant temperature drying oven to make the film growth process at a constant temperature and to facilitate the curing of the film.

programmable dip coater

Micron range constant temperature automatic programmable dip coater specifications:

Working Voltage

110/220V AC selectable

Travelling Distance

0-60 mm Adjustable

Dipping/Pulling Speed

1-500 um/sec Programmable with accuracy   within +/- 0.05%

Temperature Range

50-100°C

Controller

6" LCD color touch screen controller

Sample Holder

Two screw sample clips are installed in   the sample holder in order to carry the samples sliding up and down through   two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating   material (coating solution) will be placed into the slot of the beaker   holder.

Max. Sample Size

3"(L)×2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

1.Working Voltage: 110/220V AC   selectable in Personalization

2.Max. Power Consumption: 600W

3.Temperature: 50-100°C controlled by   digital controller with +/- 1°C accuracy.

4.Chamber Dimensions:   280mm(L)×280mm(W)×280mm(H)

5.Inner Material: Stainless Steel

6.Product Dimensions:   406mm(L)×406mm(W)×610mm(H)

Product Dimensions

440mm(L)×460mm(W)×1040mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support
