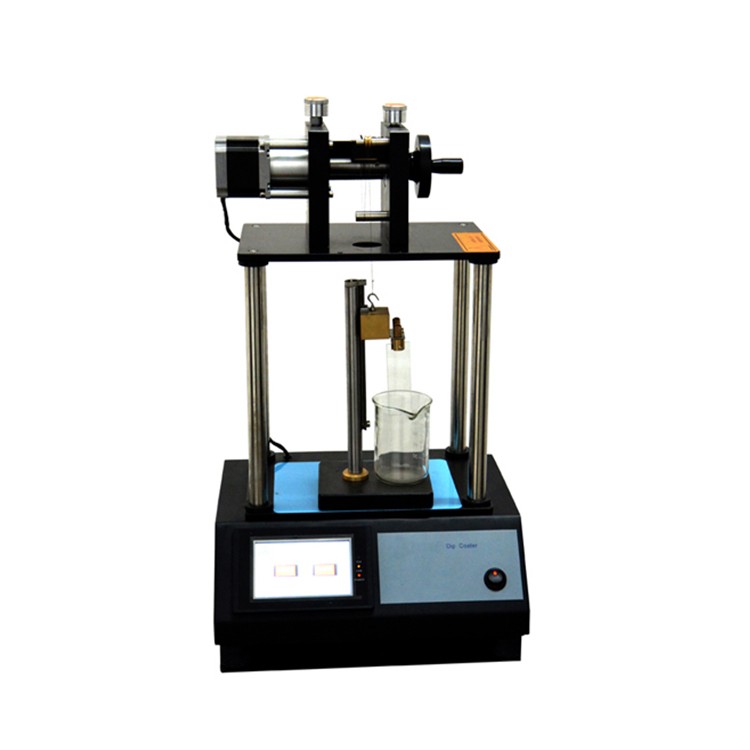

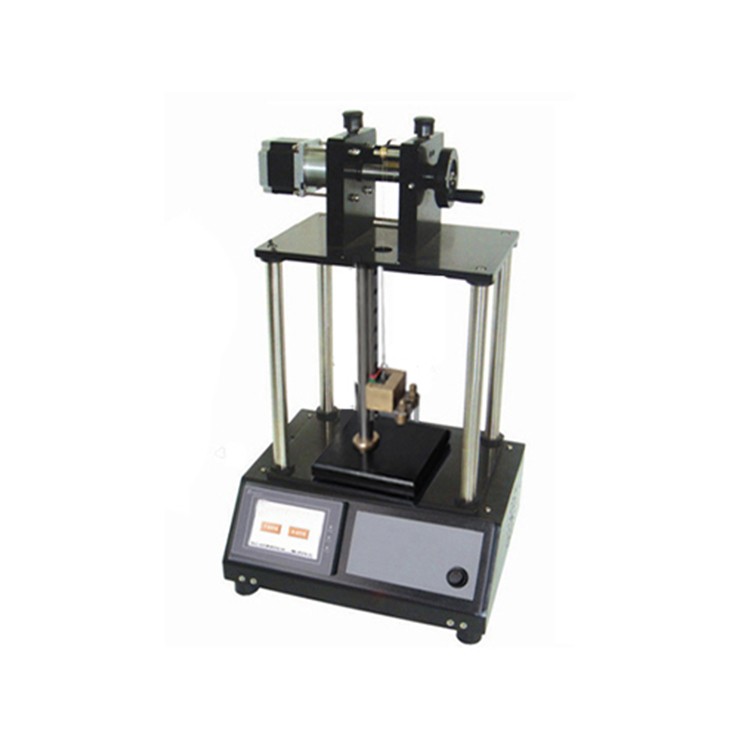

Touch screen programmable laboratory vertical dip coater

    Touch screen programmable laboratory vertical dip coater is a millimeter grade desktop programmable dip coater with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be setup by touch screen controller and run dip coating automatically in the temperature controllable oven.

Touch screen programmable laboratory vertical dip coater is specially designed for pulling the coating film in the liquid phase. By pulling the wire and pulling the sample vertically, the sample is immersed in the liquid film material for a while. Pulling out, so that the surface of the sample grows a film of a certain thickness. This machine is equipped with a constant temperature drying oven to make the film growth process at a constant temperature and to facilitate the curing of the film.It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.

laboratory dip coater

Touch screen programmable laboratory vertical dip coater specifications:

Working Voltage

110/220V AC selectable

Travelling Distance

0-60 mm Adjustable

Dipping/Pulling Speed

1-200 mm/min Programmable with accuracy within +/- 0.05%

Controller

6" LCD color touch screen controller

Sample Holder

Two screw sample clips are installed in the sample holder   in order to carry the samples sliding up and down through two guide   rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating material (coating   solution) will be placed into the slot of the beaker holder.

Max. Sample Size

3"(L)×2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

  • Working Voltage: 110/220V AC        selectable in Personalization

  • Max. Power Consumption: 600W

  • Temperature:   50-100°C        controlled by digital controller with +/- 1°C accuracy.

  • Chamber Dimensions: 280mm(L) x        280mm(W) x 280mm(H)

  • Inner Material: Stainless Steel

  • Product Dimensions: 406mm(L) x        406mm(W) x 610mm(H)

Product Dimensions

 440mm(L) x 460mm(W) x 1040mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support
