Nanometer range laboratory used desktop precision dip coater

Nanometer range laboratory used desktop precision dip coater

    Nanometer range laboratory used desktop precision dip coater is a nanometer grade desktop programmable dip coater (1-500 nm/sec) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be setup by touch screen controller and run dip coating automatically in the temperature controllable oven.

Nanometer range laboratory used desktop precision dip coater adopts PLC program control system, with color touch screen as data input and output end, showing parameters such as pulling speed, lifting height, lifting round trip times and interval time. This machine is equipped with a constant temperature drying oven to make the film growth process at a constant temperature and to facilitate the curing of the film. This machine is mainly used for the research of nanomaterials, surface treatment and other materials. It is also the ideal equipment for film coating in universities and research institutes.

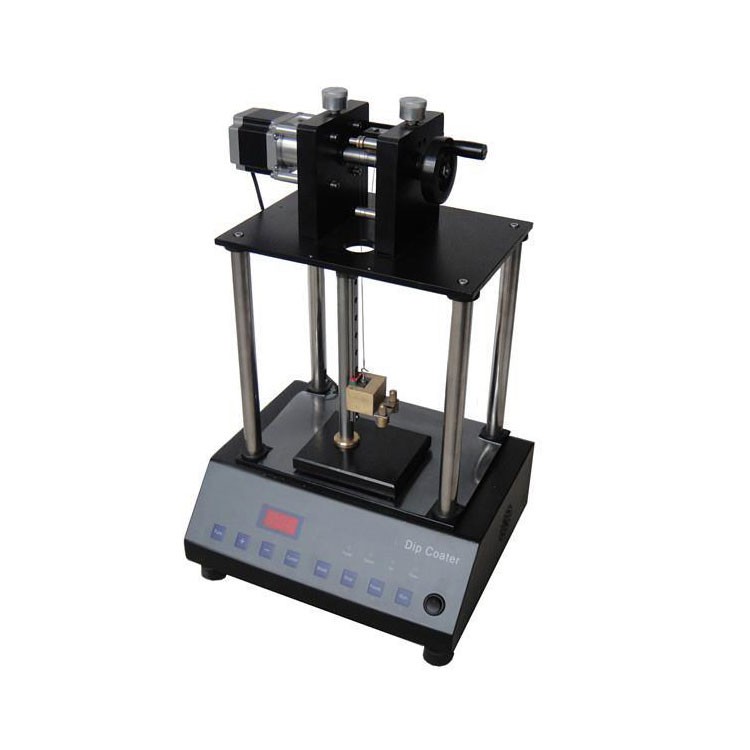

precision dip coater

Nanometer range laboratory used desktop precision dip coater specifications:

Working Voltage

110/220V AC selectable

Travelling Distance

0-60 mm Adjustable

Dipping/Pulling Speed

1-500 nm/sec Programmable with accuracy   within +/- 0.05%

Temperature Range

50-100°C

Controller

6" LCD color touch screen controller

Sample Holder

Two screw sample clips are installed in   the sample holder in order to carry the samples sliding up and down through   two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating   material (coating solution) will be placed into the slot of the beaker   holder.

Max. Sample Size

3"(L)×2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

1.Working Voltage: 110/220V AC   selectable

2.Max. Power Consumption: 600W

3.Chamber Dimensions:   280mm(L)×280mm(W)×280mm(H)

4.Inner Material: Stainless   Steel

5.Product   Dimensions: 406mm(L)×406mm(W)×610mm(H)

Product Dimensions

440mm(L)×460mm(W)×1040mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Application note

Liquid solution is placed in the controlled temperature oven   with +/-1°C tolerance from room temperature to 100°C. Please keep warm   at least half hour after the temperature reach the set point on the digital   temperature meter to ensure an equilibrium temperature distribution in the   liquid solution.
