4 position SILAR specimen programmable dip coater with magnetic stirrer

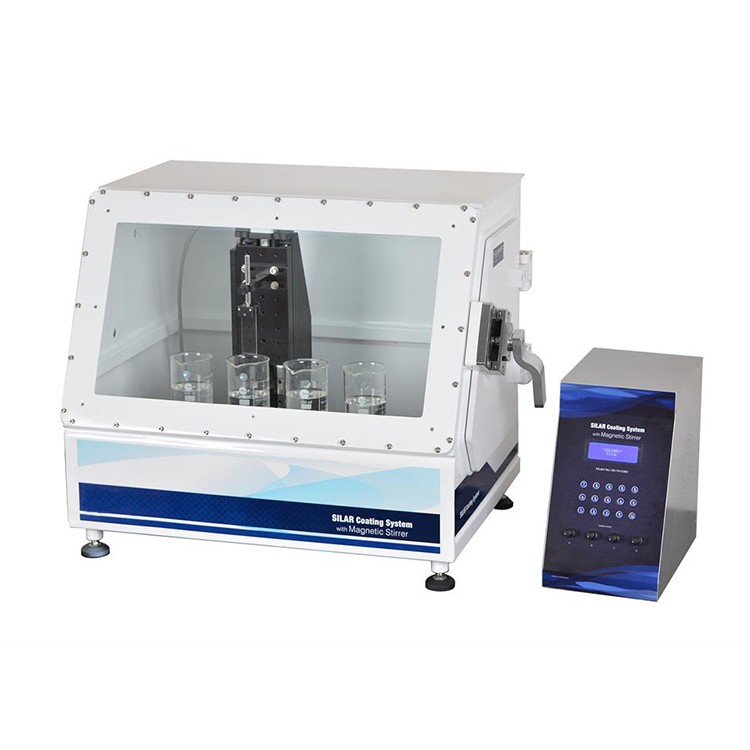

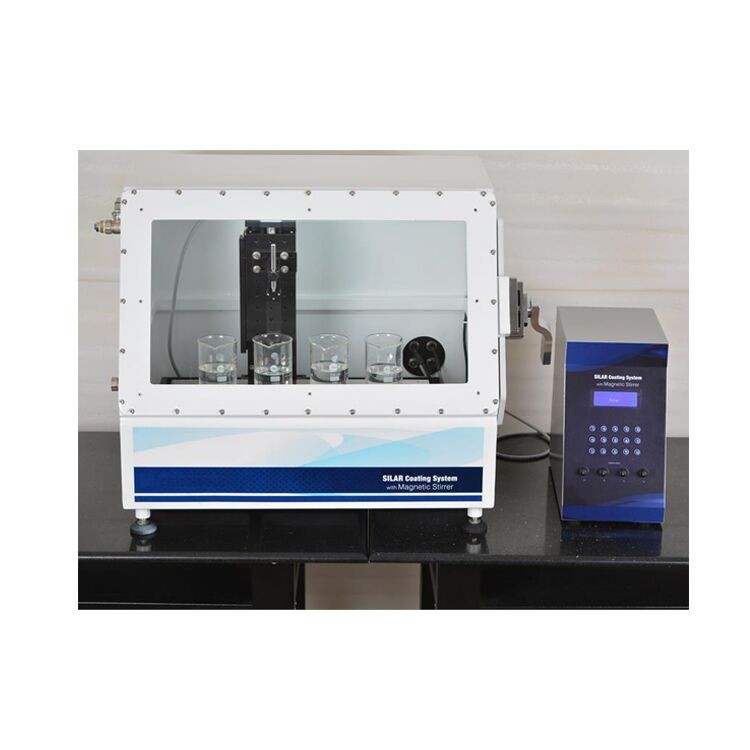

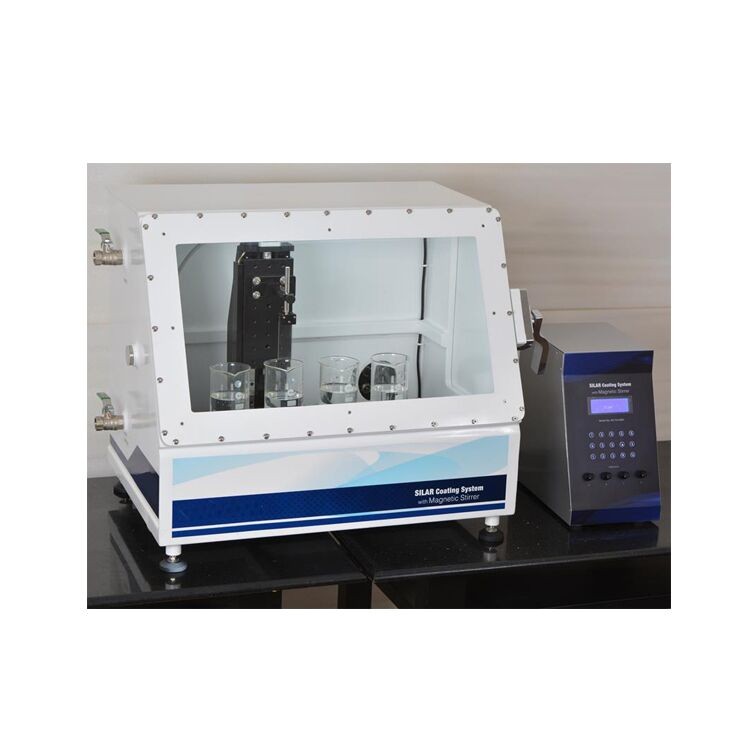

    4 position SILAR specimen programmable dip coater features an air-tight chamber with a front observation window. The unit provides inlet and outlet valves for inert gas purging. This helps to protect samples from moisture or oxygen exposure at the end of the coating process.

4 position SILAR specimen programmable dip coater provides four separate platforms to place coating solutions each with magnetic stirrer. User can also control the speed of the magnetic stirrer for each beaker independently by using the knobs on the front panel of the controller.

In this technique, the thin film is deposited on glass substrate following a chemical technique called successive ion layer adsorption and reaction (SILAR). The technique involves multiple dipping of the substrate in a given solution and deionized water, the temperature of both can vary from case to case.

silar dip coater

4 position SILAR specimen programmable dip coater with magnetic stirrer specifications:

Power Input

208-240VAC, 50/ 60Hz

Air Tight Chamber

· Provision of inlet and outlet   valves for gas purging

· Chamber size: 640L×475W×575H mm

Actuator

Stepper motor

Drive Mechanism

Lead screw

Dip Duration

0 - 99 seconds / minutes / hours

Speed Control

Drawing speed adjustable from a digital   panel from 2 microns/sec  to 9000 micron/sec ( Max.)

Number of Dips

1 - 999

Stirrer Speed

·  0 - 999 rpm

·  Independent speed control   over 4 working positions

Stroke length Max.

100 mm

Control Unit

Speed and mode control via LED display

Warranty

One year limited with lifetime support

Net Weight

130kg

Shipping Weight & Dimension

300 lbs, 40"Lx40"Wx40"H
