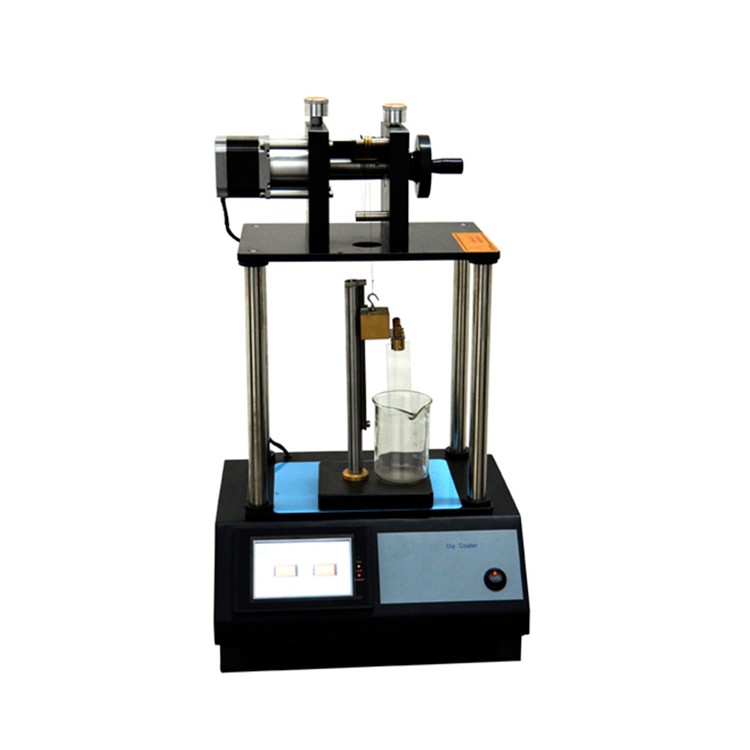

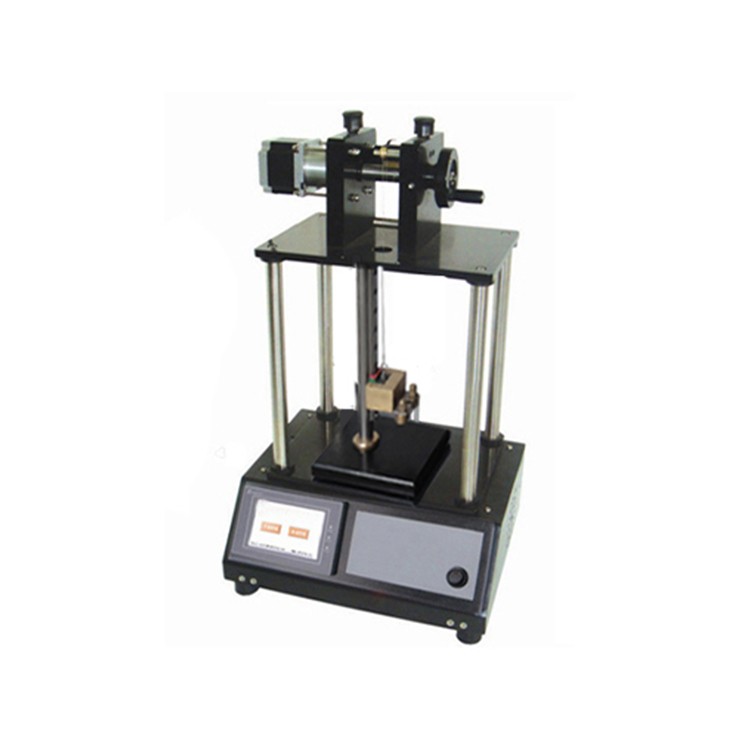

Dip coater with touch screen digital controller for large substrate

    The dip coater is designed to accommodate the substrates up to 16"×9" with fully programmable dipping/pulling speed, dwell time and amount of cycles. The ball screw pulling system offers smooth vibration free traveling in both directions.  A standard PP dip tank is included within the temperature controlled drying oven to hold the liquid solution up to 100°C.

Dip coater with touch screen digital controller for large substrate is a precision device designed for the study of liquid-phase growth films. The film is grown in a constant temperature field by vertically pulling the sample in the liquid phase. This machine adopts high-precision speed control system and touch screen parameter input terminal to realize automatic control of the whole process of dipping coating film.

dip coater

Dip coater with touch screen digital controller for large substrate specifications:

Control Panel

  • Working Voltage: 110-240V AC

  • Max. Power Consumption: 50W

  • Detachable Digital Controller offers flexibility

  • Programmable temperature controller, Forced air fan power adjustor, Temperature limit & alarm indicator, Incubate and dry function switch are included.

Traveling Distance

0-250 mm Adjustable

Dipping/Pulling Speed

1-200 mm/min Adjustable

Max. Working Temperature

100°C (+/- 1.5°C accuracy)

Solution Container

One Polypropylene dip tank is   included with dimensions of 17.25''(W)×2''(D)×9.5'(H)

Optional:  temperature controlled recirculating pump   for the coating slurry can be added inside chamber and tank at extra cost.

Max. Sample Size

16" x 9"

Max. Sample Weight

5 kg

Dipping/Pulling Motor

Stepping Motor

Oven

  • Working Voltage: 208-240V AC

  • Max. Power Consumption: 2300W

  • Chamber Dimensions: 500mm(L)×450mm(W)×550mm(H)-- 124 Liter

  • Inner Material: Stainless Steel

Product Dimensions

636mm(L)×680mm(W)×915mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Net Weight

91 kg (200 lbs)

Application note

The liquid solution is placed in the controlled   temperature oven with +/-1.5°C tolerance from room temperature to   100°C. Please keep warm at least half hour after the temperature reach the   set point on the digital temperature meter to ensure an equilibrium   temperature distribution in the liquid solution
