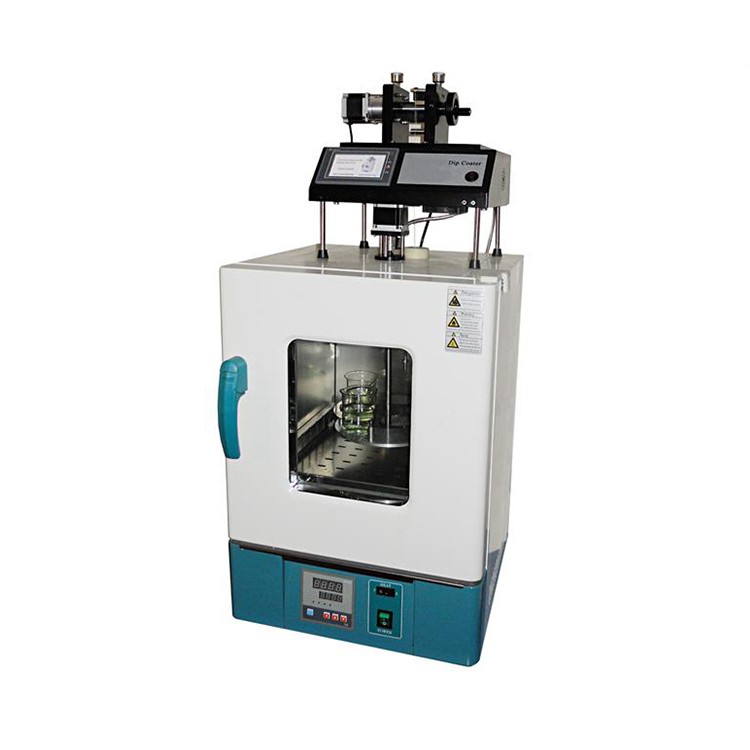

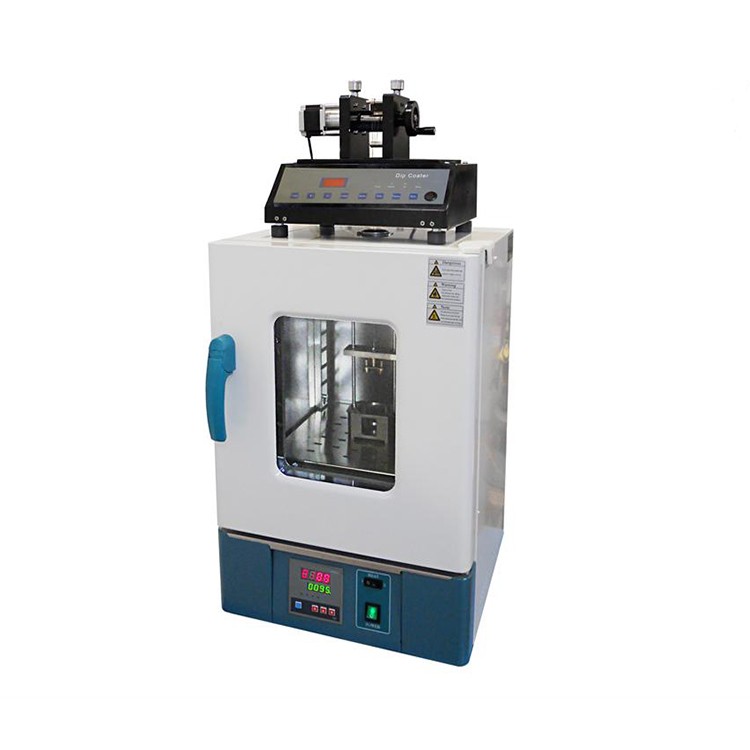

Constant temperature dip coater with drying oven

    Constant temperature dip coater with drying oven is a millimeter grade desktop programmable dip coater (1-200mm/min). The system is controlled by SBC, which provides adjustable dipping speed, pulling speed, and travelling length. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.

Constant temperature dip coater with drying oven is designed for the study of liquid phase epitaxial film. By pulling the wire and pulling the sample vertically, the sample is immersed in the liquid film material for a while and then pulled out, then a film of a certain thickness is grown on the surface of the sample. Constant temperature dip coater adopts a single-board machine to control the lifting speed of the pulling wire, so that the elevator can run smoothly and accurately. The sample can be automatically pulled back by manual control into the liquid film material; or it can be immersed in the liquid film material by automatic control, and manually pulled back; the dwell time can be controlled according to individual needs. This machine is equipped with a constant temperature drying oven with a temperature of up to 100℃ to allow the film growth process to proceed at a constant temperature.

Constant temperature dip coater

Constant temperature dip coater with drying oven specifications:

Working Voltage

110/220V AC selectable

Travelling Distance

0-200 mm Adjustable

Dipping/Pulling Speed

1-200 mm/min Adjustable, controlled by digital   pannel.

Sample Holder

Two screw sample clips are installed in the sample   holder in order to carry the samples sliding up and down through   two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating material   (coating solution) will be placed into the slot of the beaker holder.

Max. Sample Size

3"(L) x 2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

1.Working Voltage: 110/220V AC   selectable in Personalization

2.Max. Power Consumption: 600W

3.Chamber Dimensions: 280mm(L)   x 280mm(W) x 280mm(H)

4.Inner Material: Stainless   Steel

5.Digital   temperature controller at range 50-100°C with +/- 1°C accuracy.

Compliance

CE Certified

Warranty

One year limited with lifetime support
