Programmable dip coating manchine with vertical tube furnace Programmable dip coating manchine with vertical tube furnace Programmable dip coating manchine with vertical tube furnace

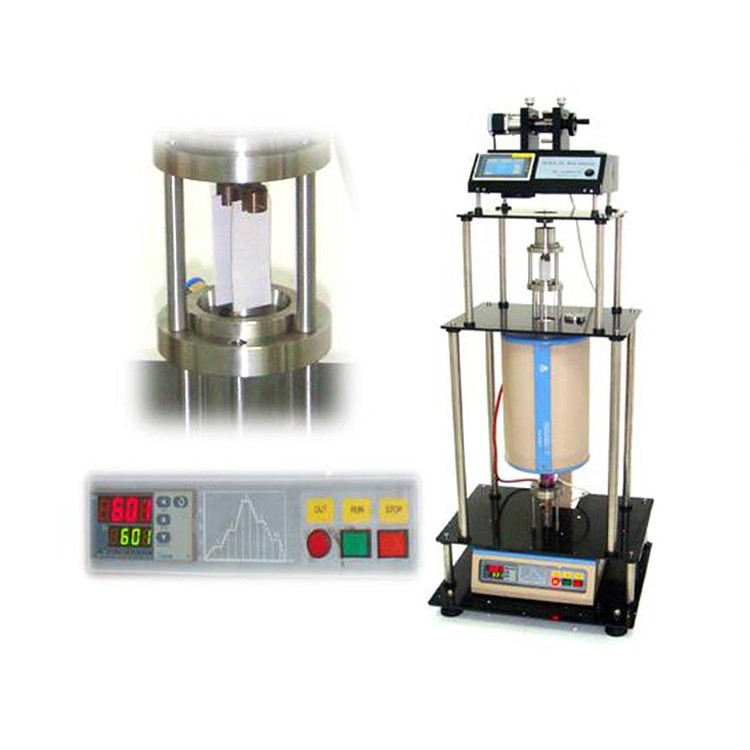

Programmable dip coating manchine with vertical tube furnace

    Programmable dip coating manchine has 2''Tube Furnace and color touch screen. It is designed for R&D Lab to prepare various optical or epitaxial films from the liquid solution under a controlled temperature and atmosphere environment. Dipping rate, pulling rate, dwell time and life cycle can be set up via the touch screen control.

Programmable dip coating manchine with vertical tube furnace is widely used in various high temperature lifting coating research. The sample is fixed under the drawing and runs down to the charging box under the tube to stay in the liquid film material for a certain time. Then, it is pulled back into the tube furnace  for heating to cure the film quickly. The heating tube furnace  can provide a lift coating environment with a temperature of up to 1000 °C. The coating machine is especially suitable for materials for film growth at high temperatures, such as ceramic films, crystal films, battery materials films, and special nano films. The coating machine can adapt to the development needs of film forming technology under high temperature conditions in the future. The machine is easy to operate and easy to clean.

programmable dip coater

Programmable dip coating manchine with vertical tube furnace specifications:

Dip coater

•Working Voltage: 110V AC (or 220V)

Max. Power Consumption: 50W

6"(L)×4"(W) Touch Screen Display

Three stages pulling speed control

Total stoke length: 620mm

Pulling Speed: 1-200 mm/min programmable with accuracy of +/-   0.05%

Dwelling time at constant temperature zone: 1-999 seconds

Lower or higher pulling or dipping speed is available upon request   at extra cost

Tube furnaces

•Working Voltage: 110V AC or 220V

Max. Power Consumption: 2KW

Tube size: 2" (OD)×24"(L)

Heating Zone Length: 12" (300mm)

Max. heating temperature: 1200

Continuous working temperature: 1100

30 segment progtammable digital temperature controller

Note: Max. working temperature for dip coating is limited by   pulling wire

   Included stainless steel wire  Max. working temperature < 800

   Ni-Cr-Al wire (not included) Max. working   temperature < 1100°C

   Platinium wire (not included) Max.working   temperature1200, 1600

800℃pulling wire (Ni-SS)

Three sets of Ni-SS pulling wire are included. Max. working   temperature is 800℃.

Optional pulling wire for higher working temperature:

   Ni-Cr-Al wire  max. working temperature: 1100

   Platinium wire  max.working temperature: 1200 - 1600

Stage Length

Lower Stage(Pre-heat zone): 236mm

Center Stage(Constant temperature zone): 150mm

Upper Stage(Cooling zone): 234mm

Product Dimensions

560mm(L)×470mm(W)×1435mm(H)

Compliance

CE Certified

Net Weight

105 kg (230 lbs)

Shipping Weight

137 kg (300 lbs)

Shipping Dimensions

48"(L)×45"(W)×70"(H)
