Nano Fiber Electrospinning Unit CY-NFES-040Nano Fiber Electrospinning Unit CY-NFES-040Nano Fiber Electrospinning Unit CY-NFES-040

Nano Fiber Electrospinning Unit CY-NFES-040

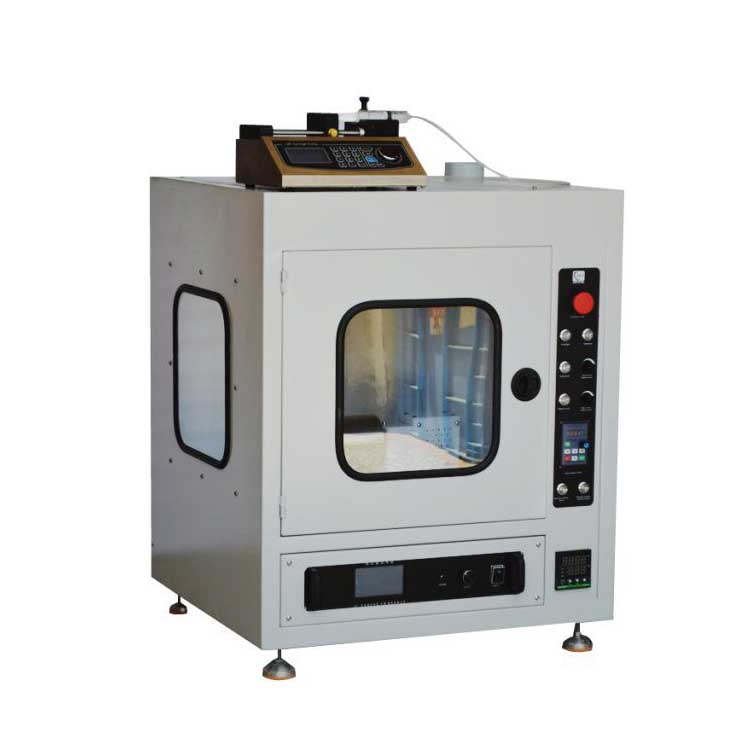

    CY-NFES-040 model electrospinning equipment is a complete unit for Nanofiber electrospinning.

    It is used to make nano and micro fibers ranging from 50nm to 5 microns in diameter.

Many kind of polymers like Protein nanofibers, carbon nanotubes, inorganic nanofibers etc. can be synthesized using our nano fiber electrospinning unit. Our equipment uses horizontal spinning when compared to other equipment available in the market. This technology assures the quality of the spun fibers with no dip and uneven diameter.

Features of nano fiber electrospinning unit:

1. Cabin Heating: Up to 45°C using 1000watt coil heater

2. The chamber is provided with Residual Charge Discharge Stick which is used for static removal.

3. Safety switch provided to switch off H.V. Power supply when door is opened.

4. LED cabin lighting and back light to view Needle tip and electro spin process.

5. Exhaust fan is provided for solvent vaporization. It is also used for cooling down the equipment after spin process.

6. Emergency stop is provided on the control panel to stop the equipment where there is any emergency.

7. Coaxial spinneret: Our Nano fiber electrospinning unit equips Coaxial spinneret which helps to produce Hollow nanofibers and Core / Sheath nanofibers. This technology can also be used to combine different characteristics of each polymer into one fiber.

8. Graduation scale provided on the granite surface in X & Y direction which helps the end-user to achieve repetitive results by marketing the positions of syringe pump and target.

9. User friendly software enables PC interfacing that helps the regulation and control of various features like Rotating mandrel speed, Spin Duration, Syringe pump flow rate, vertically target movement etc.

10. Rotating Mandrel targets of varying diameters, Stationary target and Reciprocating vertically moving target provided with the system.

11. System hood has features like Exhaust fan, halogen lighting and transparent door for monitoring electrospinning process.

12. Built-in Arc Protection Circuit

Specifications of nano fiber electrospinning unit

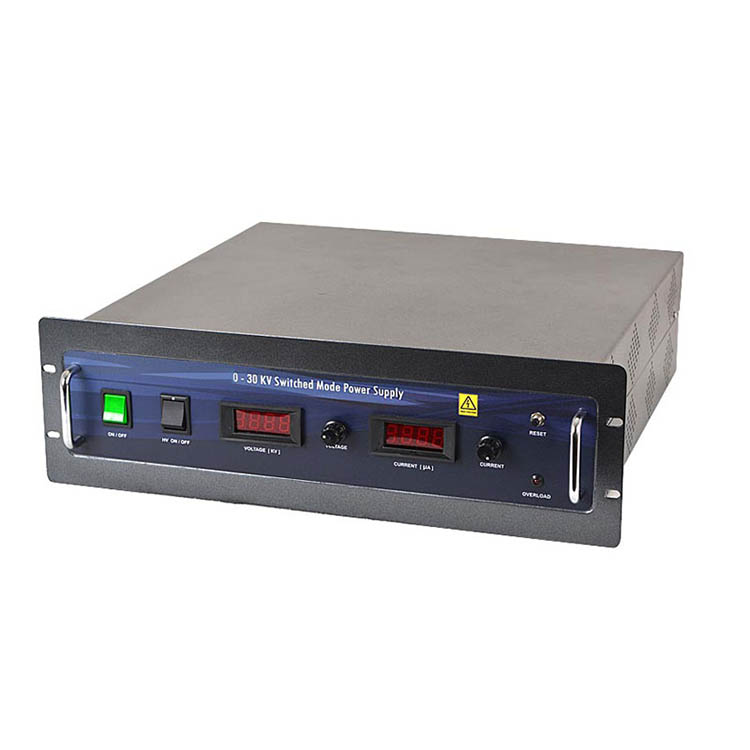

High Voltage Power Supply


CY-NFES-040 comes with high voltage power supply. It has 0 - 30kV output voltage range with a maximum current capacity of 0.5mA. Output voltage and current can be set using front panel knobs and readout from the digital panel meters.

1. 0 - 30kV Single Output, 0.5mA max Current

2. Digital Voltmeter and Current meter

3. Static Removal Device - Shorting Stick

4. Constant current / Constant Voltage mode of operation

5. Built-in ARC Circuit Protection

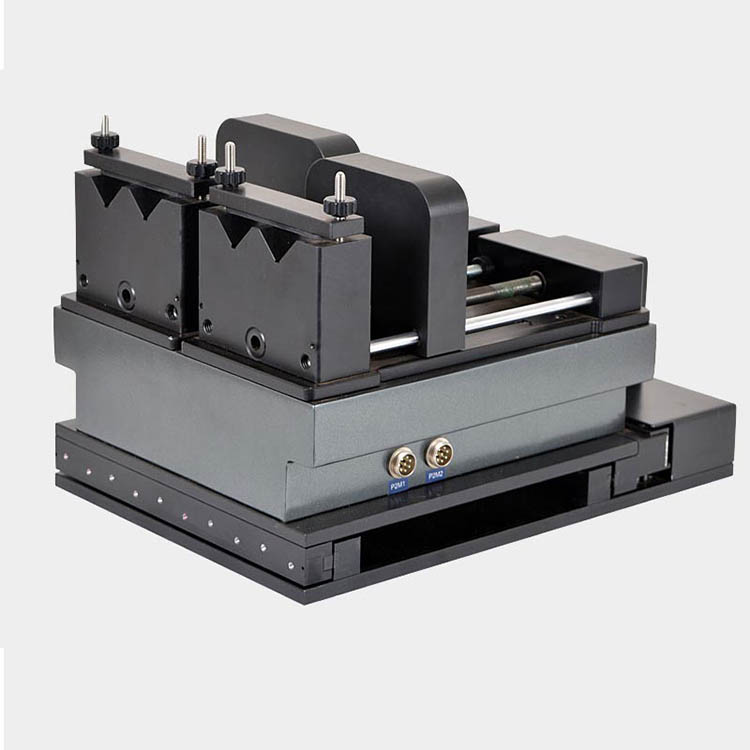

Independently Controlled Dual Channel Syringe Pump


CY-SPLF4 model syringe pump   provides independent control of two dual channel syringe pumps. The speed and   flow rate can be changed on both to achieve custom fabrications of fibers.

The Syringe pump also can be   moved to and fro in X axis. The maximum travel distance is 200mm. The   movement is controlled via PC.

It can operate with standard   off-the-shelf syringes made of plastic, glass or stainless steel. The   microprocessor based control circuit can render a flow rate of 0.4 µl/hr to   650 ml/hr (with 5ml Syringe). The syringe diameter, spin duration or the   target volume can be set by the user through the ElectroSpinner software interface.

1. To dispense from standard disposable or glass syringes from 2.5 to 60ml

2. Syringe holder made of insulating material to work under high voltage conditions

3. Motor control through microcontroller to control and indicate flow rate

4. Four syringe dispensing system

5. PC based control with documentation of parameters like syringe diameter, flow rate, spray duration   etc.

Rotating Mandrel


Rotating mandrels which comes   with the electrospinning unit can be used as a target to get an aligned   continuous mesh of nanofiber. It has a speed range of 300rpm to 4000rpm   suitable for electrospinning. Grounding of the mandrel to the HV power supply   is attained through a carbon brush contact. The rotating mandrel has a speed   stability of +/- 1%. CY-RM-01 is a high speed rotating mandrel assembly which   works with CY-MN series mandrels of 2mm to 100mm diameter and is of 200mm   length. Number of mandrels supplied are 100mm, 75mm, 50mm, 25mm, 15mm, 12mm,   6mm, 4mm, 2mm.

1. Stainless steel drums of different sizes

2. Rotational Speed: 300 - 4000 rpm

3. Grounding facility: Available

4. Actuator: Microprocessor controlled BLDCmotor with hall sensor feedback

5. Speed stability: +/- 1%

6. PC based control with documentation of speed and duration

Y Plate Collector & Stationary Target


This collector can be used as   Stationary target or as Y plate collector. The stationary target which acts   as a collector of electro spun nanofibers, is made of stainless steel plate   such that it can be held vertically on a table top. It also has connector for   grounding.

Using a stationary target   alone cannot attain a uniform density of fibers, as most of the fiber is   collected around the point orthogonal to the syringe needle. Combined with X   movement provided on the syringe pump, the Y translation stage on the target   keeps the target move through a commanded motion profile. Depending on the   motion profile, fibers get collected uniformly on the target. The motion   profile can be created using a series of commands available in the software.

1.Plate Dimension: 250*175*3mm

2.Plate Material: Stainless Steel

3.Grounding Facility: Available

4.Programmable Y motion profile to control the nano fiber deposition characteristics

5.PC based motion control with documentation of parameters like speed, traverse, motion profile and duration


a. Needle Spinneret

The Flat tipped metal needles   are provided for the easy flow of the nano fibers. The high voltage is   connected to the tip of the needle using metal clips.

b. Co axial Spinneret

The Coaxial spinneret provides simultaneous flow of two different solutions. This helps to produce Hollow nanofibers and Core / Sheath nanofibers.

Fume Hood

CY-FH-01 model fume hood provides an enclosed atmosphere for electrospinning. An enclosed chamber is   necessary to protect the user from pollutant air caused by solvent evaporation during the process. It comes with an exhaust fan attached or optionally with a duct of custom dimension so that it can be connected to an   exhaust duct available onsite.

CYKY's Fume Hood also has an option for in-built heater capable to provide a temperature up to 45°C. An   independent PID controller ensures precise control of temperature. A common electronic control unit for all the devices in the electrospinning system is   integrated within the hood.

The fume Hood has transparent side walls and front door shield made of float glass. This ensures good visibility of the process. High intensity light from the optional halogen lamp illuminates the nanofibers being spun on its way to the target. The table top is made of granite which makes the cleaning process easy.

1.Standalone unit with in-built power supply and wiring for the heater, lighting and exhaust

2.Transparent glass windows on three sides for easily monitoring the electrospinning process

3.Foot print:1200mm*850mm*1520 mm

4.Construction Material: Stainless Steel, Aluminium & Glass

5.Epoxy coated for electrical insulation

6.Ambient to 40 temperature control

7.Exhaust fan ventilation at the top of the hood which can be connected to an exhaust outlet available at the customer facility.


a.Normal Glass Syringe

b.Glass Syringe with tube connector

c.Spare Needle

d.Teflon Tube

Optional:UV Curing Lamp

A special 10W 254nm UV light can be added on top of the rotating collector drum which helps to cure the spun fibers.

It can be switched on during the operation or when fiber spun is completed on the collector drum.

As the UV light is harmful for our skin and eye, the glass surfaces of the chamber is protected with special coatings to reflect maximum UV.

The controller is also provided with an ON/OFF Switch for the UV Lamp.
