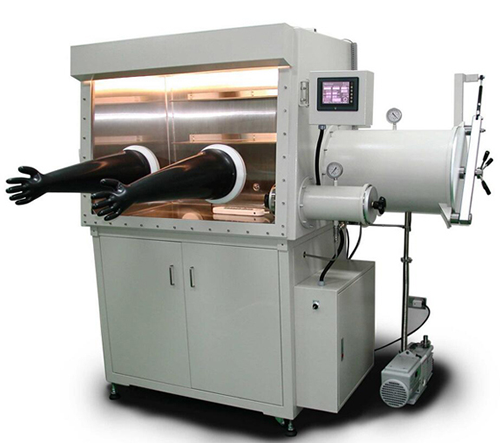

Dry Glove Box with Humidity Purification System (H2O < 1 ppm) for Li-ion Battery Research - Vgb-7h2

    Product DescriptionVGB-7H2 is dry glove box with automatic moisture purification system, which can provide a dry gas environment with moisture lower than 1 ppm.  It is a cost effective solution for Li-Ion battery research at low cost because most Li-ion battery's electrolyte is sensitive to moisture, but not oxygen.

Basic Info


  • Model NO.: VGB-7H2

  • Structure: Desktop

  • Certification: CE, TUV

  • Type: Lab Glove Box

  • Transport Package: Ply Wooden Carton

  • HS Code: 85143090

  • Customized: Customized

  • Material: Steel

  • Application: School, Lab

  • Trademark: CYKY

  • Origin: Zhengzhou, China


Product Description


VGB-7H2 is dry glove box with automatic moisture purification system, which can provide a dry gas environment with moisture lower than 1 ppm.  It is a cost effective solution for Li-Ion battery research at low cost because most Li-ion battery's electrolyte is sensitive to moisture, but not oxygen.   One slidable Sample Shelf is built on top inside glove box to make operation easily

SPECIFICATIONS:

Working Voltage220V 50/60Hz, Single Phase
Glove Box Chamber &
Airlock Chamber

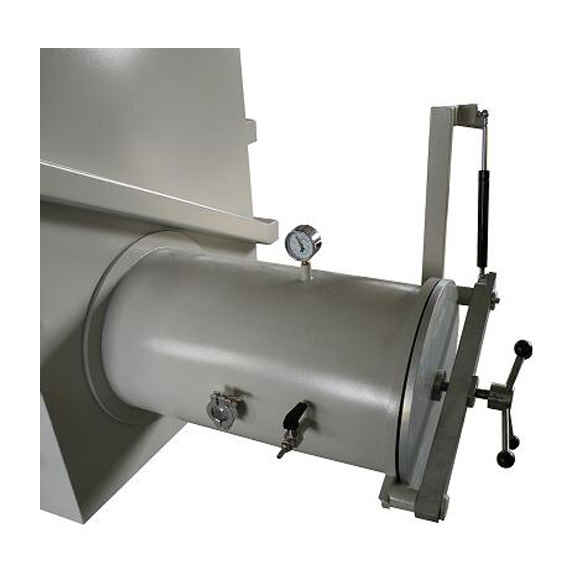

Case Material: Made of  304 stainless steel sheet Dimensions: 1230 mm(L) x 740mm(W) x 900mm(H)Total Height with frame:  1860 mmMax. Positive Pressure: 810 Torr Airlock Chamber with AirliftDimensions: 360mm(ID) x 435mm(L)Max. Vacuum Level: 0.05 Torr Two 175mm diameter glove port with a pair of  6'' Butadyl® glovesOne slidable Sample Shelf is built on top inside glovebox to make operation at easyLED light is built in outside glove box

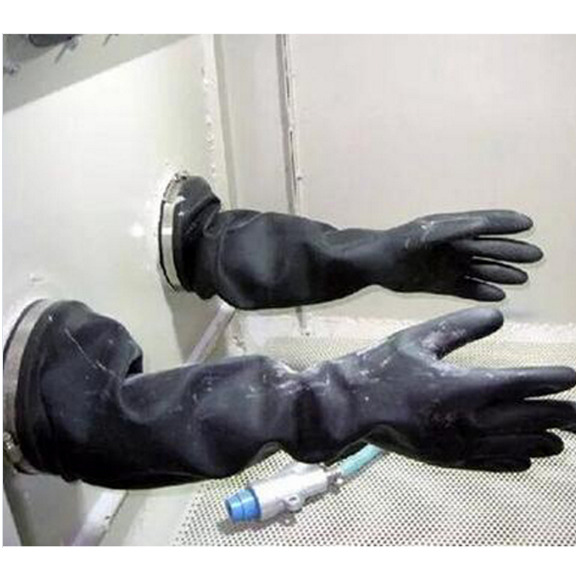

Gloves Glove Port size: 190mm(Dia.)8'' Butadyl® Gloves included (with increased stretching, bending ability and tear strength, and offer strong resistance to aromatics, hydrocarbons, solvents, fats, and acids)Clamps and sealing flanges included
Transparent Front PanelFront Panel made of transparent plastic Dimension: 1200 mm(L) x 700mm(W)Removable for putting in devices


Purification System
Automatic moisture remove to < 2 ppm (Li-Ion battery assembling requires <11 ppm moisture)Precision Humidity Analyzer with KF25 Flange (0-999 ppm) is installed on the Purification System with accuracy  +/-0.1 ppmLarge capacity moisture filter built in bottom of mobile cart, which can soak moisture up to 1.5kgRegeneration Temperature Controller is built in for automatically regenerating filterAutomatic pressure control system is built in to keep pressure at constant level6" color PLC touch panel is included which can set and display the humidity and pressure level.The control panel is removable, which can be placed anywhere for easy operation
Purification Pipeline304 stainless steel, KF40 port
Vacuum pump Heavy duty vacuum pump with filter is included for faster vacuum and removing moistureStainless steel vacuum bellow and valve are included
Gasses RequirementWorking gasses: Atmospheric Gases, N2, Argon          Regeneration Gas: 95% N2 + 5%H2One float meter built on the front of mobile cart for accurate gas filling
Leakage Rate in Glove Box Chamber< 3 Torr/hour
Power ExtensionOne extension socket (Max power 1500W) is installed in the glove box main chamberThe power cord was included for immediate use. (For use with 208~240V power supply, no plug will be included)
WarrantyOne-year limited warranty with lifetime supportRusting and damage due to improper storage condition or maintenance are not covered by warrantyGloves are consumable items and are not covered under warranty
Dimensions for Glove BoxGlovebox:  G1230mm L × 2300mm W × 1860mm H
