Battery Vacuum Glove Box with Automatic Humidity Purification Battery Vacuum Glove Box with Automatic Humidity Purification

Battery Vacuum Glove Box with Automatic Humidity Purification



    VGB-4H is a vacuumable glove box with moisture purification system which provides a protective gas
    environment with humidity level < 2 ppm.  It is an ideal working station for Li-ion battery fabrication
    processes, such as electrolyte injection & settlement and final sealing of battery casing. It is also suitable
    for material and chemical researchers to process air sensitive materials and solutions.

Basic Info



  • Model NO.: CY-VGB-4H

  • Purification Pipeline: 304 Stainless Steel

  • Leakage Rate: < 3 Torr/Hour

  • Certificate: Ce/TUV

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China

  • Glove Box Chamber: 304 Stainless Steel

  • Working Gas: Atmospheric Gases

  • Warranty: One Year

  • Trademark: CY

  • Specification: 1120mm(L) x 740mm(W) x 900mm(H)

  • HS Code: 85141090



Product Description



Vacuum Glove Box (44"x29"x35") with Automatic Humidity Purification for Battery Assembling - VGB-4H

Introduction of battery vacuum glove box:

VGB-4H is a vacuumable glove box with moisture purification system which provides a protective gas
environment with humidity level < 2 ppm.  It is an ideal working station for Li-ion battery fabrication
processes, such as electrolyte injection & settlement and final sealing of battery casing. It is also suitable
for material and chemical researchers to process air sensitive materials and solutions.

Technical parameter of battery vacuum glove box:

Working Voltage220V 50/60Hz, Single Phase (110V AC is available at extra cost)
Glove Box Chamber

Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet which provide heavy duty structure for vacuum
Dimensions: 1120mm(L) x 740mm(W) x 900mm(H)
Max. Positive Pressure: 810 Torr (1.1 atm)
Max. Vacuum Level: 0.5 Torr (by mechanical pump)

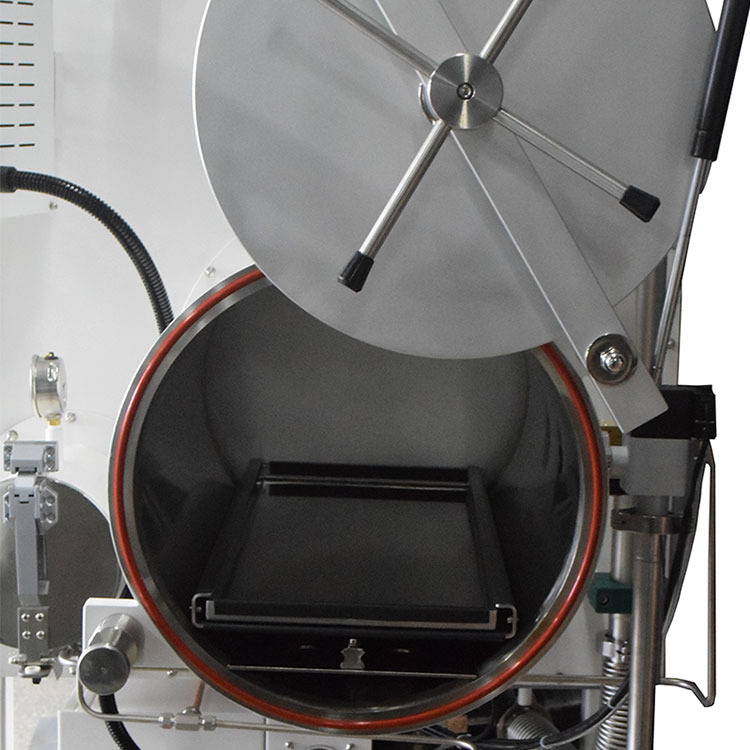

Air-lock Chamber with Air liftDimensions: 360mm(ID) x 435mm(L)
Max. Vacuum Level: 0.05 Torr
Transparent Front PanelDimension: 1040mm(L) x 405mm(W)
Removable for putting in devices
Gloves

Glove Port size: 190mm(Dia.)
8'' Butadyl® Gloves included (with increased stretching, bending ability and tear strength, and offer strong resistance to aromatics, hydrocarbons, solvents, fats, and acids)
Clamps and sealing flanges included
Vacuum Gauge and ValvesOne vacuum gauge is installed on airlock chamber.
1 barbed needle valve and 1 KF-25 Vacuum port on the airlock chamber.
1 KF40 port and 2 1/2" barbed needle valves are built on the side of the main chamber.
2 KF25 ports on the back of glove box chamber.
3 KF40 ports on the back of glove box chamber for connecting to gas purification system.
Purification System

Automatic moisture removal  <2 ppm, which is Dew Point < -71.7°C  (<11 ppm H2 is usually needed for Li-Ion battery assembly)  --  click to see Conversion of moisture/humidity
Precision Humidity Analyzer with KF25 Flange (0-999 ppm) is installed on the Purification System with accuracy  +/-0.1ppm
Large capacity moisture filtration is built-in the bottom of the mobile cart, which can absorb H2 upto 1.5kg
Regeneration process control can automatically regenerate filter when it is saturated
Automatic pressure control system is able to maintain the pressure at a constant level
6" color PLC touch panel allow the user to set and read the humidity and pressure level easily.
The control panel is removable, which can be placed anywhere for easy operation.
Purification Pipeline304 stainless steel, KF40 port
Vacuum pump

Heavy duty vacuum pump with filter is included for initial pump down and purging if needed
Stainless steel vacuum bellow and valve are included
Gas RequirementWorking gasses: Atmospheric Gases, N2, Argon
Regeneration Gas: N2
One float meter built in bottom of mobile cart for accurate gas filling
Leakage Rate in Glove Box Chamber< 3 Torr/hour
Power ExtensionOne extension socket (Max power 1500W) is installed in the glove box main chamber
WarrantyOne-year limited warranty with lifetime support


More photos of battery vacuum glove box:
Battery Vacuum Glove Box with Automatic Humidity Purification
Battery Vacuum Glove Box with Automatic Humidity Purification
Battery Vacuum Glove Box with Automatic Humidity Purification


Battery Vacuum Glove Box with Automatic Humidity Purification
