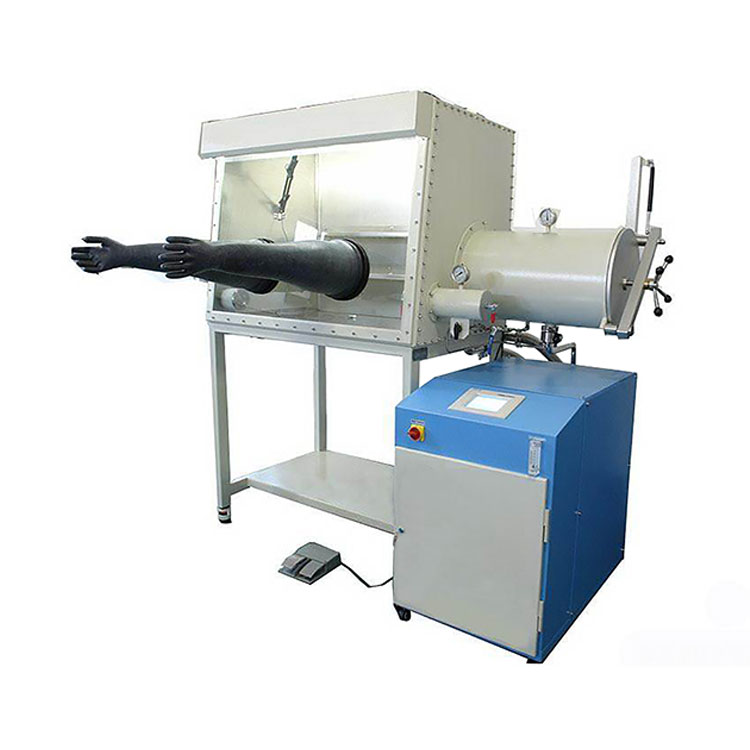

Box chamber | Dimension | 1200mm (L) x 900mm (H) x 1000mm (W) |
Material | 304 stainless steel :thickness 3mm |
Filter | Aperture 3 μM |
Gloves | 0.4mm thickness, butyl material, glove mouth: 8-inch,hard aluminum alloy (anti-corrosion treatment, anodized aluminum), caliber 220mm |
Window | Inclined operating surface; Detachable 8mm safety tempered glass front window, wear-resistant, corrosion-resistant, good light transmission; 3/8 inch thick OMEGA seal |
Working pressure | - 10mbar ～ 10mbar |
Lighting | Anti reflection lighting energy saving lamp, with soft light. |
Power supply | 220V ± 10% 50Hz ± 10%（multi hole power terminal block ） |
Accessory | Display board(two layers) |
Transition chamber | Shape | cylindrical (304 stainless steel), connected with glove box, valve control |
Dimensions: | Large chamber: φ360mm *L600mm, piston door, sliding tray, polishing, automatic valve control air extraction and replenishment. Small chamber: φ 150 mm *L300 mm, manual valve control air extraction and replenishment. |
Tray | stainless steel 300mm × 450mm,freely movable extension (large transition cabin configuration) |
Vacuum degree | ≤1bar(Both the large and small are shown) |
Control system | Mode | including self-diagnosis, power-off and self-starting features, with pressure control and self-adaptive functions. Automatic control, cycle control, password protection, vacuum chamber control adopt LCD display. The unit control uses Siemens PLC touch screen |
Pressure control | control the pressure of the box and the transition cabin to a certain set value. |
Foot pedal | It can control the pressure of the glove box and is easy to operate. |
