Dual chamber glove box with gas purification system and openable left front windowDual chamber glove box with gas purification system and openable left front windowDual chamber glove box with gas purification system and openable left front window

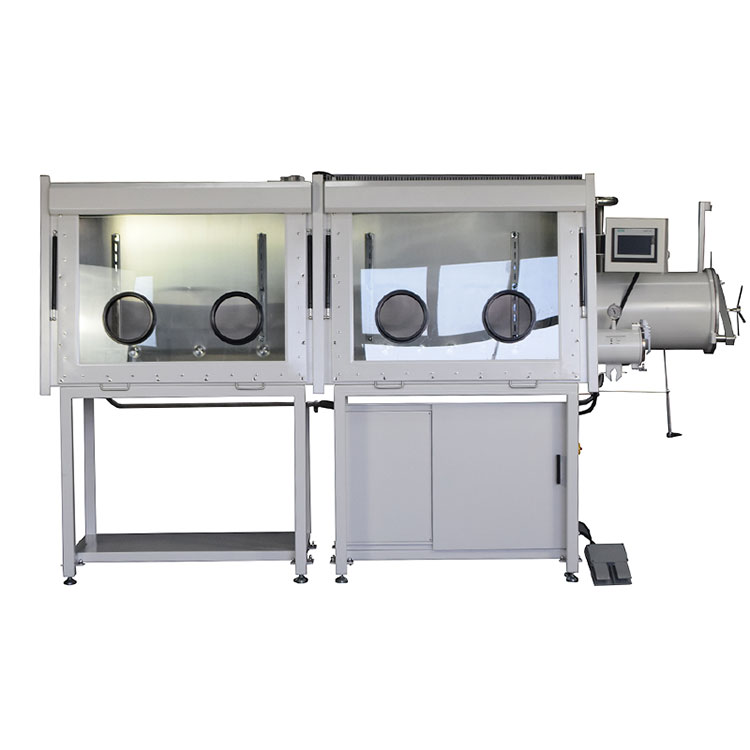

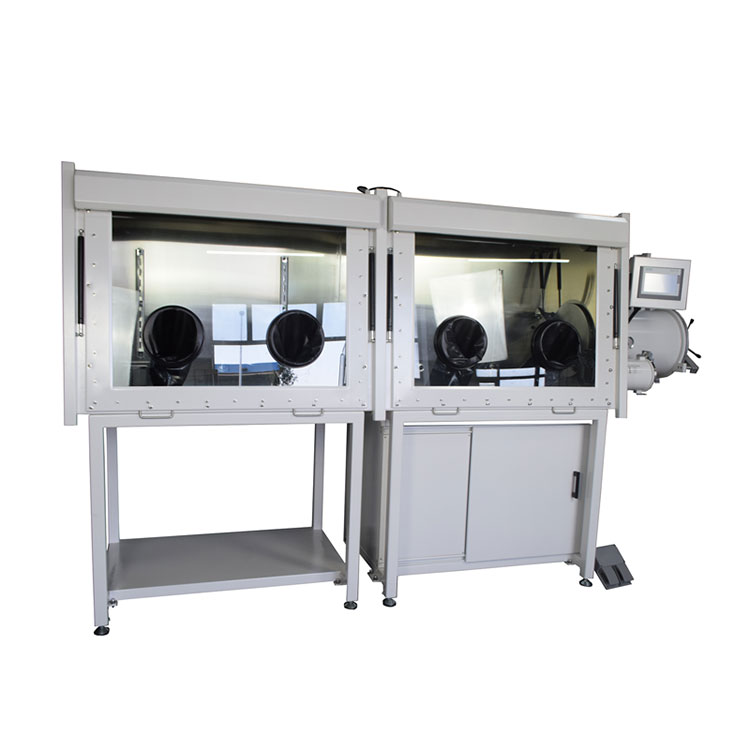

Dual chamber glove box with gas purification system and openable left front window

    CY-VGB-6-II-LD is a dual stainless steel glove box designed for researchers in material science, chemistry, semiconductor, and related topics.It is widely used in preparing nanomaterials, Li-ion battery materials, catalysts, and metallorganics.

CY-VGB-6-II-LD is a dual stainless steel glove box designed for researchers in material science, chemistry, semiconductor, and related topics. The purification cylinder is made of BASF antioxidant materials from Germany and UOP water adsorbent materials from the US in order to achieve a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in an ultra clean and highly purified gas environment. It is integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, auto alarm, and system data log recording. It is widely used in preparing nanomaterials, Li-ion battery materials, catalysts, and metallorganics.

Technical parameters of glove box:

Working Voltage

220V AC, 50/60Hz,   single phase

Max. Power Consumption

3KW

Glove Box Chamber

  • Openable left-front window panel (tempered glass, 8 mm thick)

  • Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)

  • Case Material: Stainless Steel 304

  • 12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner.

  • <0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)

  • Built-in fluorescent lamp

  • Two slidable shelves, 300mm L x 250mm W x 300mm H

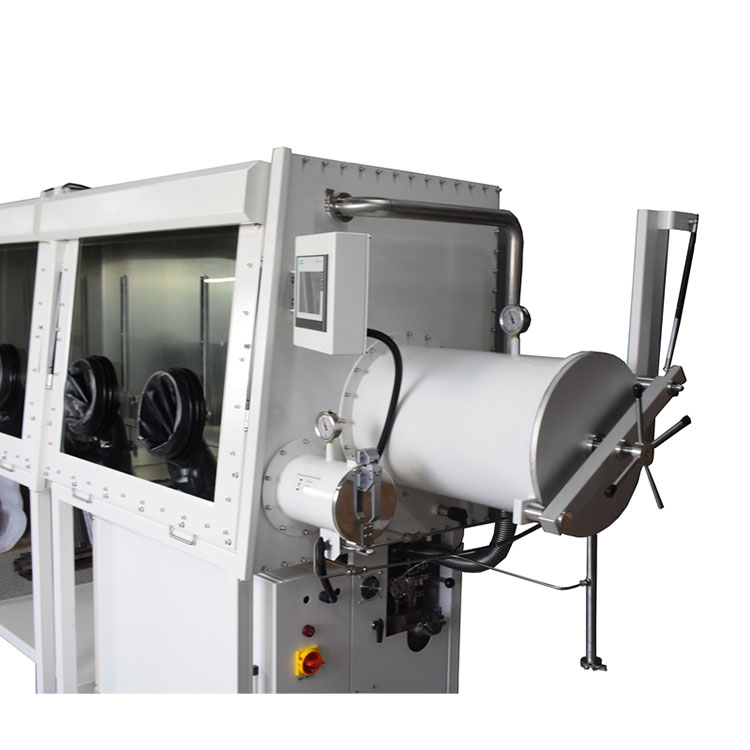

Airlock Chamber

  • Antechamber Dimensions: 385mm(Dia.) x 588mm(L)

  • Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)

  • Max. vacuum level: 100 Pa

Attainable purity level

  • Water concentration: <1 ppm (20°C, 1 atm)

  • Oxygen concentration: <1 ppm (20°C, 1 atm)

Working Gas

  • Operating gas: Inert gas such as N2, Ar, He

  • Regenerating gas: Mixture of H2 (5%) and Operating gas

Gas Purification System

  • Auto regeneration process

  • Auto purging function

  • Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials

  • Moisture removal capacity: 1.5KG

  • Oxygen removal capacity: 180L

  • Stainless steel pipe connection

  • Blower: Flow Rate: 90m³/h

Filter System

  • One Organic Solvent Filter System filled with replaceable activated carbon (5.2kg)

  • Two pieces of HEPA filters can eliminate particle size > 0.3μm

Control system

  • Siemens PLC control system with 6" touchscreen display

  • Water concentration: 0 - 1000 ppm @0.1 ppm

  • Oxygen concentration: 0 - 1000 ppm @0.1 ppm

  • Auto pressure control -25 to 25 mbar @0.1mbar

Feedthroughs

  • Power feedthrough is included.

    • power extension board with 5 outlets, 15A max.

    • Can be 110VAC or 220VAC depending on the input source

Vacuum Pump

  • 240L/m Heavy Duty Double Stage Rotary Vane Pump for faster gas exhaust

  • Vacuum rate: 7.8 cfm

  • Lowest  pressure: 0.4pa

Gloves

  • A pair of NORTH Butyl glove is included

  • protection against toxic materials

  • 8" Dia.x 32" Long

Product Dimensions

3115mm(L)   x 830mm(W) x 1830mm(H) (123" x 33" x 72")

Heatable   Antechamber (optional)

Heatable Antechamber:   200C max., DN385×588mm (L), need extra cost.

Warranty

  • One Year limited warranty with lifetime support

  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty

  • Gloves are consumable items and are not covered under warranty
