PLC controlled precision lab dip coater

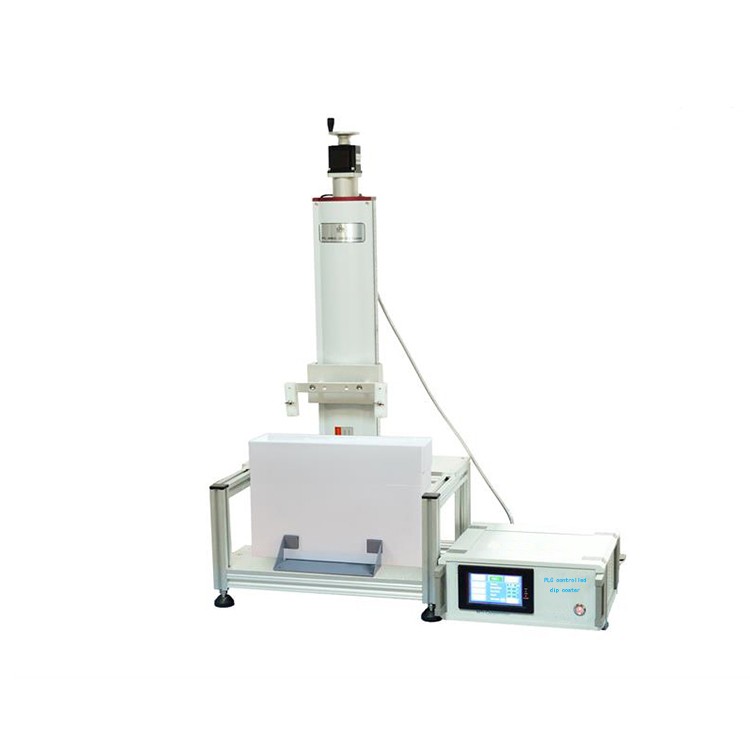

    PLC controlled precision lab dip coater is a Precision Dip Coater for coating samples with size up to 10"×12" from the liquid solution. The ball screw pulling system and 6"×4" Color PLC controller offer smooth, vibration-free travel in both directions. Pulling rate, immersion rate, dwell time, and cycling time is fully programmable. A polypropylene tank is included to hold the liquid solution.


PLC controlled precision lab dip coater is a precision equipment designed for the study of liquid phase growth films. The film is grown by vertically pulling the sample in the liquid phase.The machine is widely used in the laboratories of universities, research institutes and enterprise.

PLC controlled precision lab dip coater main feature:

1. It can coat large samples, multiple samples can be fixed by different sample holders.

2. The pulling speed of the sample, the dwell time of the sample in the liquid phase film material, and the number of cycles of the sample coating can be set.

3. The dip coater adopts high-precision speed control system and touch screen parameter input end to realize automatic control of the whole process of dip coating.

4. The machine is small in size and easy to operate. It is an ideal equipment for coating large samples in laboratory and small production workshops at room temperature.

dip coater structure.png

PLC controlled precision lab dip coater specification:

Working Voltage

110/220V AC switchable,   50/60 Hz

Max. Power Consumption

20W

Maximum Sample Load

7 kg (15.4 lbs)

Standard   Panel Size

310mm(L)×260mm(W)×(3-15)mm(Thickness)

Customized tank dimension is available upon request at extra cost

Panel Holder

Can hold one or several panels from 3-15mm thickness

Touch Screen PLC Dimensions

6"(L)×4"(W)

Insertion Speed

1 - 200 mm/minute programmable by Touch Screen PLC

Withdrawal Speed

1 - 200 mm/minute programmable by Touch Screen PLC

Max. Dry and Dwell time

999s

Max. Stroke

270mm

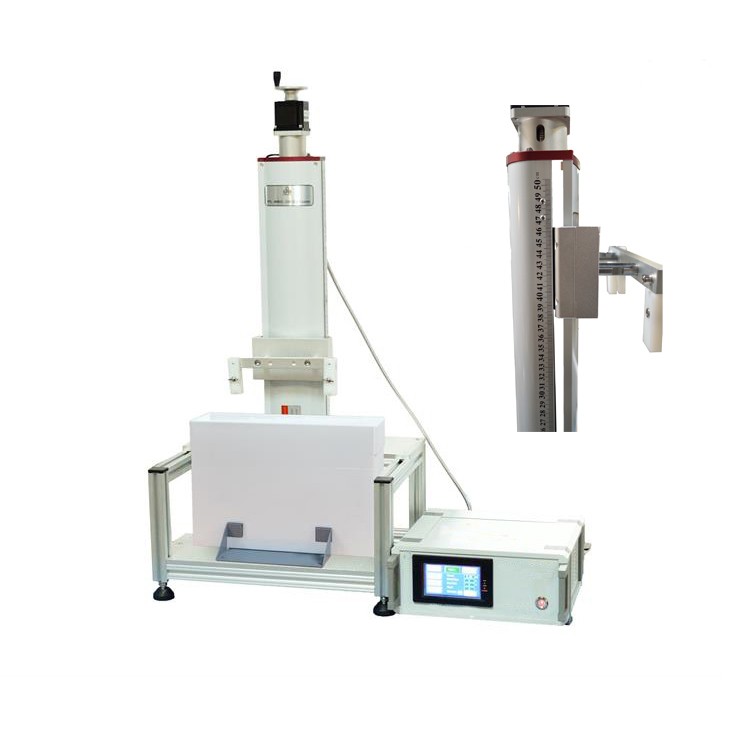

Measureme
nts are located on both sides of the   Panel holder's traveling path for a quick distance measuring.

Max. Number of Cycles

20

Speed Stability

+/-0.05%

Immersion Tank

  • Material: Polypropylene

  • Outside dimension: 360mm(L) x 60mm(W) x 290mm(H)

  • Inside dimension: 320mm(L) x 45mm(W) x 280mm(H)

  • Volume: 4L

Product Dimensions

Dip Coater:  460mm(L) x 330mm(W)   x 970mm(H)
Control Unit: 310mm(L) x 300mm(W) x 130mm(H)

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime   support

Net Weight

18 kg (39.6 lbs)
