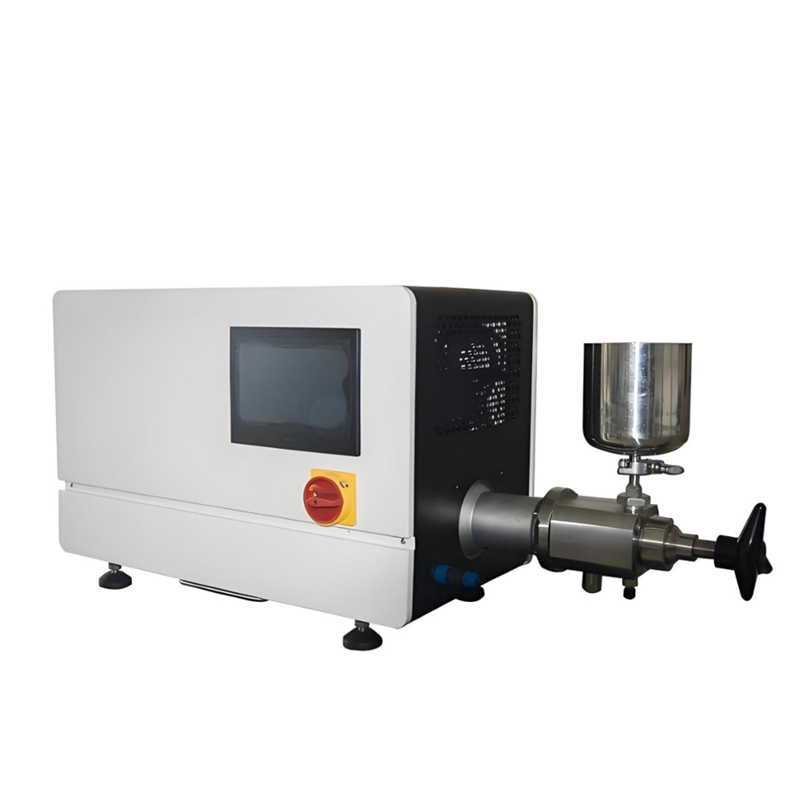

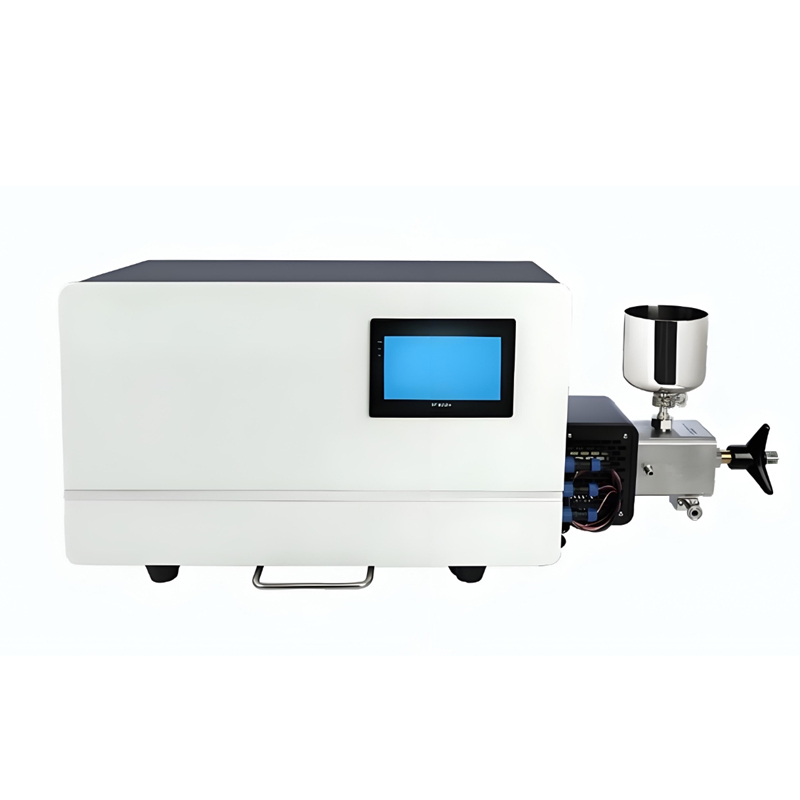

High Pressure Homogenizer is a miniaturized bench-top biological sample processing unit for cell pulverization or material homogenization in biological laboratories and small-scale production. Different samples are crushed, emulsified and dispersed by controlling pressure, flow, cavitation, impact, shear and process duration. It is also equipped with a cooling circulation system interface, with a thermostatic tank to effectively control the temperature and enhance the homogenization effect.
This model High Pressure Homogenizer is designed for continuous operation at high pressure (up to 2000 bar) and table-top laboratory unit. It will have high pressure processing of nanoparticles, nano-dispersions, nanoemulsions, dairy products, fruit juices, liquid food, food additives and ingredients, cosmetic, chemical products, etc.
It can be adapted to the R&D laboratories of universities, research institutes and enterprises in the fields of pharmaceuticals, biotechnology, cosmetics, food and beverage, graphene and so on
Technical parameters:
Maximum pressure design: | 2070bar/207Mpa/30015psi |
Operating temperature | -20-RT ( < 90 °C ) |
Mode of operation | Continuous |
Maximum working pressure | 1800bar/180Mpa/26100psi |
Maximum sample processing volume | 15L/H |
Minimum sample processing volume | 15ml |
Motor power | 3.0kw/220V/50Hz |
Maximum feed particle size | <500 microns |
Maximum allowable back pressure | ~ 5 bar |
Sound pressure level | <69 dB |
Viscosity of feed | upto 2000 cp without external pum |
Flow control | Freely adjust flow |
Feed particle size | upto 2 mm |
Sensor | Imported high-precision sensor |
Built-in cooler | equipped with a cooler, does not consume materials, controls homogenization temperature |
Accessories | Standard chiller Heat exchanger as standard |
Safe | Built-in safety protection against overpressure |
Exhaust method | online exhaust |
Electrical control | industrial-grade PLC controller |
Screen and display | 7-inch industrial-grade touch screen + integrated pressure and temperature digital display + real-time pressure display |
Instrument net weight | 95kg |
Appearance size (L*W*H): | 1100*310*460mm |
