Desktop Program control dip coater machine

    Desktop Program control dip coater machine is a kind of equipment widely used in the research of thin film in scientific laboratory research.

    Suitable for common substrates such as glass, Si (100), Si (111), sapphire (Al2O3), ceramic sheets, and resin substrates.

    Silicon wafer, wafer, glass, ceramic, metal, sheet, block, cylindrical, etc.



    1 The substrate is relatively large (the case where the dip coating method is not applicable)

    2 The shape of the substrate is special (for example, round)

    3 simultaneous coating on both sides


Desktop Program control dip coater machine pulls the sample vertically by pulling the wire to grow a film of a certain thickness on the surface of the sample. The dip coater adopts a single-board machine to control the rise and fall speed of the pulling wire, so that the elevator runs smoothly and accurately. The sample can be immersed in the liquid film material by manual control and automatically pulled back. It can also be manually pulled back by automatically controlling the immersion into the liquid film material; the dwell time can be controlled according to individual needs. The dip coater is small in size and saves test space; it is easy to operate and clean. Therefore, the machine is widely used in the laboratories of universities, research institutes and enterprise.

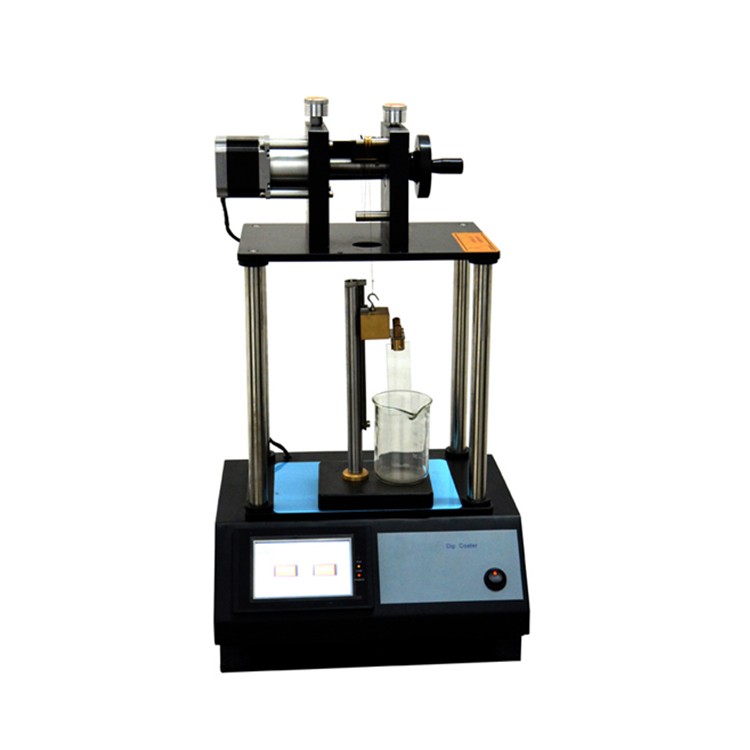

dip coater machine

Desktop Program control dip coater machine Specifications:


Dipping/Pulling



Dipping/Pulling Speed: 1-200   mm/minute Adjustable via digital panel

Travel Distance: 0-200mm Adjustable via   digital panel

Voltage

AC 110V/220V

Sample holder



Two screw sample clips are installed   in the sample holder to carry the samples sliding up and down   through one precision ball bear guide rod.

Beaker Holder

The beaker which contains the coating   material (coating solution) will be placed into the slot of the beaker holder

Solution container

One 150ml beaker is included

Max. Sample size

50mm(L) x 25mm(W) x 2.5mm(T)

Sample weight

Less than 250g

Dipping/Pulling Motor



DC Stepping motor

Product dimension

320mm(L) x 255mm(W) x 540mm(H)

Certificate

One year limited with lifetime support

Net Weight

45 lbs






Desktop Program control dip coater machine Standard package;


Item #

Description

Qty

1

Desktop Dip Coater

1

2

Screw Sample Holder

1

3

Beaker Holder with Guide Pillar

1

4

150mL Beaker

1
