Automatic ultrasonic spray pyrolysis coating equipment

Automatic ultrasonic spray pyrolysis coating equipment

Automatic ultrasonic spray pyrolysis coating equipment is a process in which a thin film is deposited by spraying a solution on a heated surface, where the constituent reacts to form a chemical compound. The process is particularly useful for the deposition of oxides and has long been a production method for applying a transparent electrical conductor of Tin oxide (SnO2) or Stannic oxide to a glass substrate.

Inquire Now

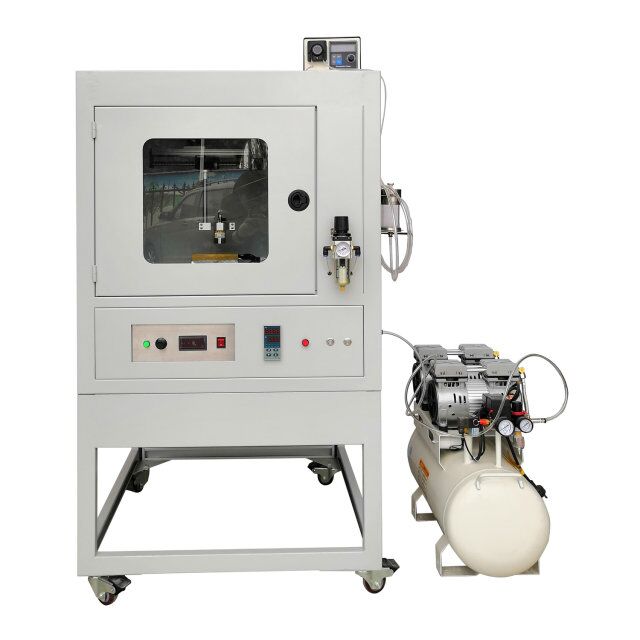

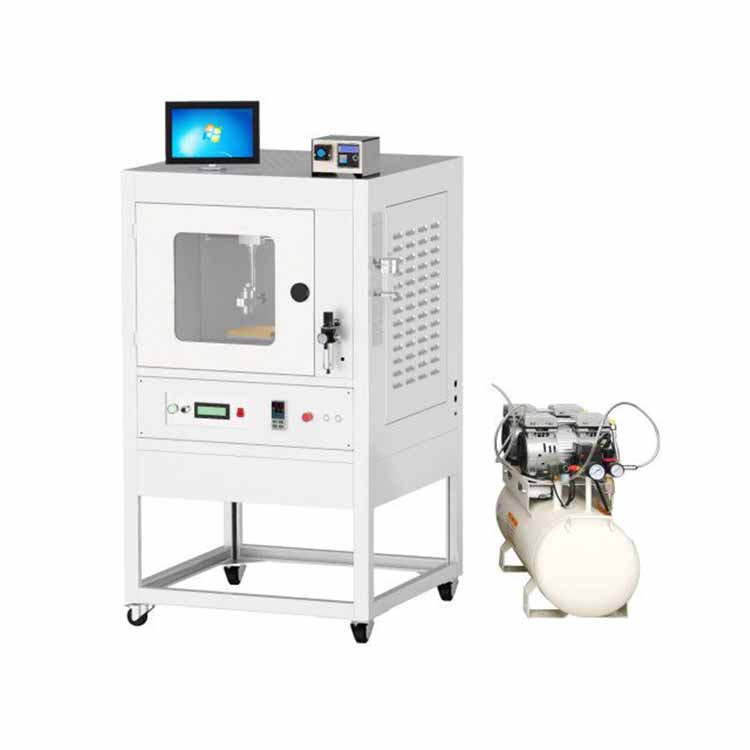

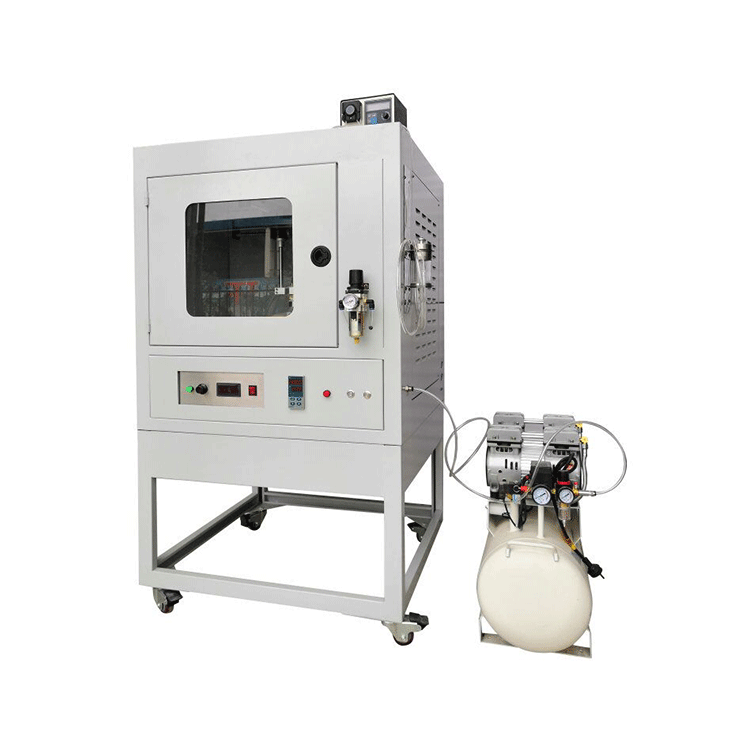

Automatic ultrasonic spray pyrolysis coating equipment is a desktop ultrasonic spray pyrolysis equipment, where parameters like dispensing rate of the solution and speed of spray head movement are precisely controlled by a software interface. A positive displacement pump controlled by a stepper motor is used to dispense solution as per requirement. The ultrasonic spray head provides thin film coating and its movement is controlled by the stepper motor driven linear stages in X and Y direction to ensure uniform coating. The spray pattern and velocity can be adjusted by changing the compressed air pressure at the nozzle. The temperature of the substrate heater plate is controlled independently through a dedicated controller.Automatic ultrasonic spray pyrolysis coating equipment.Spray pyrolysis technique is increasingly used to prepare perovskite thin film, such as in perovskite solar cell.

Automatic ultrasonic spray pyrolysis coating equipment specifications:

Power Input

• Single phase 208 - 240 VAC, 50/60 Hz

• Actuator: Stepper motor, 24 VDC

Dispenser

• Three Spray heads are included

o Ultrasonic spray head (compressed air assisted) for uniform, thin film coating

o Compressive air spray for thick film coating

o 20 mL syringe pump with compressive air port for thick film coating of small quantity solution.

• Dispensing unit capacity: 50 mL & 250 mL (two containers included) container

• Container dispensing rate: 1-20 mL / min adjustable via software

• Syringe pump dispensing rate: 20 μL/min - 10 mL/min adjustable via software

• One brand new laptop computer or one Microsoft Surface Pro with pre-installed software is included.

Sprayer

• Ultrasonic atomizer nozzle: 40 kHz, 130 W

• Producing a fine spray of droplets of 50 microns average size

• Fluid viscosity range: 1 - 50 mPa•s (cP)

• Sprayer traverse: X-Y 200 mm max

• Drive speed X axis: 10-800 mm / sec

• Drive speed Y axis: 1-12 mm / sec

• Note: you may use inner gas or compress air to shape the spray pattern and increase spray velocity

Air Compressor

• Compressed air with a pressure of ~ 4 bar is required for normal operation of the unit

• One compact air compressor is included for immediate use

Substrate Base Plate

• Dimension: 150 mm×150 mm

• Max temperature: 500°C

• PC connectivity: RS232 port (Software included, but need PC for operation)

Software

• The system controller box is connected to laptop or Surface Pro via RS232 port and USB adapter

• Centralized software control of dispensing rate, X-Y stage movement, solution loading and draining

• All of the process parameters can be saved as a user process and retrieved later for analysis or re-run

• One brand new laptop computer or one Microsoft Surface Pro with pre-installed software is included.

Warranty

One year limited warranty with lifetime support (demo before purchase available)

Compliance

CE certified
