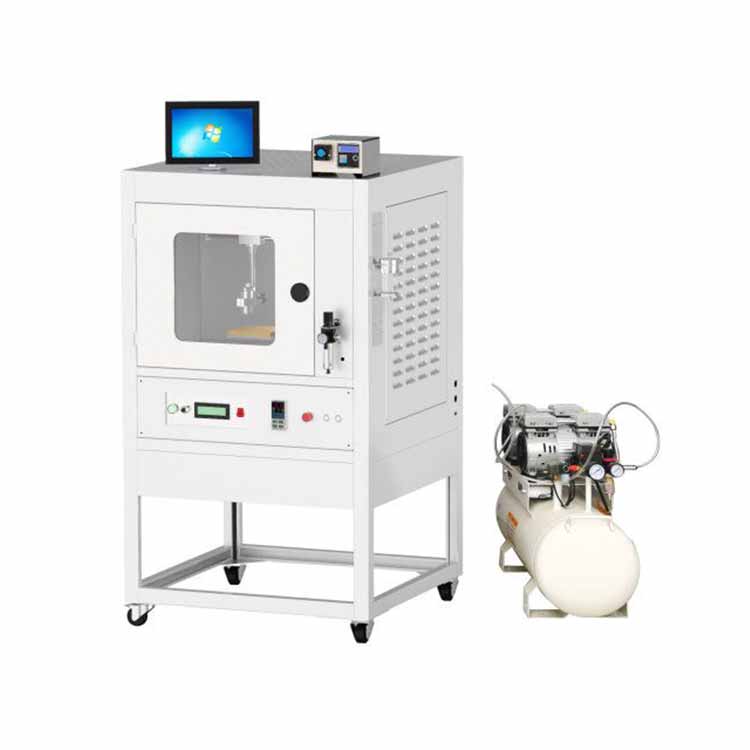

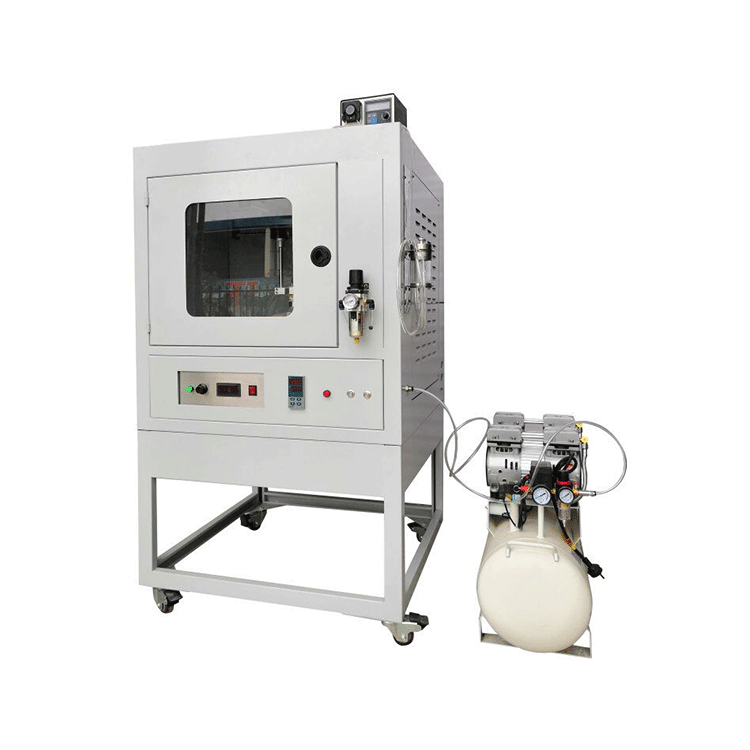

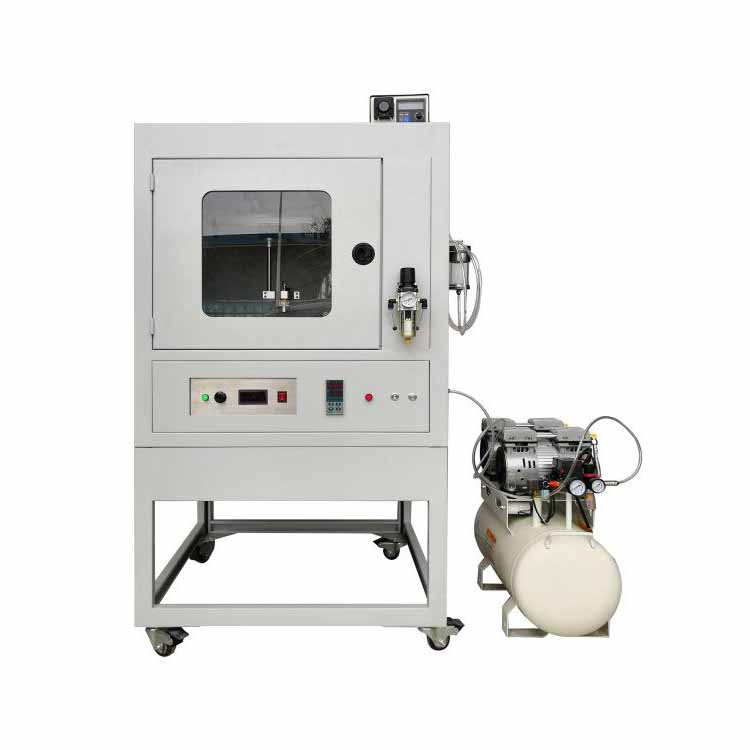

Large floor-stand automatic ultrasonic spray pyrolysis coating unit

    Large automatic ultrasonic spray pyrolysis coating unit provides expanded capacity and increased travel area for the spray head. It also provides a larger heating platform to spray coat substrates that are larger than the standard application. This model uses a fresh new design that enables the user to carry out the spray coating process in a more convenient and efficient manner.

Large floor-stand automatic ultrasonic spray pyrolysis coating unit can be separated from the bottom shelf section for use as a table top unit. This unit also provides for Nitrogen purging of the enclosure. The parameters of the ultrasonic spray pyrolysis ( USP) equipment, like dispensing rate of the solution and the speed of spray head movement, can be precisely controlled by program. A positive displacement pump controlled by the stepper motor and microprocessor is used to dispense solution as per requirement. The ultrasonic spray head provides thinner particle coating and its movement is controlled by the stepper motor driven linear stages in X and Y direction to ensure uniform coating. The temperature of the substrate heater plate is controlled independently through a dedicated controller.

Large floor-stand automatic ultrasonic spray pyrolysis coating unit specifications:


Power Input

Single phase 208 - 240VAC, 50/60Hz

Actuator

Stepper motor, 24VDC

Dispensing

     Three Spray heads are included:

o      Ultrasonic spray head: for thinner film coating

o      Compressive air spray: for thick film

o      20ml Syringe Pump with compressive air for the expensive solution of the thick film.


     Dispensing unit capacity: 50ml & 250ml ( two containers included )

     Dispensing rate: 1-10ml / sec. adjustable via software.

     One brand new laptop computer or one Microsoft Surface Pro   with pre-installed software is available for controlling.

Sprayer


     Ultrasonic atomizer nozzle: 40 KHz, 130W

     Producing a fine spray of droplets of 50 microns average size

     Fluid viscosity range: 1 - 50 mPa•s (cP)

     Sprayer traverse: X - Y 250mm max.

     Drive speed X axis (min-max): 10-800mm / sec

     Drive speed Y axis (min-max): 1-12mm / sec

Pressure Regulator & Gauge


     Pressure regulator with digital gauge is installed on the machine for precise air pressure control.

     Digital pressure gauge is operated by 3V lithium battery ( included )

Air Compressor

     Compressed air with a pressure of ~ 4 bar is required for normal operation of the unit

     One Compact air compressor is included for immediate use

     Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas   cylinder to limit the pressure within the required working range for safe operation.

Substrate base plate

     Dimension: 250×250mm

     Max. temperature: 500

     Digital temperature controller

Communication Port

RS232 (computer with windows OS can be used to control the   operations through this serial port)

Warranty

One year limited with lifetime support

Compliance

CE certified
