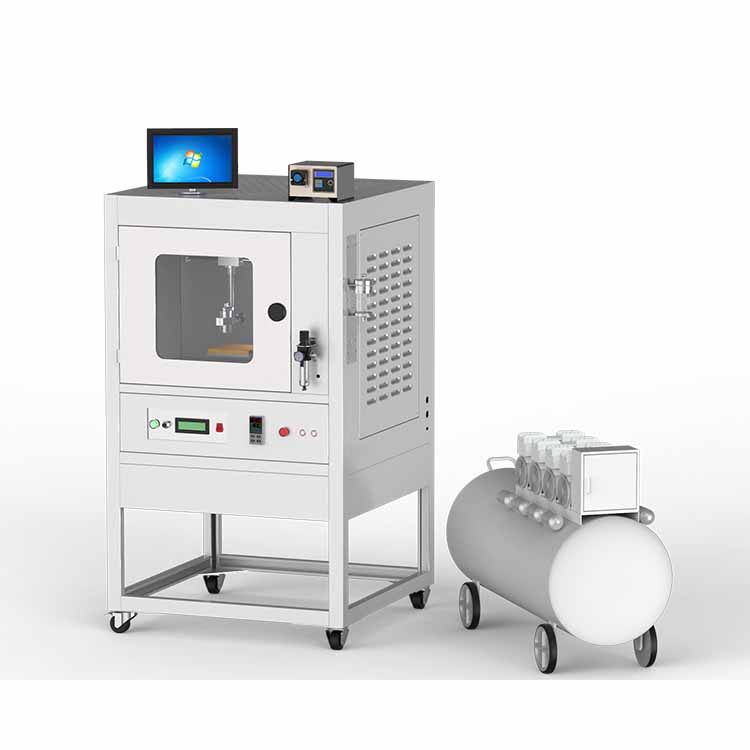

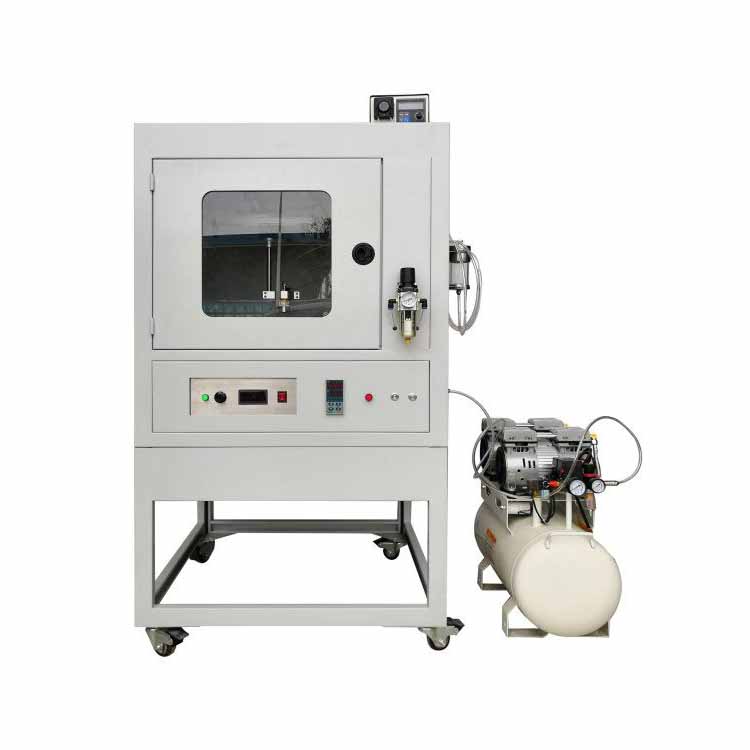

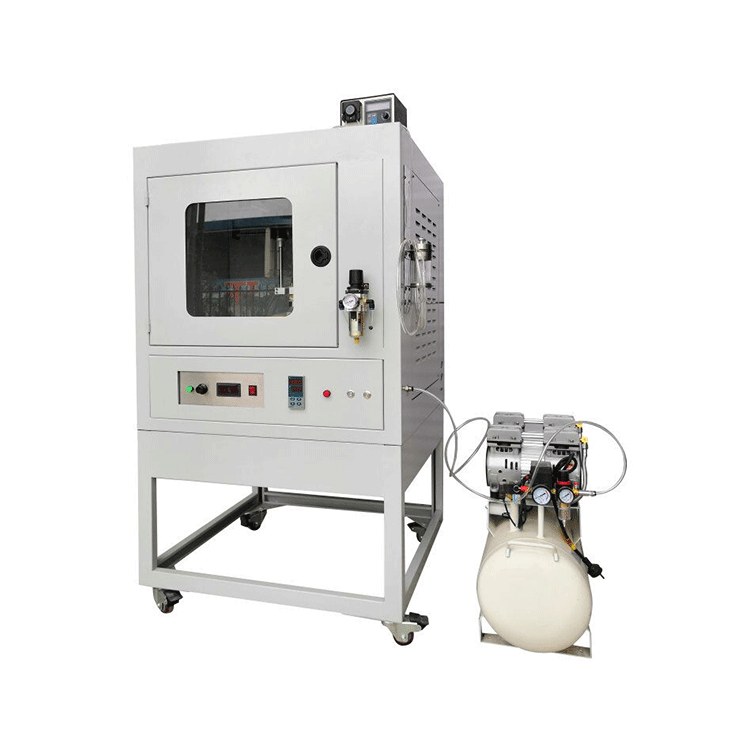

Ultrasonic spray pyrolysis coater is equipped with 40KHz 130W ultrasonic sprayer, PID temperature-controlled substrate heater plate, high precision peristaltic pump and precision programmable stepping motor moving mechanism. The integrated design of the device can accurately control the parameters such as the amount of solution, the speed of the spray particles and the size of the spray particles, and the substrate temperature can also be controlled to meet your various experimental needs.
Ultrasonic spray pyrolysis coater application range:
This material preparation method is particularly suitable for the deposition of oxides and has a long history of application in the preparation of transparent electrodes. This method is now widely used in the preparation of perovskite solar cells.
Ultrasonic spray pyrolysis coater technical parameters:
Item | Detail |
Supply voltage | AC220V, 50Hz |
Max power | 3.5KW (including compressor + peristaltic pump 1.5KW) |
Ultrasonic sprayer | 40KHz 130W |
Liquid viscosity | 1-50mPa·s (cP) |
Nozzle stroke | X-Y axis up to 190mm |
Moving speed | 10-180mm/min (x-axis direction) 10-180mm/min (Y-axis direction) |
Substrate heater plate | 150mm×150mm |
Max temperature | 500℃ |
Temperature control method | AI-PID temperature control |
dispensing tank capacity | 50mL / 250mL (two containers included) |
Peristaltic pump dispensing rate | 0.006-41mL/min |
Control method | Industrial computer + instrument panel |
Overall size | 850mm×850mm×1450mm |
