Basic Info
Model NO.: CY-GP-802
Processing Object: Gear
Controlling Mode: CNC
Cylindrical Grinder Type: End Cylindrical Grinder
Certification: CE, TUV
Aluminum Case: Heavy Duty Cast
Operation Timer: 0-99 Hours
Warranty: One Year
Transport Package: Wooden Box
Origin: Zhengzhou, China
Type: Tool Grinding Machine
Abrasives: Abrasive Belt
Automatic Grade: Automatic
Precision: High Precision
Condition: New
Master Plate Speed: 0-125 Rpm
Motor: High Torque DC Motor
Trademark: CY
Specification: 80 Dia. x 35 T mm
HS Code: 85141090
Product Description

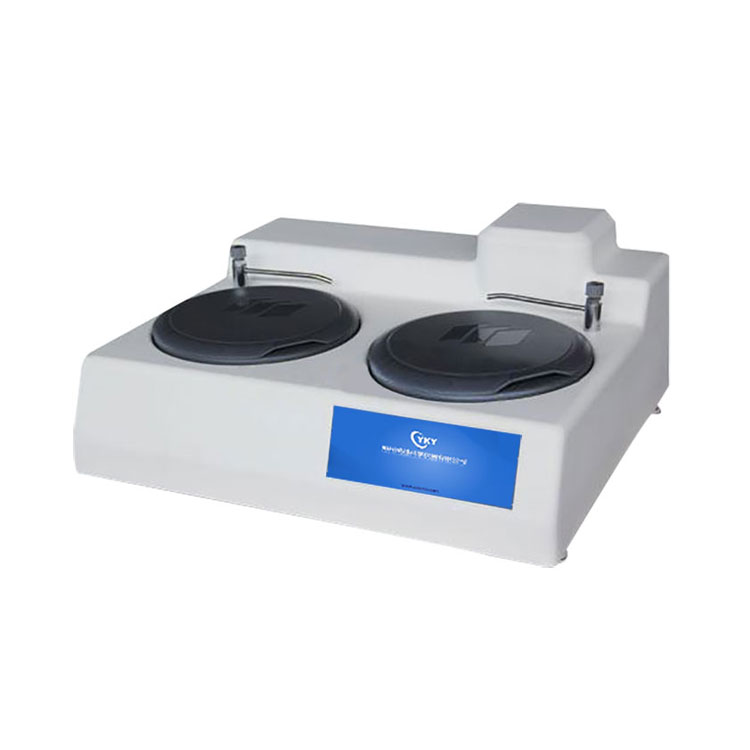

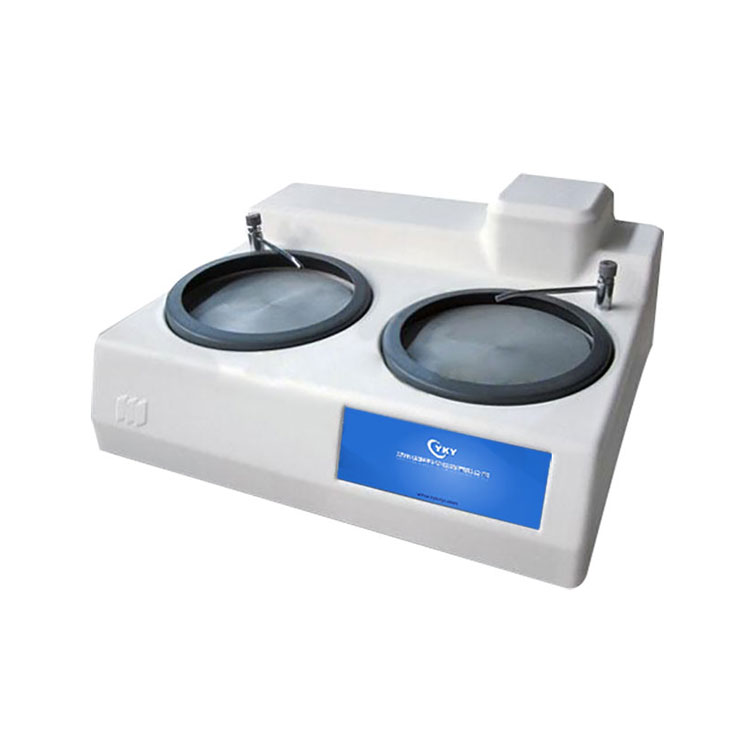

8" Precision Auto Lapping and Polishing Machine with two work stations
Introduction
This machine is equipped with 8" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 3" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well. Combining with flat sample holder (included), the three-hole metallographic sample holder (optional), and precision thinning fixture (optional), the machine can lap and polish various samples automatically.
Specification
| Power | AC 110V and 208-240V (50/60Hz) switchable for worldwide operation. |
| Features | One cast iron plate for lapping and one cast aluminum plate for polishing.
Two rocking workstations with wafer holders and condition rings can be controlled independently for polishing 2 pcs of 3" wafers in one running. |
| Super-Flat 8" Lapping Plate | Flatness < 2.5 micron / inch² |
| Precision Rotating Shaft | Running Off < 5 micron |
| Aluminum Case | Heavy Duty Cast with Bright Painting |
| Two Work Stations Rocking Speed | 8° Rocking with adjustable speed of 0 - 20 rocking / minute |
| Two Flat Sample Holders | 80 Dia. x 35 T mm for carrying <3" diameter wafer |
| Two Condition Rings | 95 O.D. x 88 I.D. x 32 T mm |
| Master Plate Speed Range | 0 ~125 rpm variable with digital display |
| Operation Timer | 0 - 99 hours |
| Motor | 300 W high torque DC motor |
| Dimensions | 525 L x 350 W x 325 H (mm) |
| Net Weight | 120 lbs |
| Optional Parts | Automatic Slurry Feeder
2" Polishing Fixture for Precision / Automatic Thinning and Polishing
Polishing Sample Holder with Three 1" Holes for Metallography
8'' high purity ceramic lapping plate |
| Warranty | One year limited with lifetime support |
