Home > Products > Grinding & Polishing Machine
Mounting Press for Metallographic Samples Xq-2b Mounting Press for Metallographic Samples Xq-2b

Mounting Press for Metallographic Samples Xq-2b

    This automatic mounting press is used to encapsulate samples for metallographic preparation. One mount can be produced at one time by using the mold spacer at 22 mm diameter. One cycle time is up to 30 minutes.

Basic Info


  • Model NO.: XQ-2B

  • Structure: Desktop

  • Certification: CE

  • Type: Mounting Press

  • Trademark: CYKY

  • Specification: Mounting Press

  • Customized: Customized

  • Material: Steel

  • Application: School, Lab

  • Product Name: Mounting Press

  • Transport Package: Wooden Case

  • Origin: China


Product Description


Mounting Press for Metallographic Samples XQ-2B

Description of the mounting press:
This automatic mounting press is used to encapsulate samples for metallographic preparation. One mount can be produced at one time by using the mold spacer at 22 mm diameter. One cycle time is up to 30 minutes.

Specification of the mounting press:

Power650W
VoltageStandard AC 208-240V 50/60Hz (For AC 110V power supply please order a 1500W voltage transformer)
Temperature Control Range100 - 180oC
Time control Range1 - 30 Min.
Pressure controlHand wheel with Pressure ready sensor
Compression MoldStandard: D22xH15 mm
Machine Dimension250x320x430 mm
Machine Net weight80 Lb.
Shipping Weight & Dimensions

120 lbs

40" x 30" x 28"

OptionalPlease order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at related product below
WarrantyOne year limited warranty with lifetime support

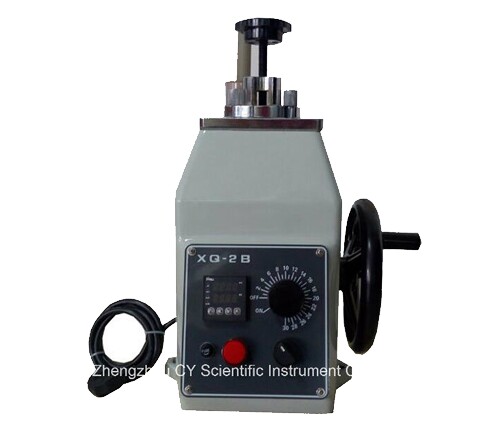

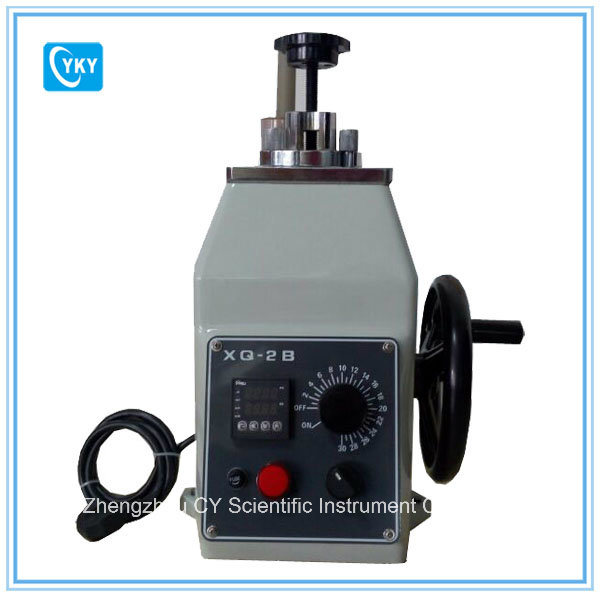

reference picture of the mounting press:
Mounting Press for Metallographic Samples Xq-2b
