Multi Purpose Precision 8" Polishing Machine / Manual Grinder, or Automatic Lapping / Polishing Machine EQ-Unipol-810 Multi Purpose Precision 8" Polishing Machine / Manual Grinder, or Automatic Lapping / Polishing Machine EQ-Unipol-810 Multi Purpose Precision 8" Polishing Machine / Manual Grinder, or Automatic Lapping / Polishing Machine EQ-Unipol-810

Multi Purpose Precision 8" Polishing Machine / Manual Grinder, or Automatic Lapping / Polishing Machine EQ-Unipol-810

Basic Info


  • Model NO.: EQ-Unipol-810

  • Structure: Desktop

  • Certification: CE

  • Type: Polishing Machine

  • Product Name: Automatic Lapping Machine

  • Transport Package: Wooden Case

  • Origin: China

  • Customized: Non-Customized

  • Material: Steel

  • Application: School, Lab

  • Variable Speed: 0 - 600 Rpm

  • Trademark: CYKY

  • Specification: 8" Polishing Machine


Product Description


Multi Purpose Precision 8"  Polishing Machine with York Support / manual grinder, or automatic lapping / polishing machine

Description of the 8" polishing machine / manual grinder / automatic polishing machine:

CY-UNIPOL 810 polishing machine is equipped with 8" super flat Aluminum lapping plate and one work sample support, as well as complete diamond lapping accessories. It can be used as a standard manual grinder, or automatic lapping / polishing machine for both flat sample and metallographic samples. It is the most cost effective solution for a material research lab.

Specification of the polishing machine:

Power

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.

Motor0.25 KW high torque DC motor
FeaturesHeavy duty cast aluminum case with beautiful painting surface.
Belt drive with high torque and quiet operation.
dia Super flat lapping plate.
Condition ring with one 75 mm dia flat sample holder for lapping polishing flat component.
dia. flat sample holder for polishing flat sample.
75 mm dia. sample holder with three holes to allow polishing three metallographic samples up to 1" dia. at one time, which is available as optional.
York supporter to allow polishing automatically.
Variable speed0 - 600 RPM
Dimensions525 L x 350 W X325 H (mm)
Aprox. net weight30 Kg
Package dimensions40" x 34" x 32"
AccessoriesTwo 8" PSA Diamond Lapping plates with 320 mesh and 600 mesh separately for fast lapping/grinding.
PSA polishing pads for final polishing.
10g 0.5 micron diamond paste for faster polishing.
Optional

3" Sample Holder with 3 Holes 1" diameter round mount and two weights 2" Polishing Fixture for Precision / Automatic Thinning and Polishing is available ( pic left-2 )

Accessory equipment (slurry feeder, carrier/chuck, thickness meter, weights, etc)

Consumables for polishing/lapping/grinding (sand paper, pad, plate, slurry, molding, coolant, etc)

               Multi-Purpose-Precision-8-Polishing-Machine-Manual-Grinder-or-Automatic-Lapping-Polishing-Machine-EQ-Unipol-810.jpg
ComplianceCE Certified
Shipping weight63 kg (140lbs )
WarrantyOne year limited with lifetime support

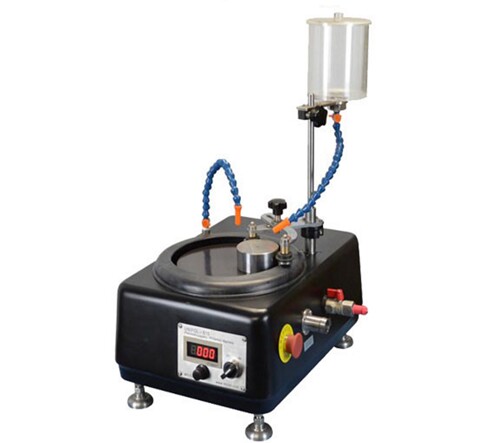

reference picture of the polishing machine:


Multi Purpose Precision 8other polishing machine:
Multi Purpose Precision 8


Multi Purpose Precision 8
Company information:
Zhengzhou CY Scientific Instrument Co., Ltd.-founded in  2013 is a high and new technology enterprise registered in Zhengzhou,Henan province. We mainly supply the lab instruments for material research in labs like the cutting machine, milling machine, polishing machine, sintering furnace, mixing machine, glove box, film coating machine, etc.
