Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessoies Cy- EQ-Unipol-1210

Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessoies Cy- EQ-Unipol-1210

    CY-EQ-UNIPOL-1210 grinding/polishing machine is equipped with 12" lapping plate and can be used as a standard manual grinder, or lapping/polishing machine for both of flat sample and metallographic samples. It is the most cost effective solution for the material research lab to prepare metallographic samples and failure analysis.

Basic Info


  • Model NO.: EQ-Unipol-1210

  • Structure: Desktop

  • Certification: CE

  • Type: Polishing Machine

  • Trademark: CYKY

  • Specification: manual grinder

  • Customized: Non-Customized

  • Material: Steel

  • Application: School, Lab

  • Product Name: Grinding / Polishing Machine

  • Transport Package: Wooden Case

  • Origin: China


Product Description


Heavy Duty ( 12") Precision Grinding / Polishing Machine with Complete Accessoies CY- EQ-Unipol-1210

Description of the precision grinding / polishing machine:
 CY-EQ-UNIPOL-1210 grinding/polishing machine is equipped with 12" lapping plate and can be used as a standard manual grinder, or lapping/polishing machine for both of flat sample and metallographic samples. It is the most cost effective solution for the material research lab to prepare metallographic samples and failure analysis.

 Speciifcation of the precision grinding / polishing machine:

Power

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.

Motor300 W high torque DC motor with one year warranty

                 Features
  • Digital control panel with "touch button" operation

  • Water resistance.

  • 12" Aluminum master plate with magnetic pad and steel buffer sheet for an easy diamond plate and sandpaper replacement.

Variable speed50 - 600 RPM with digital display
Emergency stopEmergency stop possible
Dimensions600 L x 460 W X 280 H (mm)
Hose DiameterWater hoses (for water inlet and outlet) were included
  • Hose I.D for the water outlet: 25mm

  • Hose I.D for the water inlet: 15mm

Net weight32 kg
Dimensions of shipment36" x 30" x 22"
Weight of shipment180 Lbs
Accessories
  • One 12" diameter aluminum metal plate was pre-installed with a magnetic pad.(1201-#4)

  • Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to magnetic plate stable and easy detachment.(1201-#7)

  • Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately(1201-#6).

  • Two 12" PSA black polishing pads for final polishing.(1201-#2)

  • One 10g 0.5-micron diamond paste for polishing.(1201-#8)

Compliance
  • CE Certified

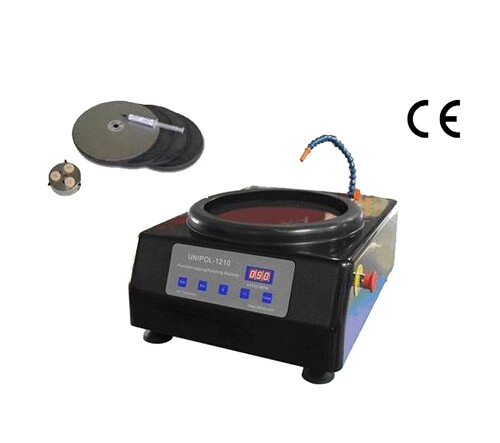

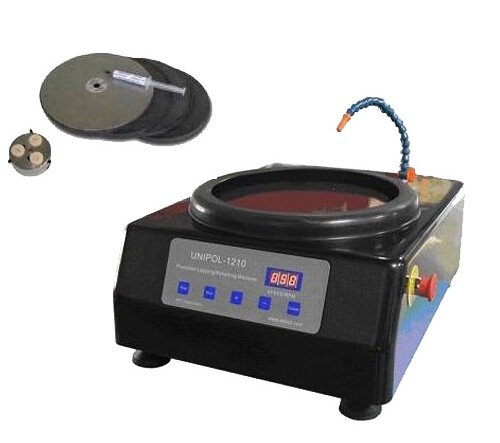

reference picture of the grinding / polishing machine:
Heavy Duty (12
