10" Programmable Precision Lapping/Polishing Machine MP-1000B 10" Programmable Precision Lapping/Polishing Machine MP-1000B

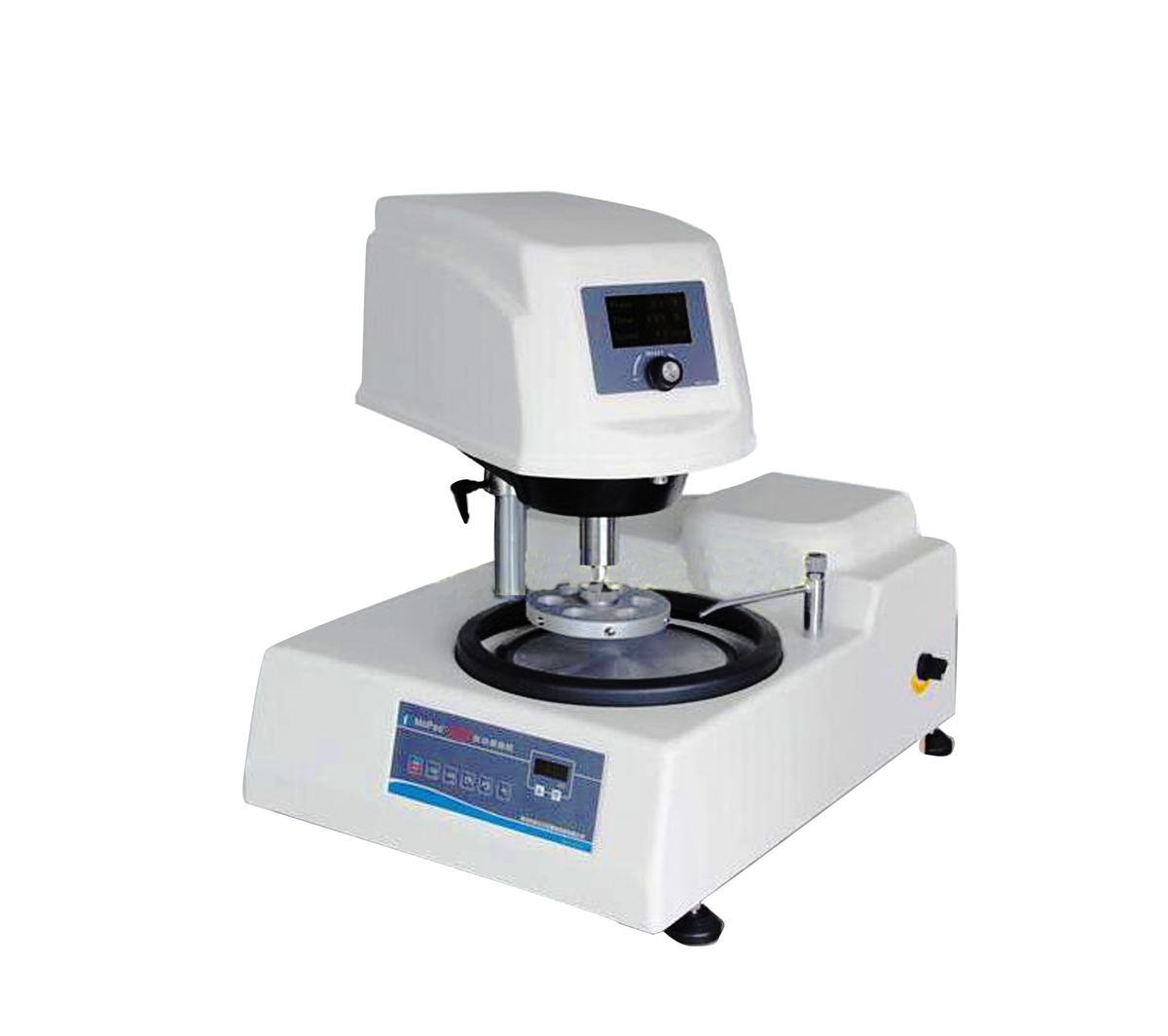

10" Programmable Precision Lapping/Polishing Machine MP-1000B

    CY-MP1000B can be used for lapping/polishing material samples, such as metal, crystal, glass, ceramic, refractory, rocks, PCB board and polymers, with size up to 10" in diameter. Customer can adjust the pressing force between the 150 mm Dia. sample loading plate (top) and 250 mm Dia. polishing plate (bottom), as well as their respective rotary speed to meet the processing requirement.

Model No.

MP1000B

Grinder/polisher diameter

Φ250mm

Rotating speed

50~600r/min,Stepless adjustable

Polishing head rotation speed

5~100r/min,Stepless adjustable

Rate of loading

5~150N

Sample preparation time

60~999s

Specimen diameter

Φ30mm

Input power

700w

Input voltage

AC220V 50Hz

Dimension

632*750*700mm

Gross weight

72kg
