Low Vacuum Laboratory Mini CVD Tube Furnace with Three Gas Channels

Basic Info


  • Model NO.: CY-1200CVD

  • Structure: Desktop

  • Certification: CE, TUV

  • Type: Heating Type

  • Tube Material: High Purity Quartz

  • Chamber Material: Alumina Fiber

  • Thermcouple: K Type

  • Trademark: CY

  • Specification: OD. 60mm

  • HS Code: 85141090

  • Customized: Customized

  • Material: Steel

  • Application: School

  • Heating Zone: Single

  • Accuracy: +/-1c

  • Heating Element: Resistance Wire

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China


Product Description

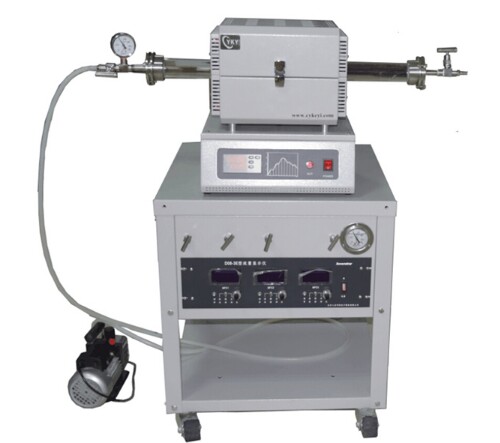

CYKY mini CVD tube furnace with 3 MFCS / CVD furnace system

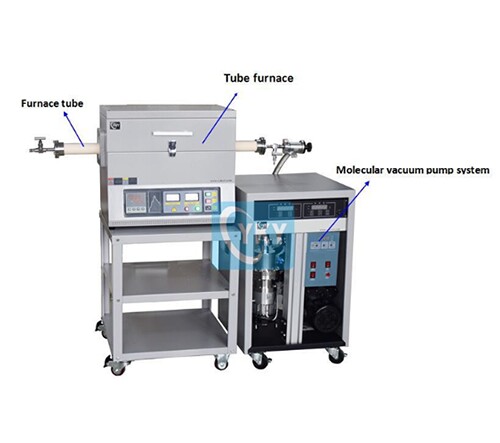

The CY-1200CVD series furnace workstation consists of a CY-O1200 series mini  tube furnace,a precision mass flow gas control station, a high vacuum station and other assembling parts. The max. working temperature of this workstation is 1200C. The ultimate vacuum rate goes to 10^-5 torr .The mass flow gas control station mixes three kinds of gas together and input the mixed gas into a fused quartz tube inside the furnace. It is competent for the experiments as CVD, Diffusion and other thermo-treatments under vacuum status and shielding gas protected.

ProductCY-1200CVD  system
Chamber TypeSplit Chamber
DisplayLED digital display
Chamber MaterialAlumina Fiber
Heating Element Resistance wire
Max Temperature1200°C
Usable Range≤1100°C
Heating Rate≤20°C(suggestion:10°C/min)
Heating ZoneSingle
Heated length220mm
Length constant temperature100mm
Tube MaterialHigh purity quartz
Tube SizeΦ50mm x700mm
Vacuum Seal1.03×10-3Pa
Temperature ControlPID automatic control via SCR power control
Accuracy±1°C
Preset curve10
ThermocoupleK Type
Working Voltage220V 50Hz~60Hz
Max. Power1.8KW
Gas Channels3 gas channels (can be designed as your requirement)
Gas controller MFCS with range of 0 -500 sccm
Vacuum pump 10 Pa Rotary vacuum pump
10(-4) Pa high vacuum pump system

Low Vacuum Laboratory Mini CVD Tube Furnace with Three Gas Channels
Low Vacuum Laboratory Mini CVD Tube Furnace with Three Gas Channels
Low Vacuum Laboratory Mini CVD Tube Furnace with Three Gas Channels
