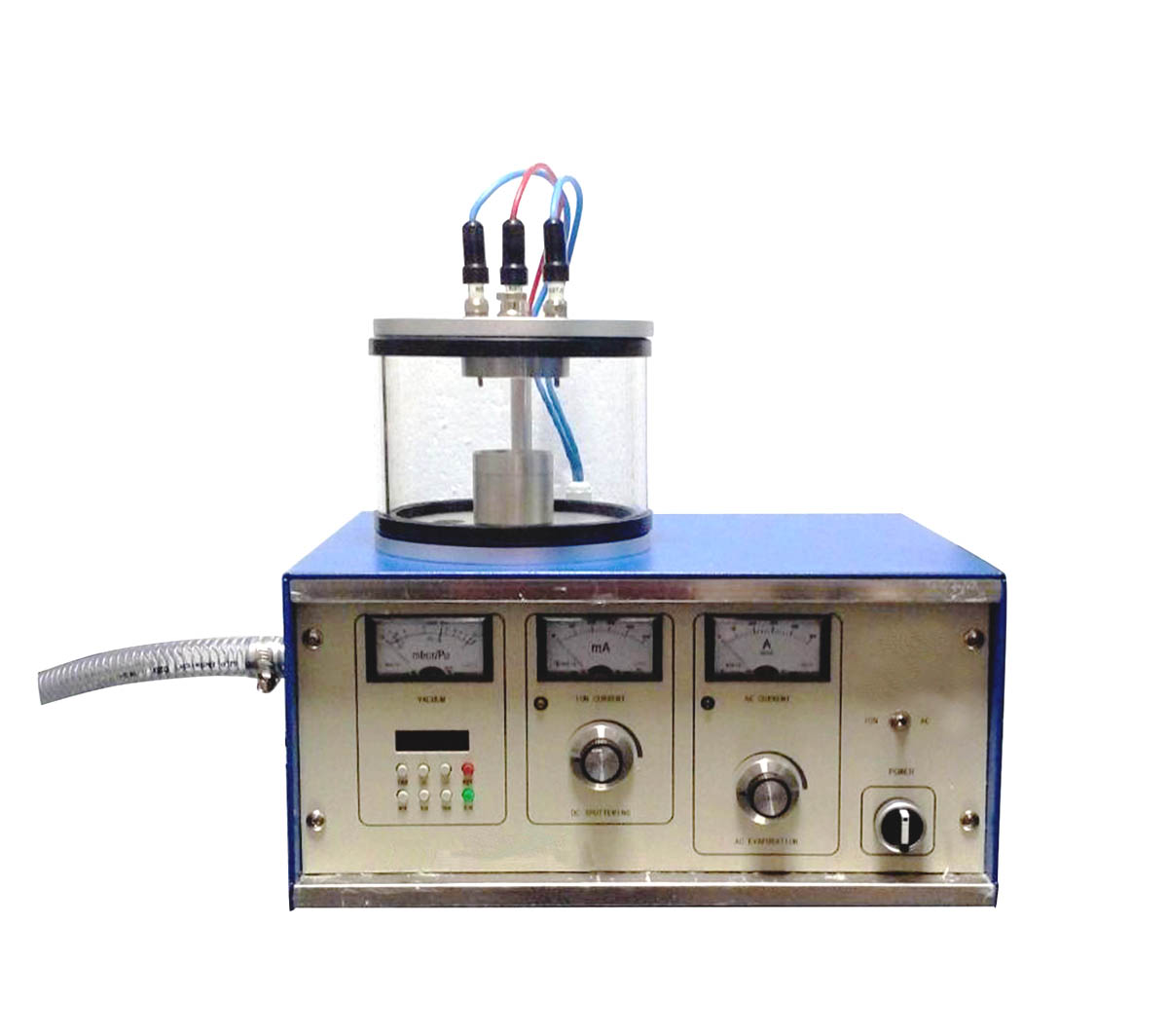

Compact DC Magnetron Sputtering&Evaporation Coater for Gold and Carbon Coating CY-1100X-SPC-16C

Compact DC Magnetron Sputtering&Evaporation Coater for Gold and Carbon Coating CY-1100X-SPC-16C

CY-1100X-SPC-16C is a CE certified compact DC magnetron sputtering and evaporation coater with a adjustable controller. It can DC sputtering coat metallic materials and evaporation carbon onto the sample with the diameter up to 50 mm


DC Magnetron Sputtering &evaporation coater

Model No.

CY-1100X-SPC-16C

Target diameter

Φ50mm

Sample stage

Φ50mm

Chamber dimension

Φ160*110mm

Vacuum degree

4×10-1mbar-2×10-2mbar

Maxi working current

50mA

Maxi Time setting

9999s

Maxi voltage

1600VDC, adjustable

Vacuum pump

Two stage rotary vacuum pump

Working voltage

AC220V  50Hz
