Mass Flow Controller (MFC) Gas Mixing System for Tube Furnace CVD System

    The gas control system is designed for the control of 1-4 types of gases flowing through vacuum-sealed tube furnaces at a low cost. The gas control system is installed in a heavy duty mobile

Basic Info


  • Model NO.: CY

  • Structure: Desktop

  • Certification: CE, TUV

  • Type: Measurement Type

  • Measurement Range: -0.1~0.15 MPa

  • Pipe Fitting: Stainless Steel

  • Trademark: CY

  • Specification: three gas channel

  • HS Code: 85141090

  • Customized: Customized

  • Material: Stainless Steel

  • Application: Lab

  • Voltage: 185~245V 50/60Hz

  • Gas Mixing Tank: Φ80X120mm

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China



Product Description


mass flow controller ( MFC ) for tube furnace CVD system

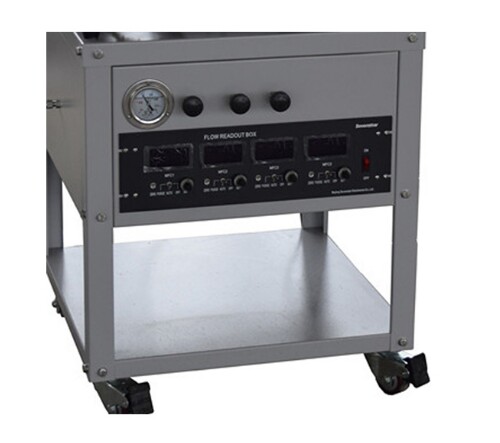

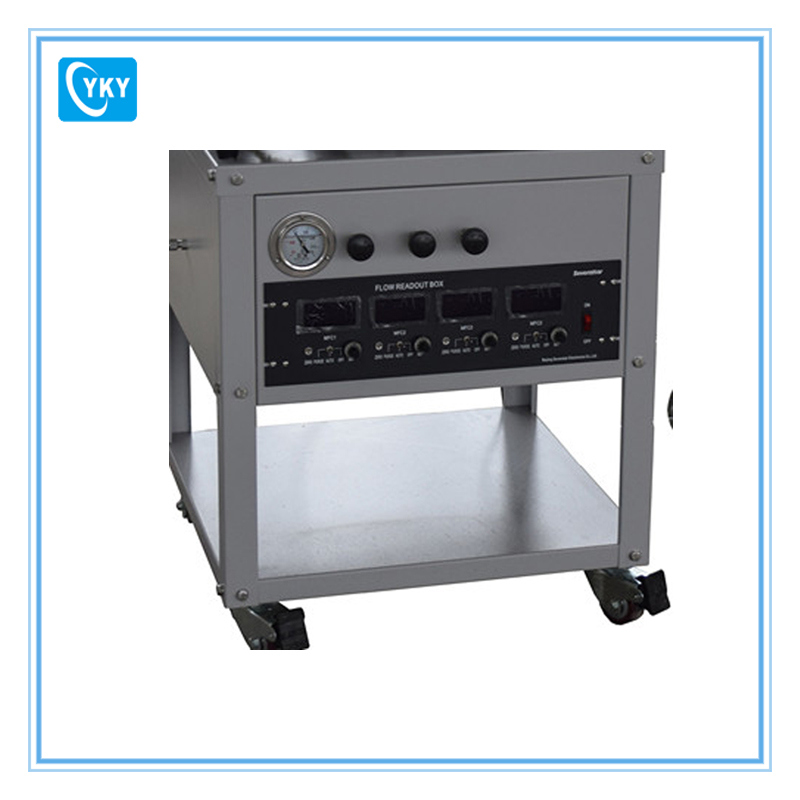

The gas control system is designed for the control of 1-4 types of gases flowing through vacuum-sealed tube furnaces at a low cost. The gas control system is installed in a heavy duty mobile

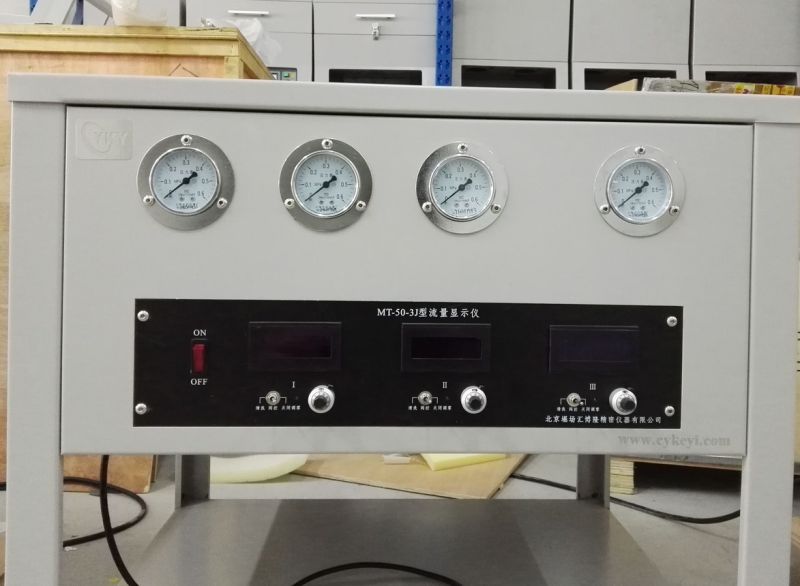

cart where the tube furnace can be placed on the top. The front panel in the system has adjust
valves and displays for the flow rate of gases. By combining with  tube furnaces, it can be used as CVD system and annealing furnace to study the gas environmental influence has on materials.

Specification


FunctionTwo ChannelsThree ChannelsFour Channels
Mass Flow
Controller

Voltage: 185~245V 50/60Hz
Max. Output Power: 18W
Working Temperature:
5~45C
Max. Pressure: 3x106 Pa
Accuracy: ±1% FS
Controlling Range:
Controller : 1~500 SCCM
Voltage: 185~245V 50/60Hz
Max. Output Power: 18W
Working Temperature:
5~45C
Max. Pressure: 3x106 Pa
Accuracy: ±1% FS
Controlling Range:
Controller : 0~500 SCCM
Voltage: 185~245V 50/60Hz
Max. Output Power: 18W
Working Temperature:
5~45C
Max. Pressure: 3x106 Pa
Accuracy: ±1% FS
Controlling Range:
Controller : 0~500sccm
Removability4 heavy duty wheels included
Max load: 500 Lbs
Mechanical
Pressure
Gauge
Measurement Range: -0.1~0.15 MPa (0.01 MPa/grid)
Needle
Valve
316 Stainless Steel
Pipe fittingPipe fitting: 1/4" stainless steel
12'' length 1/4" ID Nylon pipe for immediate use
Gas mixing
tank
Φ80X120mm
Stop valve316 stainless steel needle valve, Φ1/4"
Dimension600x600x650 mm
ComplianceCE certified
WarrantyOne year limited with lifetime support

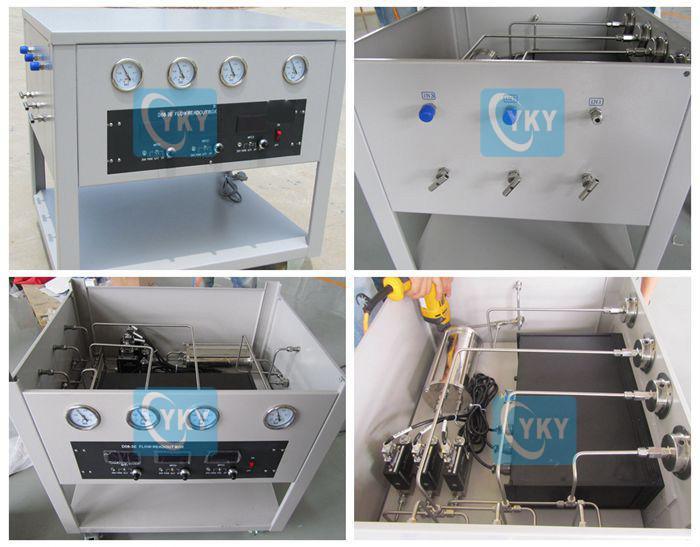

Mass Flow Controller (MFC) Gas Mixing System for Tube Furnace CVD System
Mass Flow Controller (MFC) Gas Mixing System for Tube Furnace CVD System
Mass Flow Controller (MFC) Gas Mixing System for Tube Furnace CVD System
Package

Mass Flow Controller (MFC) Gas Mixing System for Tube Furnace CVD System

Service
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C

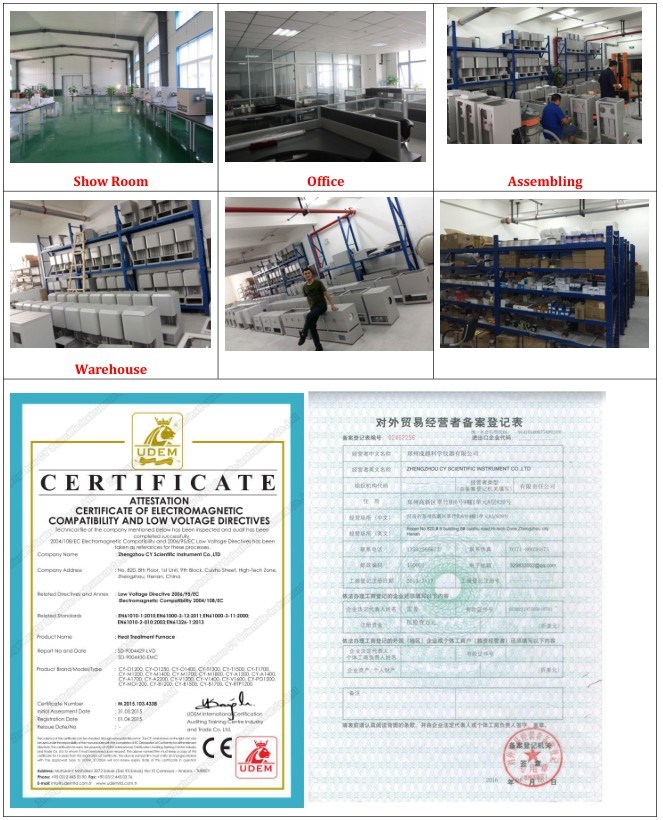

Factory
