Customized Ss-316 650c High Temperature Autoclave Reactor

    Basic Info


    • Model NO.: CY-CM-SS316

    • Material: Stainless Steel

    • Structure: Single Tube

    • Agitator Model: Paddle Agitator

    • Heating: Electric Heating

    • Automatic Grade: Semi-Automatic

    • Max. Working Temperature: 0-200c

    • Vessels: 8

    • Trademark: CY

    • Specification: 50ml

    • HS Code: 85141090

    • Type: Tank Reactor

    • Capacity: 50-100L

    • Pressure: Positive

    • Tower Reactor Type: Bubble Tower Reactor

    • Heat Transfer Structure: Combined

    • Condition: New

    • Working Pressure: 13MPa

    • Warranty: 12 Months

    • Transport Package: Wooden Box

    • Origin: Zhengzhou, China


    Product Description


    SS304 High Temperature Autoclave with PTFE lining Up to 200°C Max 13 Mpa for Rotary Oven - RC-SS
    Introduction

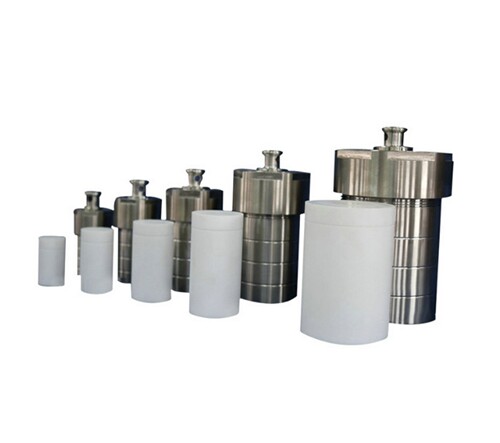

    RC-SS is one small Stainless Steel 304 high-pressure reactor with PTFE lining.  It is designed for CYKY  multiple vessel rotary oven EQ-BGP-R8.It can reach the pressure up to 13 Mpa and the temperature up to 200°C. It is used for homogeneous hydrothermal processing. The reactor size can be available from 50ml to 200ml.
     Specification

    MaterialStandard reactor is made of Stainless Steel 304 with PTFE lining
    SS 316 reactor is available upon request at extra cost
    Capacity & Dimension50 ml: 8 vessels max. in rotary oven
    100 ml: 6 vessels max. in rotary oven
    200 ml: 4 vessels max in rotary oven
    Max. Working Temperature RT -  200 °C Max
    Working Pressure13 Mpa or 2000 PSI
    Application NoteDue to the high-pressure gas output from the gas cylinder, it requires high-pressure gas pressure
    regulator to reduce the output pressure, avoid overpressurizing the furnace chamber and ensure
    a safe operation.
