    Ni-Based Super-alloy High Pressure Hydro-thermal Reactor 1100C, Optional Volume 65ml & 100ml

Basic Info


  • Model NO.: CY-1100X

  • Structure: Portable

  • Certification: CE

  • Type: Measurement Type

  • Temperature Accuracy: +/-1c

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China

  • Customized: Customized

  • Material: Alloy

  • Application: School

  • Working Temperature: 1100c

  • Temperature Controller: 30 Segments Programmable

  • Trademark: CY

  • Specification: 100L

  • HS Code: 85141090


Product Description


Ni-Based Super-alloy High Pressure Hydro-thermal Reactor 1100C, Optional Volume 65ml & 100ml
Introduction

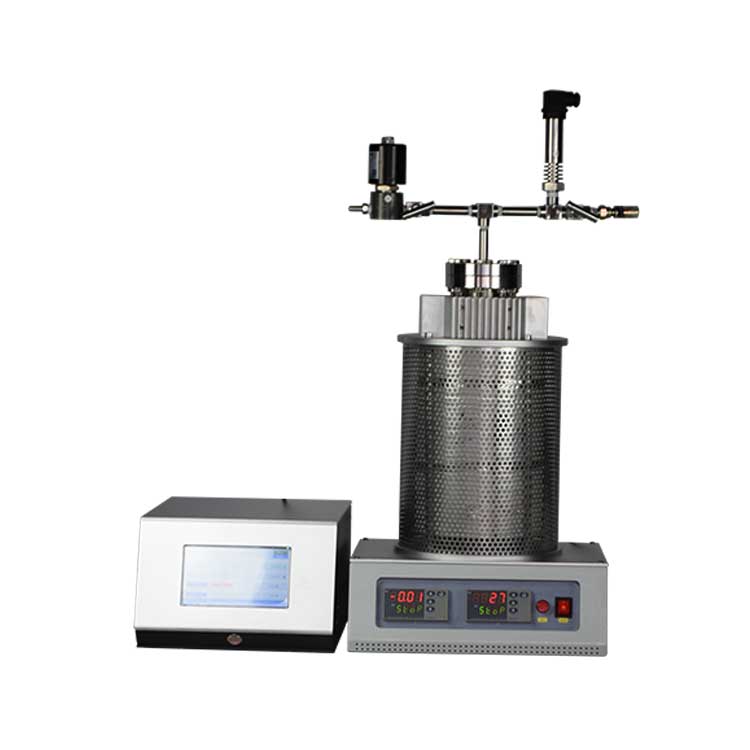

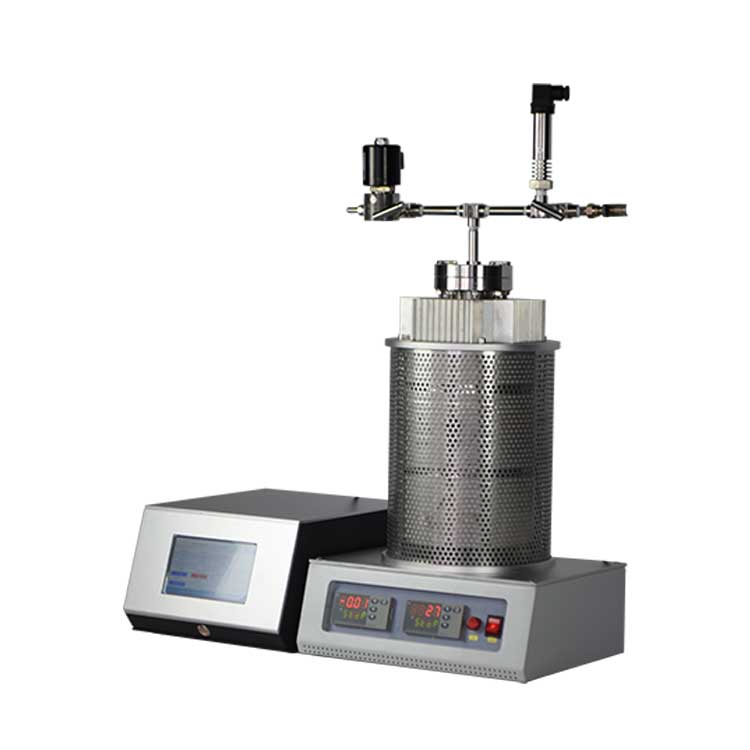

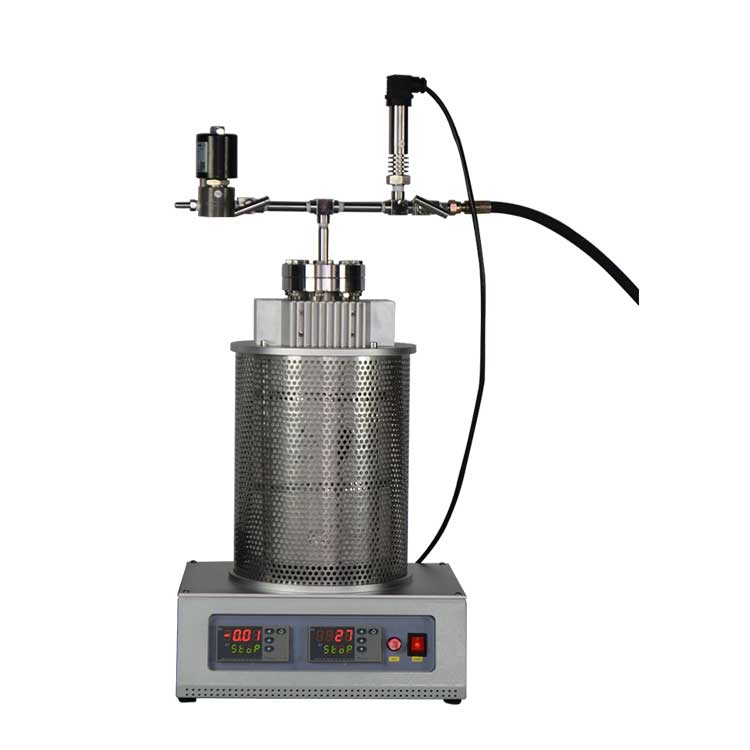

RC-Ni is reactor made of Ni-Base Super-alloy, which has excellent creep strength and anti-oxidation. It can reach 1100 °C with a pressure up to 4Mpa under oxygen or inert gased. It is an ideal tool for preparing advanced material by hydro-thermal method, especially heat treat sample under high oxygen pressure. A solenoid valve is installed on the flange allows auto-pressure relief control. Temp. Control and Pressure Real-time Monitoring software is also included.

Specification:


Structure
Warning: For your safety, the high pressure vessel and furnace must be placed
inside an
explosive-proof box or case during using under high pressure. Never face
on top flange without protection to avoid accident.
Working VoltageAC 208~240V, Single Phase
Pressure VesselMade of Ni-Based Super-alloy, optional at 65&100ml ( click pic 1 to order spare )
Air cold flange via aluminium heat radiator
Liner inside vessel with various materials is available upon request at extra cost
Attention: Processing Tube is consumable part
Ni-Based Superalloy High Pressure Hydro-thermal Reactor
Reactor Capacity
 & Dimensions
55 mm OD x 20 mm ID x 214 mm height, 65 mL capacity
65mm OD x 25mm ID x 210 mm height, 100 mL capacity
Working
Temperature
& Controller
RT - 1100 °C Max.
Digital temperature controller with 30 segment programmable
Temperature accuracy +/- 1°C
Working Pressure36 MPa (5292 PSI) Max at 500°C
24 MPa (3528 PSI) Max. at 800 °C
14 MPa (2116 PSI) Max. at 900 °C
7 MPa (1058 PSI) Max. at 1000 °C
4 MPa (588 PSI) Max. at 1100°C

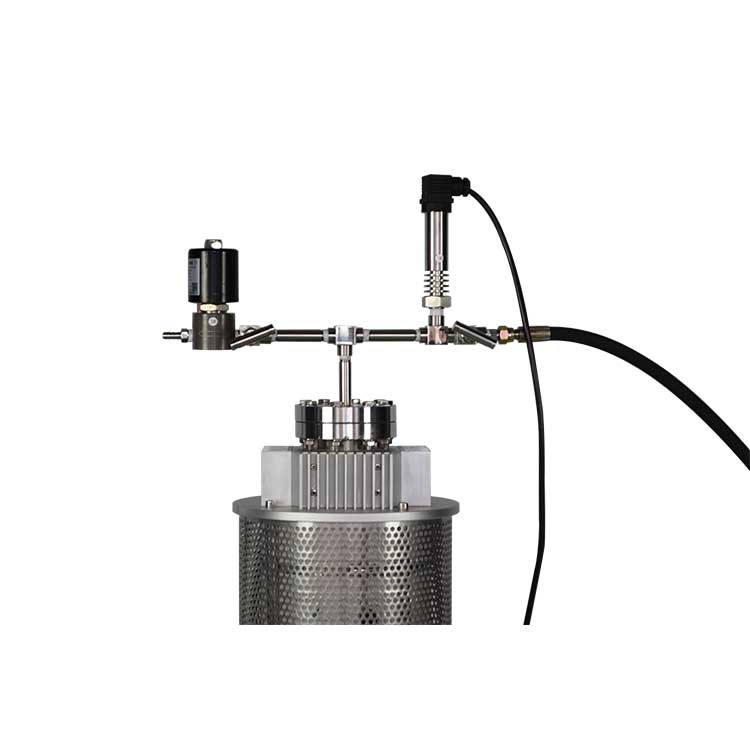

Pressure
Monitoring
and Relief
Precision high pressure sensor (measurement Range upto 250 bar) installed
on pressure vessel.
Pressure monitor can display pressure in Bar. It also allows user to define the
high pressure alarm set point.
When pressure reaches the alarm set point (Max.15Mpa), pressure inside the
vessel
will be released via the solenoid valve installed on the flange. For
Max.pressure >15 Mpa,
 please shut off the manual needle valve nearby the solenoid valve.)
AccessoriesSS316 needle valve with 1/4 pipe connector & Pressure gauge included
Two Copper Gasket 48mm O.D are included, which is consumables
