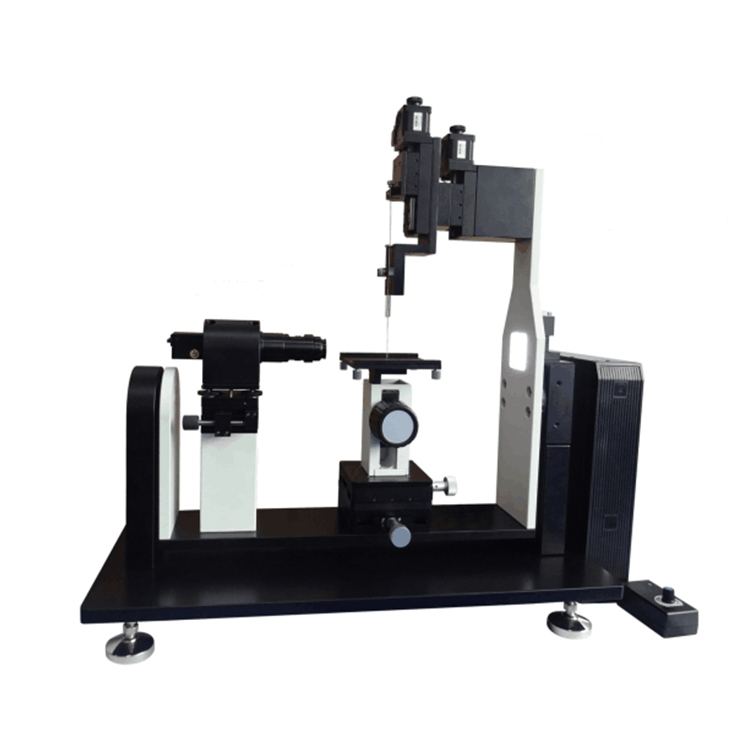

Dynamic Contact Angle Meter/Contact Angle Tester (Dynamic Integral Inclined Type)

Dynamic Contact Angle Meter/Contact Angle Tester (Dynamic Integral Inclined Type)

    Dynamic Contact Angle Meter is widely used in biochemical industry, nanotechnology, coating technology, water-resistant materials, science, education, military and other cutting-edge areas of testing and research.

In this product, besides the static contact angle measured by stop-drop method, the dynamic contact angle (including forward contact angle, backward contact angle and rolling angle) can be measured and analyzed by inclined plate method. At the same time, the liquid surface tension can be measured, the solid surface energy can be estimated and the wettability can be analyzed. Widely used in biochemical industry, nanotechnology, coating technology, water-resistant materials, science, education, military and other cutting-edge areas of testing and research.

Dynamic Contact Angle Meter/Contact Angle Tester Specifications:

Model

CY-CAM33

Drip System

Drip Way

Automatic Type

Min. Drip Volume

0.1μl / Drop

Drip Precision

±0.05μl

Contact Angle Test

Calculation Method

Height-Width Method, Angle Measuring Mmethod, Ring   Method, Ellipse Method, Fitting Method, Young-Laplace Method

Test Range

180°

Test Error

±0.1°

Test Resolution

0.001°

Surface / Interfacial Tension Test

Calculation Method

Manual Method, Automatic Method

Test Range

0.011000mN/m

Test Error

±0.1%

Test Resolution

0.001mN/m

Estimation of Surface Energy

Estimation Model

Fowkes, Extended Fowkes, Owens-Wendt, van OSS, Wu Harmonic Mean, Equation of State

Liquid Database

Preset urface tension and component data of 37 kinds   of commonly used liquids

Inclined Sample Stage

Mesa Dimension

X100×Y90mm

Mobile Stroke

X50×Y50×Z50mm

Mobile Mode

Manual

Inclined Mode

Automatic

Inclined Range

±90°

Inclined Error

±0.01°

Dimension

W585×D280×H650mm

Weight

25kg

Power

AC220V 50HZ

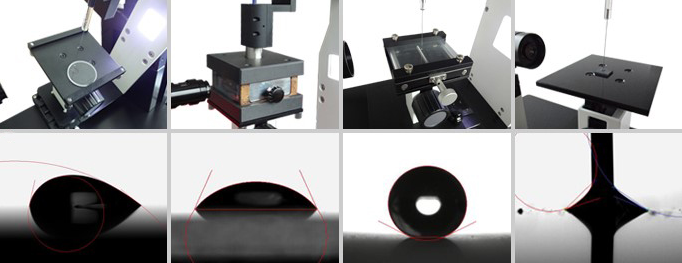

Examples of Application:
