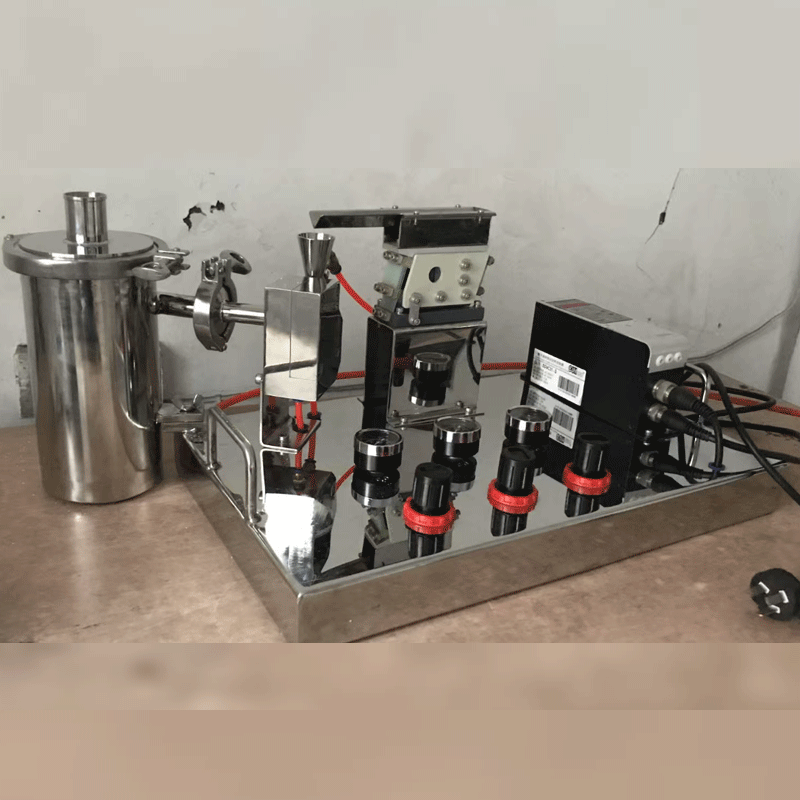

Compact jet mill with cyclone

Material: The outer shell is stainless steel 304, the inner corundum ceramic is lined, and the crushed material is non-polluting.

Air consumption: 0.3m3/min

Working pressure: 0.8-1.0MPa

Processing capacity: 2-100g/h

Fineness of crushed product: D50=5 microns, adjustable

Features: Simple operation, convenient cleaning, lined with corundum ceramics, no pollution to crushed materials. The crushed product has a narrow particle size distribution, which is the first choice for ultrafine crushing equipment for small batches of various materials and strict pollution control requirements.

Quantity: 1 set. Accessories: Collect 2 PTFE-coated cloth bags.

2 Supporting pressure regulating vibration feeder

Model: SDVC10-S:

Power supply: 220V 50Hz

Dimension:490x280x250mm

Features: The operation is convenient, intuitive and clear. The amount of blanking is controlled accurately.

3 Matching cyclone

Material 304

Quantity one set

Packing list
