Laboratory 1700℃ High Temperature Muffle Furnace with 120*120*130mm chamber CY-M1700-2L

    Application

    Muffle furnace are mainly used in metallurgy, glass, heat treatment, li-ion battery anode materials, new energy, abrasive and other industries to determine material under the condition of a certain atmosphere of professional equipment.


Features

1. LCD touch screen with PID Programmable control

2. CE certified, quality warranty

3. High quality alumina fiber, good heat preservation effect

4. 30 steps Programmable and SCR accuracy temperature control

5. Clear heating element, no color greening changing

6. Low power, energy conservation and environmental protection


Technical parameters

ModelCY-M1700-2L
Chamber modelSide Door
Display7” LCD Touch Panel
Limiting temperature1700℃
Working temperature≤1650℃
Heating rateSuggestion 0~20℃/min
Temperature accuracy±1℃
Inside chamber size120*120*130(mm)

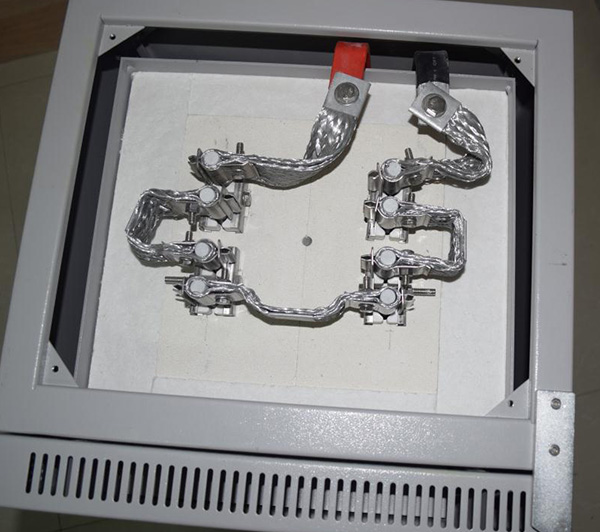

Heating element1800 type MoSi2
Thermal coupleB Type
Temperature controlPID automatic control via SCR power control
Heating curves30 steps programmable
Chamber materialAlumina Fiber
Rated power2.5 KW
Working voltageAC 220V, 50-60Hz
PackingPLY wood box
AccessoriesDoor block 1 piece,glove 1pair, crucible tongs 1pc, manual book
