Laboratory 1200℃ high temperature mini muffle furnace with capacity 1L CY-M1200-1L Laboratory 1200℃ high temperature mini muffle furnace with capacity 1L CY-M1200-1L Laboratory 1200℃ high temperature mini muffle furnace with capacity 1L CY-M1200-1L Laboratory 1200℃ high temperature mini muffle furnace with capacity 1L CY-M1200-1L

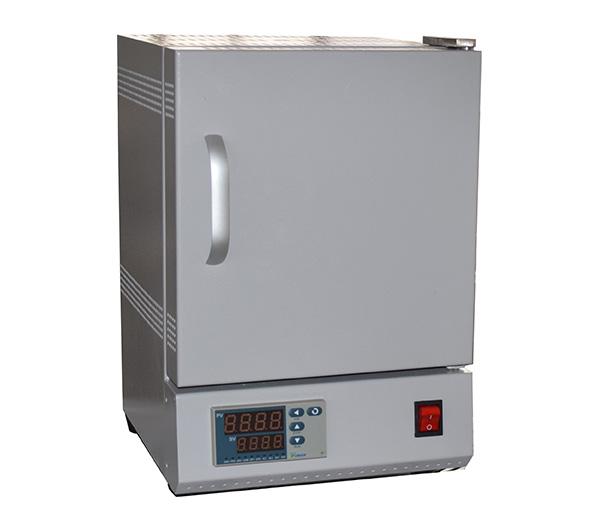

Laboratory 1200℃ high temperature mini muffle furnace with capacity 1L CY-M1200-1L

    Application

    The mini muffle furnace are mainly used in laboratory 1200 degree heat treatment, li-ion battery anode materials, ashing,dental porcelain sintering and etc. Compact dimension can allows user put the muffle furnace into glove box or some other chamber space.

Featrues

  • 1100 °C maximum operating temperatures

  • P518 digital controller, with single ramp to set-point & process timer

  • Ideal for ashing foods, plastics, coal & other hydrocarbon materials

  • Wire elements are protected from chemical & mechanical damage by a hard wearing alumina based liner

  • 3 sided heating,make sure chamber heating zone uniform

  • Reheating of air before it enters the chamber gives excellent uniformity

  • Over-temperature protection


Technical parameters

ModelCY-M1200-1L
Chamber modelSide Door
DisplayLED Button Controller
Limiting temperature1200℃
Working temperature≤1100℃
Heating rateSuggestion 0~20℃/min
Temperature accuracy±1℃
Inside chamber size100*100*100(mm)
Heating elementAludirome
Thermal coupleK Type
Temperature controlPID automatic control via SCR power control
Heating curves30 steps programmable
Chamber materialAlumina Fiber
Rated power0.75KW
Working voltageAC 220V, 50-60Hz
PackingPLY wood box
Accessoriesglove 1pair, crucible tongs 1pc, manual book
