1700℃ 18L muffle furnace 250*250*300mm chamber capacity CY-M1700-18L 1700℃ 18L muffle furnace 250*250*300mm chamber capacity CY-M1700-18L

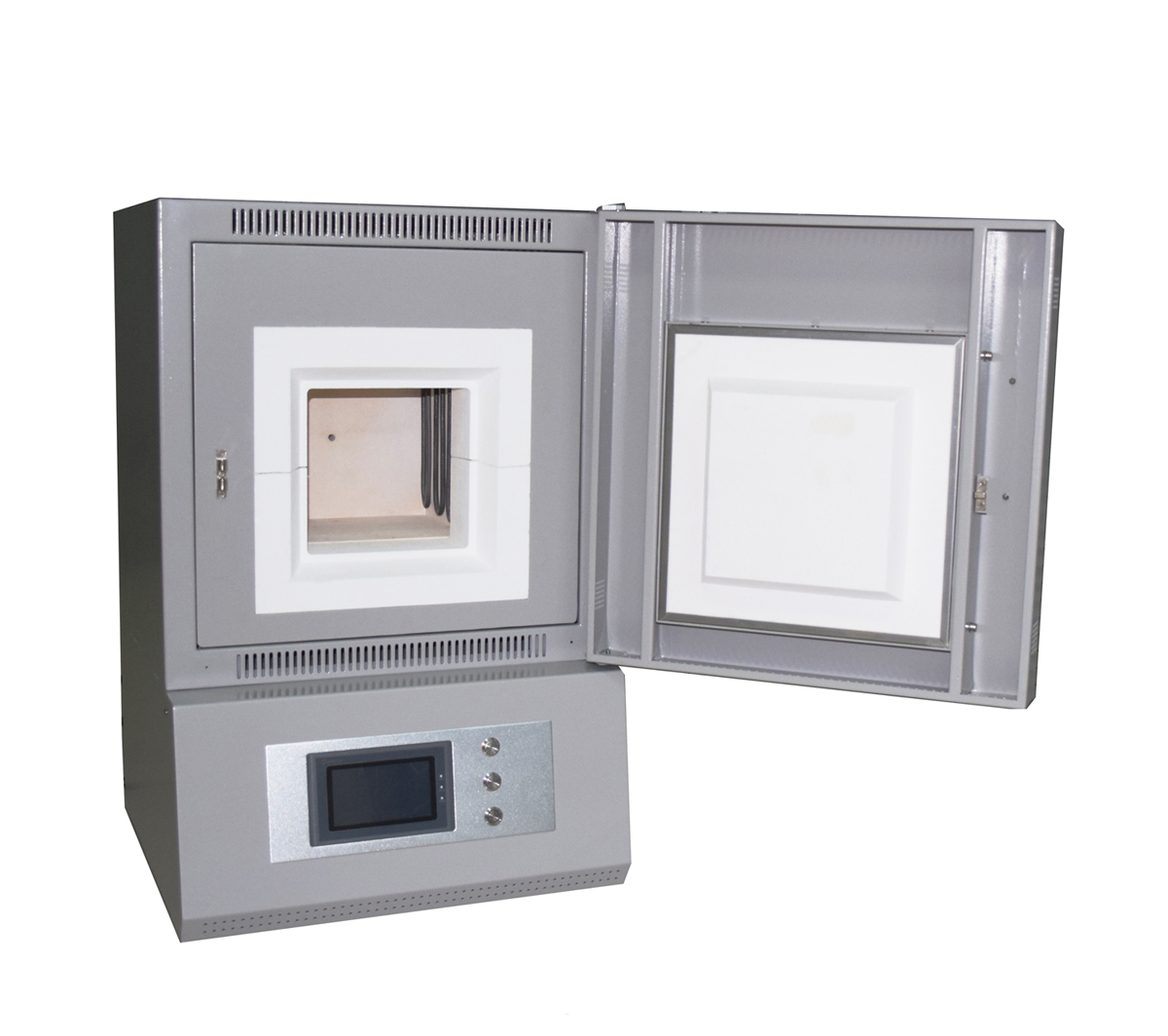

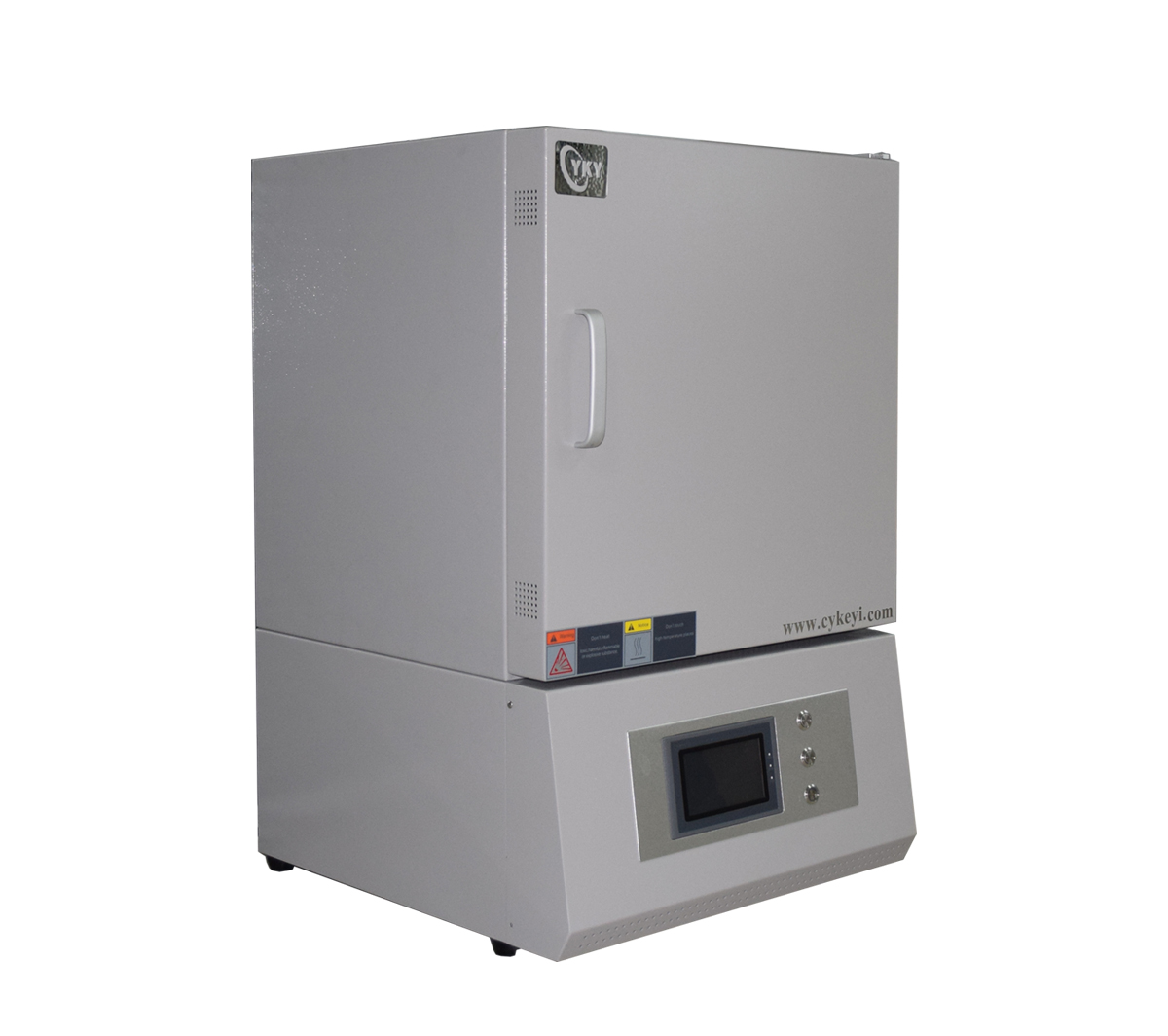

1700℃ 18L muffle furnace 250*250*300mm chamber capacity CY-M1700-18L

    1. 7" LCD touch screen with PID Programmable accuracy control

    2. CE certified, quality warranty

    3. High quality alumina fiber, good heat preservation effect

    4. 30 steps Programmable and SCR accuracy temperature control

    5. Clear heating element, no color greening changing

    6. Low power, energy conservation and environmental protection


Model

CY-M1700-18L

Chamber model

Swing Door

Display

7” LCD Touch Panel

Limiting temperature

1650℃

Working temperature

≤1650℃

Heating rate

Suggestion 0~20℃/min

Temperature accuracy

±1℃

Inside chamber size

250*250*300(mm)

Heating element

High purity MoSi2 heating rods

Thermal couple

B Type

Temperature control

PID automatic control via SCR power control

Heating curves

30 steps programmable

Chamber material

Alumina Fiber

Protective

Built-in over-temperature alarm and thermocouple failure alarm

Rated power

5.5 KW

Working voltage

AC 220V, 50-60Hz

Packing

PLY wood box

Accessories

Door block 1 piece,glove 1pair, crucible tongs 1pc, manual book
