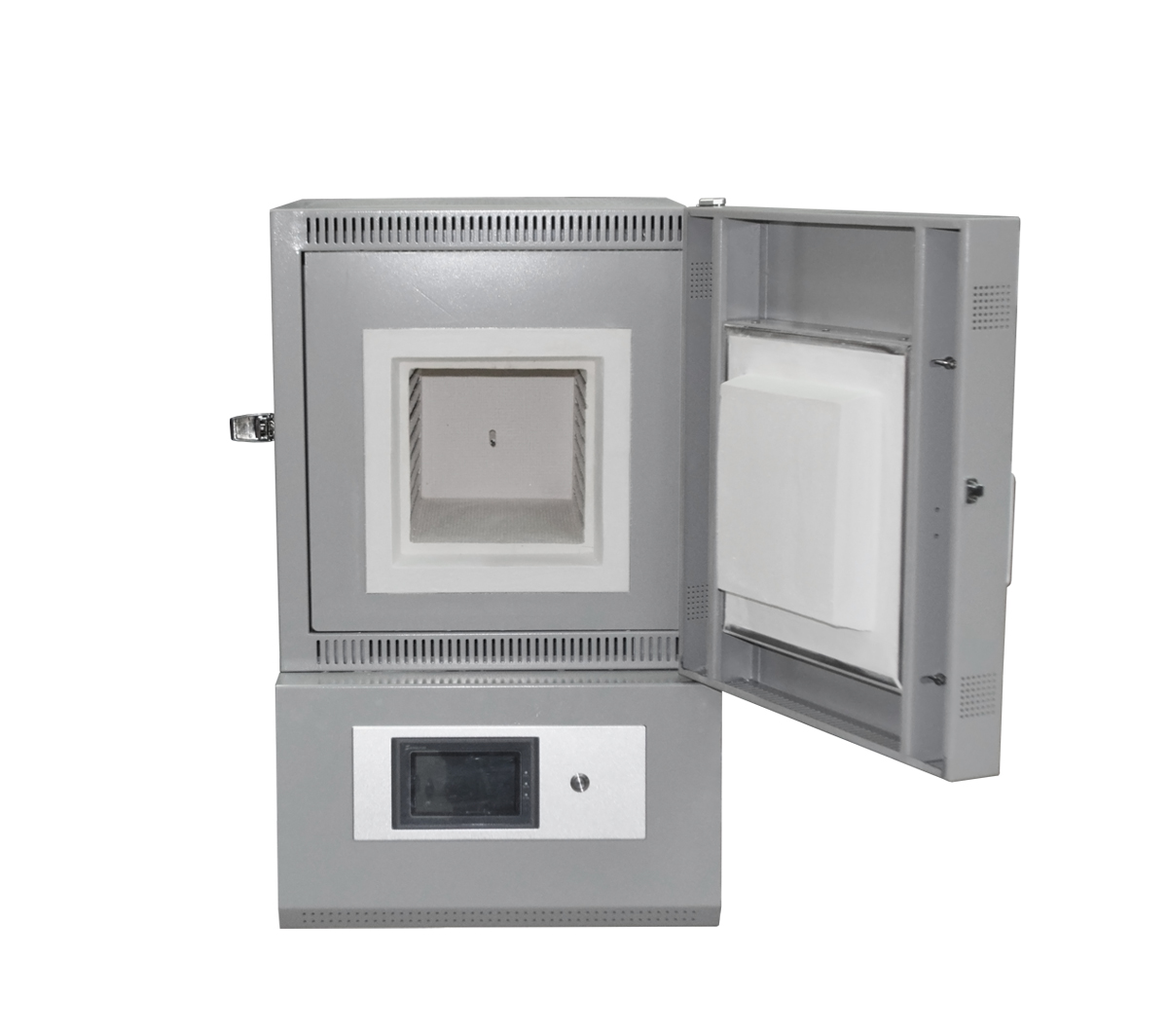

Laboratory 1200℃ Heat Treatment Box furnace with 120*120*130mm Chamber CY-M1200-2L

    The 1200℃ high temperature box furnace is designed for laboratory sample's heat treatment.This CY-M1200-2L box furnace chamber dimension is 120*120*130mm for laboratory using. PID Programmable control with built-in over-temperature alarm and thermcouple failure alarm,easy for operating.



Features

1. LCD touch screen with PID Programmable control

2. CE certified, quality warranty

3. High quality alumina fiber, good heat preservation effect

4. 30 steps Programmable and SCR accuracy temperature control

5. Clear heating element, no color greening changing

6. Low power, energy conservation and environmental protection


Model

CY-M1200-2L

Chamber model

Swing Door

Display

5” LCD Touch Panel

Limiting temperature

1200℃

Working temperature

≤1150℃

Heating rate

Suggestion 0~20℃/min

Temperature accuracy

±1℃

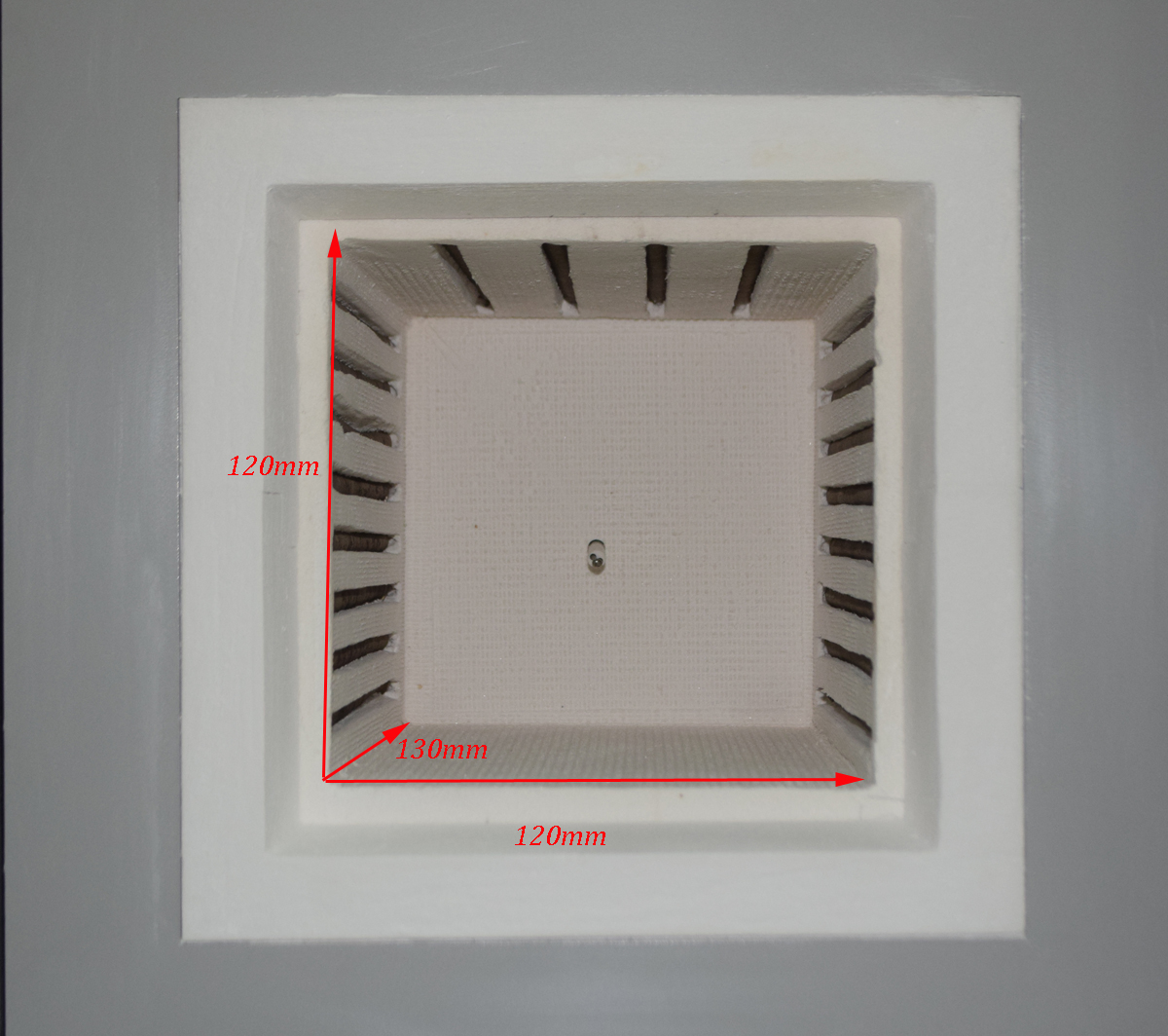

Inside chamber size

120*120*130(mm)

Heating element

Fe-Cr-Al alloy

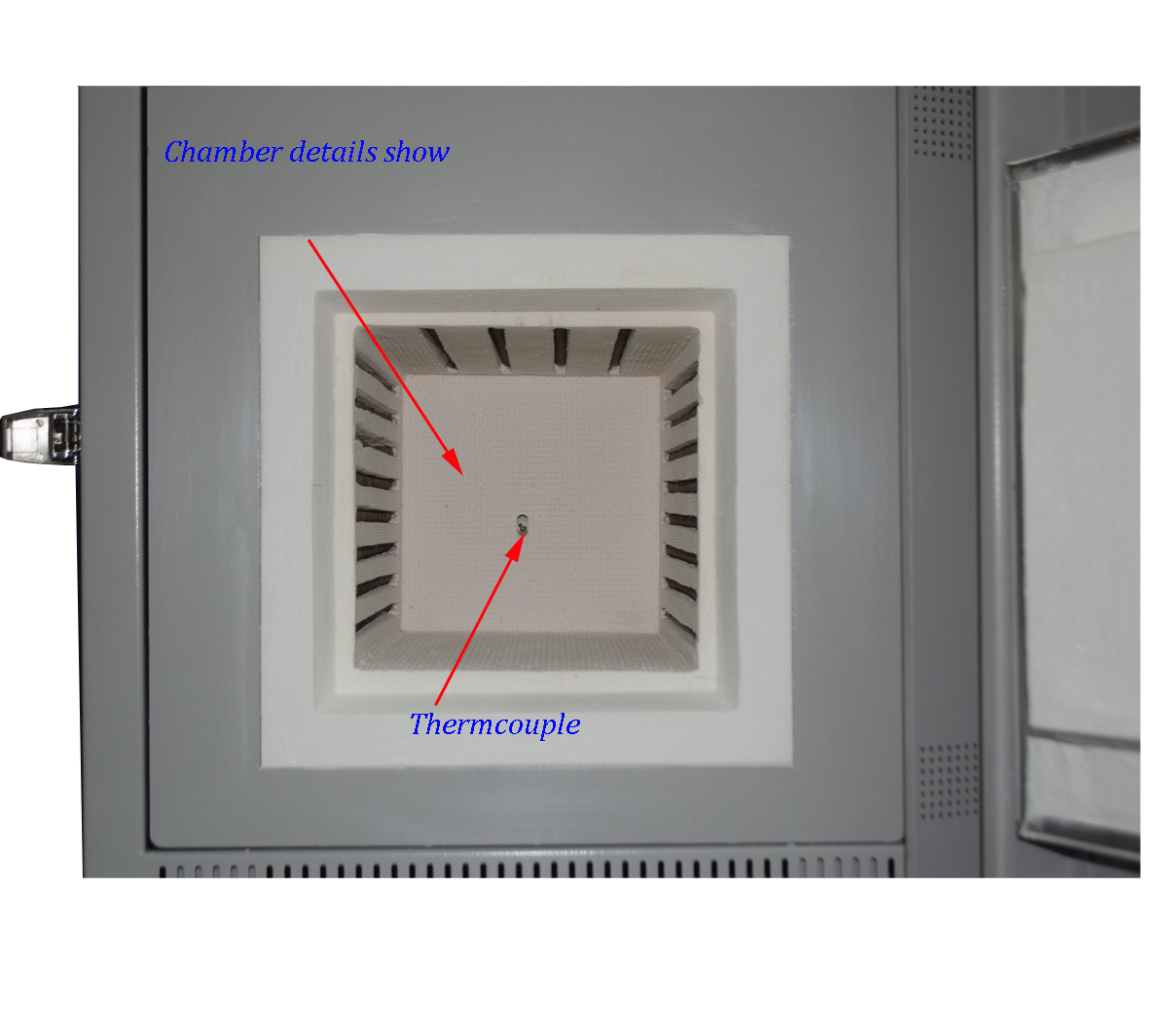

Thermal couple

K Type

Temperature control

PID automatic control via SCR power control

Heating curves

30 steps programmable

Chamber material

Alumina Fiber

Protective

Built-in over-temperature alarm and thermcouple failure alarm

Rated power

2.5 KW

Working voltage

AC 220V, 50-60Hz

Packing

PLY wood box

Accessories

Door block 1 piece,glove 1pair, crucible tongs 1pc, manual book
