High Temperature Atmosphere Controlled Hot Pressing Ceramic Sintering Furnace

High Temperature Atmosphere Controlled Hot Pressing Ceramic Sintering Furnace

    It's suitable for technical research, such as pyrolysis, synthesis, calcination,heat treatment,sintering, etc. under various conditions of atmospheres.

Basic Info


  • Model NO.: CY-1600M

  • Certification: CE, TUV

  • Brand: Cy

  • Oil Free Compressor: 0.4-0.7MPa

  • Ultimate Degree: =< 10-3PA

  • Trademark: CY

  • Specification: 200x200x200mm

  • HS Code: 85141090

  • Type: Ceramic Heating Equipment

  • Structure: Horizontal Type

  • Temperature Measurement Method: Infrared Thermometer

  • Temperature Control Precision: +/-0.5%

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China



Product Description

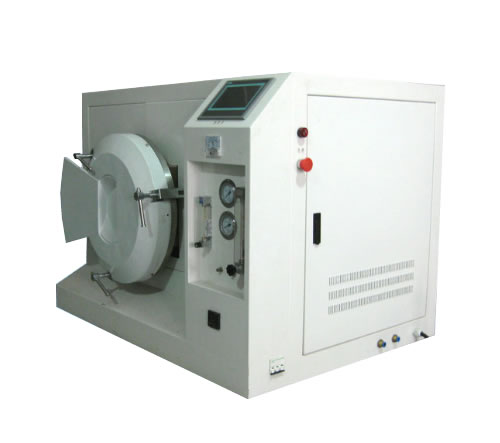

1600°C Microwave Atmosphere Sintering Furnace

Introduction
It's suitable for technical research, such as pyrolysis, synthesis, calcination,heat treatment,sintering, etc. under various conditions of atmospheres.
Specification


PowerVoltage220V 50HZ three phase220V 50HZ three phase
Rated Power13KW15KW
Microwave systemMicrowave output power0.01-4.20KW
Continuously adjustable
0.01-5.60KW
Continuously adjustable
Microwave frequency2.45GHZ+/-25MHZ2.45GHZ+/-25MHZ
Thermal insulation systemUltimate temperature1600C1600C
Continuously working temperature1550C1550C
Heating zone150x120mm(Dia.x Height)180x150mm(Dia.x Height)
Heating rateAverage heating rate  >=40C/min.Average heating rate is >=40C/min.
Temperature control systemTemperature measurement methodInfrared thermometerInfrared thermometer
Temperature measurement range300-1800C300-1800C
Temperature control precision+/-0.5%+/-0.5%
Atmosphere systemStatic ultimate vacuum degree=< 10-3Pa=< 10-3Pa
Control systemAutomatically,manually,
Thermostatically control system,PLC+Touch Screen
40 segments of programmable technical parameters;data storage and export;curve data in real-time display;dynamic data display,one click autostart high vacuum condition40 segments of programmable technical parameters;data storage and export;curve data in real-time display;dynamic data display,one click autostart high vacuum condition
Atmosphere systemVacuum system,two way atmosphere control circuitQuick pre-vacuum pumping,atmosphere options,oxidizing gas,inert gas,weak reducing gas,etc.Quick pre-vacuum pumping,atmosphere options,oxidizing gas,inert gas,weak reducing gas,etc.
Rotary sealingMagnetic fluid
Mute oil free compressor0.4-0.7MPa0.4-0.7MPa
Safety systemMicrowave leakage preventionMicrowave leakage intensity<0.1mW/cm2Microwave leakage intensity<0.1mW/cm2
Magnetron alarmBuilt-in over temperature alarm,over-current alarmBuilt-in over temperature alarm,over-current alarm
Furnace door protection alarmFurnace door shutdown protection switchFurnace door shutdown protection switch
Cooling Water Flow AlarmFlow alarmFlow alarm
Cooling systemHigh precision cooling water machineFlow rate 2m3/h;rated cooling capacity 5.2KWFlow rate 2m3/h;rated cooling capacity 7.2KW
Overall dimensionMain furnaceAbout 2100x2200x2000mm(LxWxH)About 2100x2200x2000mm(LxWxH)
Floor spaceAbout 5m2About 5m2
