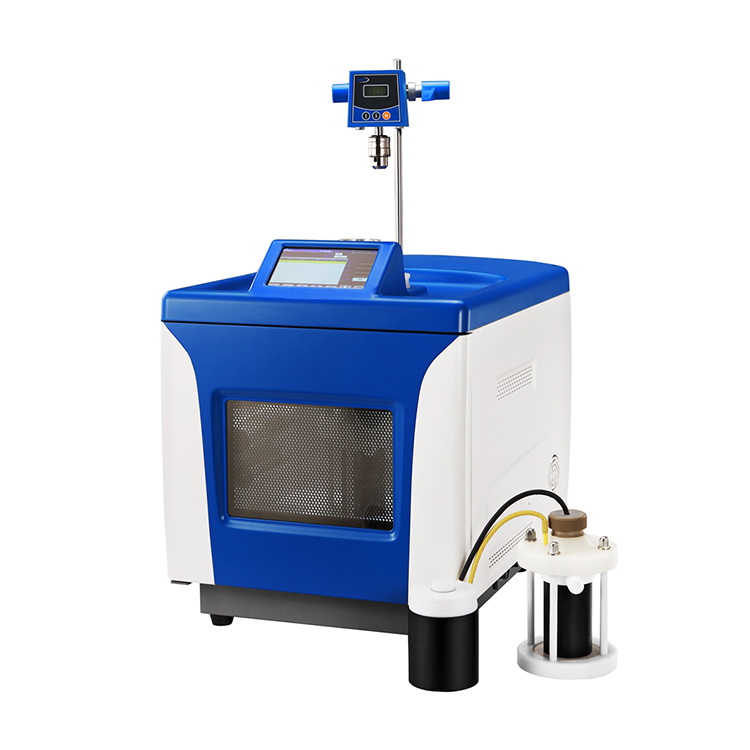

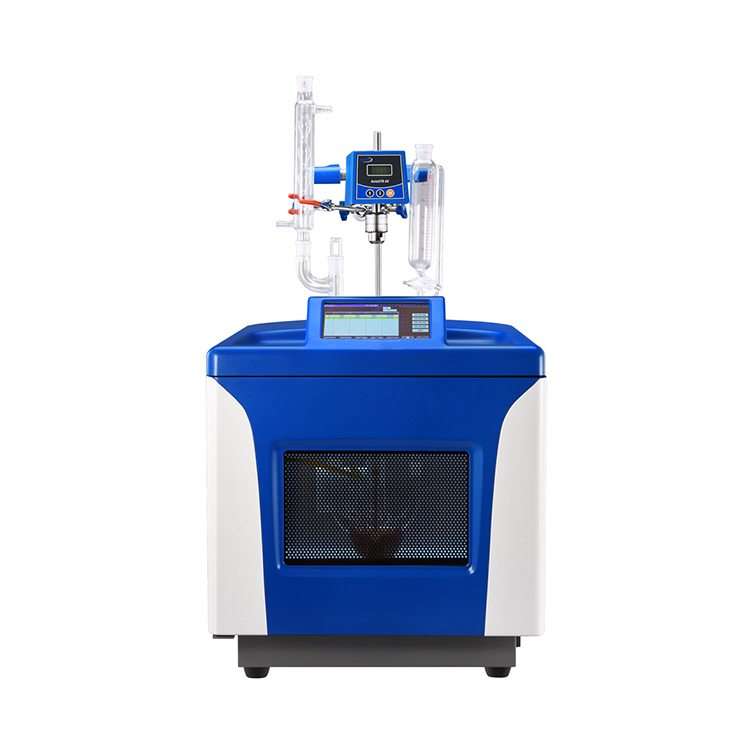

CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation

CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation

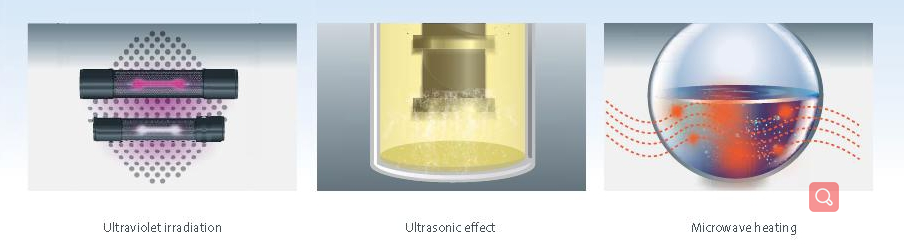

    In CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation, three energy sources - microwave, ultrasonic and ultraviolet irradiation can be free combined and work together,and software control them timing on and off, achieving the synergistic effectby multi energies.

CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation adopts immersion ultrasonic launcher, with an adjustable scope of ultrasound power: 0 - 800W, frequency of 28KHZ, and automatic frequency sweeping and frequency locking; With two sets of ultravioletsource (standard UV lamp power is 300W, dominant wavelength is 365nm, while optional UV lamp power is 100W, and dominant wavelength is 254nm), it can conduct selective photochemical research. CY-Microwave2000 is equipped with multiple reaction vessels, 50-2000ml glass flasks can meet the routine use, and optional multi-standards quartz reaction flasks can meet photochemical reaction under the ultraviolet radiation.

CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation unique advantages:

Good Innovation: Integrate the atmospheric pressure and pressurized reaction, microwave, ultrasonic wave and ultraviolet irradiation and other functions, giving full flexiblility;

High reproducibility: Microwave automatic frequency conversion control, dual temperature control technology, and piezoelectric crystal pressure can ensure the accurate record and representation of each reaction;

Severe safety: Pressurized mode, intelligent safety pressure control system, real-time over pressure alarm and active pressure relief, outer vessel with composite fiber and other safety protection measures at the highest level;

Friendly operation: 7-inch color LCD touch screen, intelligent software,safe and remote control, and reaction process video graphy facility;

Reliable durability: Multi-layer Teflon coating 316L stainless steel chamber and durable reaction container material ensure that all kinds of chemical reactions proceed smoothly;


CY-Microwave2000 Multifunctional Microwave Chemistry Reaction Workstation technical parameters:

Power supply

220-240VAC   50/60Hz 9A

Microwave source

2450MHz, 0-1000W, continuous, non-pulse and automatically adjustable along with the temperature program, PID technology

Microwave oven chamber

Large volume,  316L stainless steel chamber, applied with multi-layer anticorrosive PFA   Teflon spray inside and outside

Temperature   measuring and control system

Dual-channel   temperature detection DTD technology, switchable control. Infrared temperature sensor range 0~900℃, precision ±1℃, PT-100 resistor temperature sensor range 0~250℃,   precision ±1℃

Pressure measuring   and control system

Piezoelectric   crystal pressure sensor, pressure control range: 0~5MPa (750psl), precision of ±0.01 MPa

Working temperature

standard   configuration instrument’s maximum operating temperature is 300℃ and the maximum theoretical   operating temperature is 900℃(peculiar configuration). The standard maximum working temperature of high-pressure   reaction is 230℃.

Working pressure

The standard   maximum working pressure of high-pressure reaction is 2 MPa, with constant   pressure control valve, and constant pressure value of 2 MPa.

UV light source   system

It can be   equipped with two sets of ultraviolet light, with UV power of 300W and the   dominant wavelength of 365nm (standard); UV power of 100W and the dominant   wavelength of 254nm (optional)

Ultrasonic system

Immersion   ultrasonic launcher, with adjustable scope of ultrasound power: 0 - 800W,   frequency of 28KHZ, and automatic frequency sweeping and frequency locking

Stirring system

Digital constant   speed mechanical stirring, with rotation speed of 30 - 1600r/min. It can   realize real-time speed regulation and displays ±10r/grade, with torque of 300 N.m.   It can stir clockwise or anticlockwise; Built-in magnetic stirring rotation   speed of 0~800r/min, speed program is adjustable and of real-time display.

Software system

With Windows software and 7-inch color LCD touch screen, it can make accurate setting and real-time display of various parameters and curves, and can transmit the reaction parameters and curves by connecting with the computer, and record and realize the control or change of each reaction process unlimitedly;

Video system

Color image   recording system is equipped, which can realize real-time display of reaction   process through 7-inch color LCD screen. And it can realize the transmission and recording by connecting the computer.

Interface

USB2.0 Serial   port

Exhaust system

Oven chamber is   equipped with high-speed hot blast fan, with blast capacity of 3m3/min.   3-gear speed change will be made automatically according to the reaction   situation

Atmospheric   pressure reaction vessel

Standard   50~1000ml high borosilicate glass reaction vessel and condensation, reflux,   charging accessories, optional 2000ml high borosilicate glass vessel,   optional 50~1000ml quartz reaction vessel

High pressure  reaction vessel

100ml, 200ml and   500ml TFM high pressure digestion inner vessel, aerospace composite fiber   explosion-proof outer vessel, high-strength alloy frame

Working environment temperature/humidity

0~40℃/15~80% RH

Physical size of whole machine

500*625*580   (Width×depth×height), 48kg
